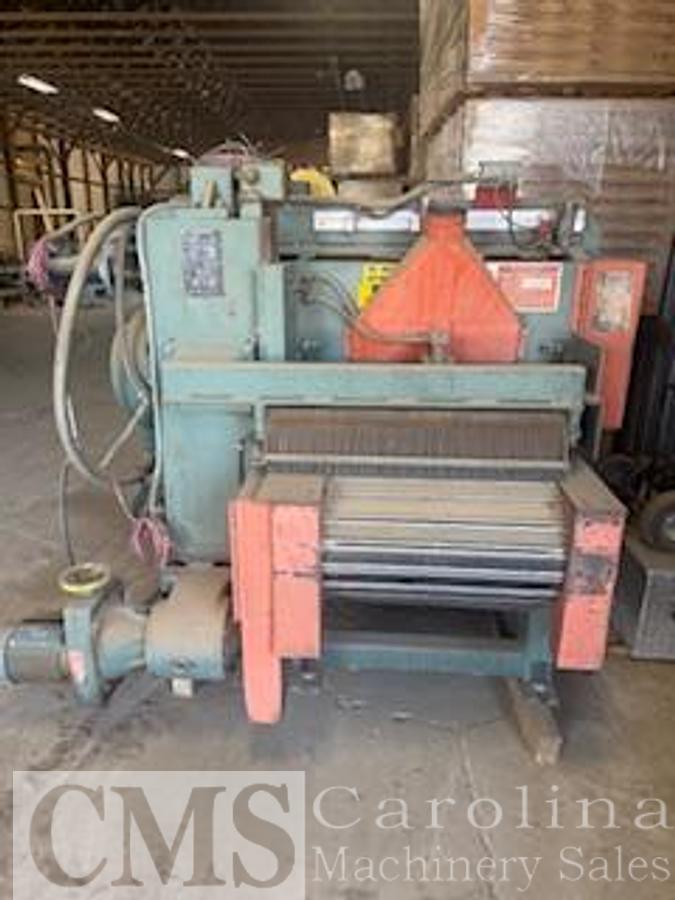

1986 Mereen Johnson 524 DC/SR Gang Rip Saw

Mereen Johnson 424 DC/SR Gang Rip Saw

Well Maintained Saw, ready to ship

Working capacity: 24" Arbor cap., 14" max. dia. tooling, 4" max. motorized thickness adjustment, 29" min. length for glue joint accuracy and 22" min. for busting only, 6" throat.

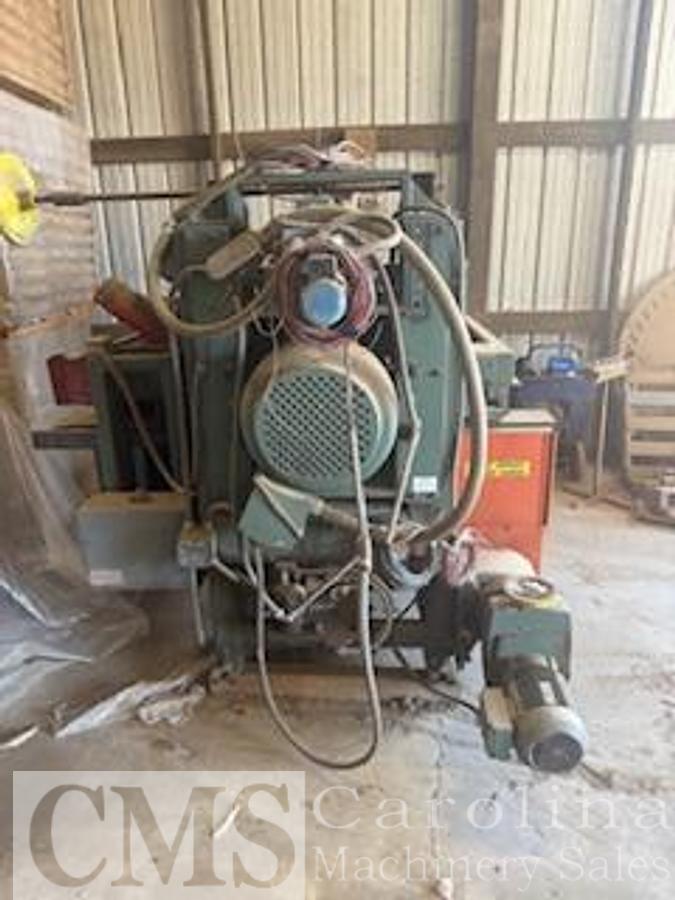

Motor: Equipped with: 50 HP - 3,600 RPM TEFC direct drive motor, arbor with disc brake & load meter, arbor lockout on access door.

Feed & chain: AC Inverter controlled feed drive with feed speeds from 30 to 150 FPM with adjustable jam protection, M-J "Posi-Feed" dip bed carried on 5" pitch hardened double-V chain
