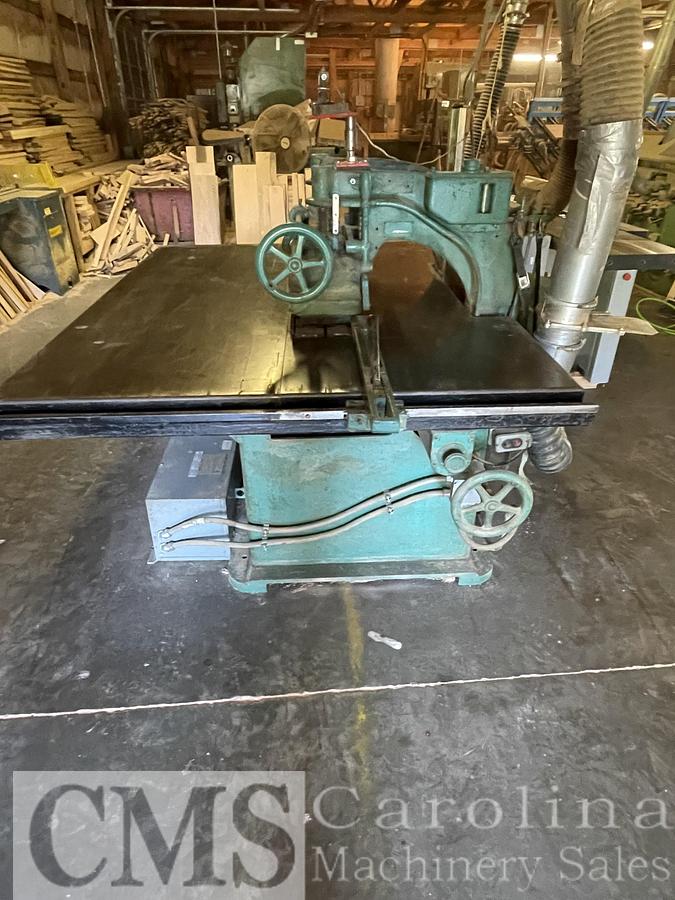

Diehl 750 RB Straight Line Rip Saw

Diehl 750 Straight Line Rip Saw

Manufacturer Specification to be confirmed.

Working dimensions: 19" to right of blade; 30" to left of blade.

Motor: 15 HP arbor motor. 2" arbor with 16" blade; 2-1/2" depth of cut.

Feed: Twin chain drive with 2 HP motor and feed speeds from 55-110 FPM. Auto dip lube. Top pressure system with (6) rollers and (2) split rollers over blade. Antikick back fingers at infeed

working laser

220 volt 3-phase…transformer available to make it 440 volt if needed.

Will need rigger or forklift rental as the lift on site is not big enough.
