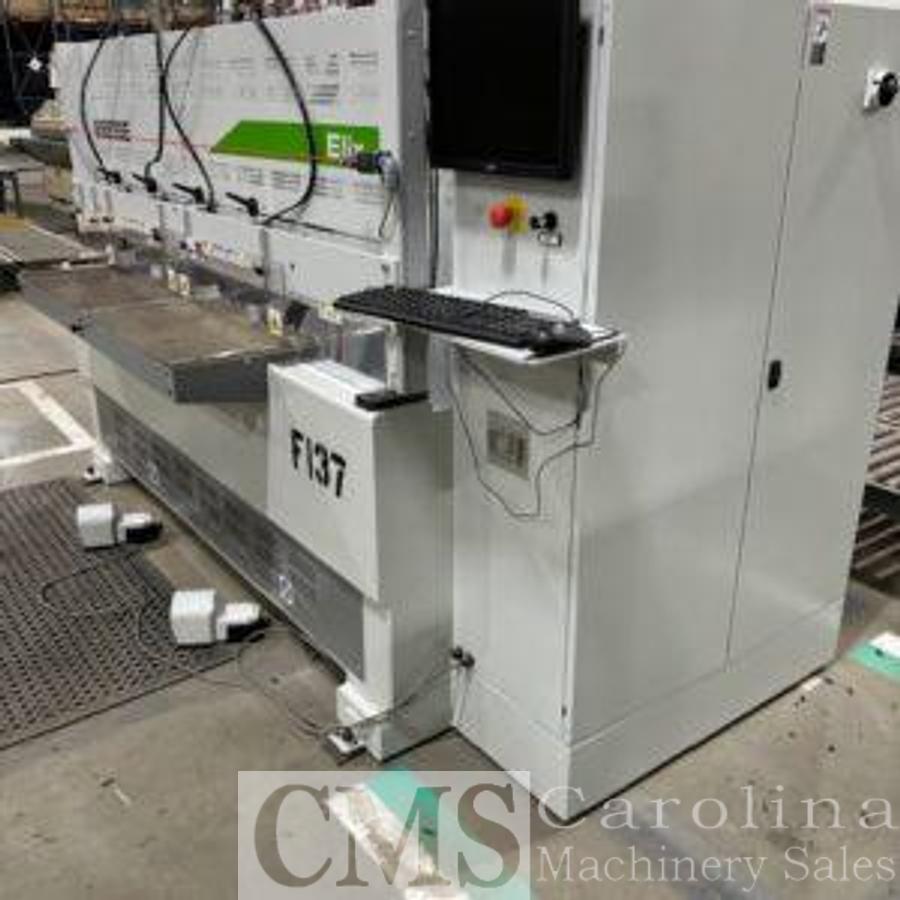

2020 Biesse Elix K3 Bore & Dowel Machine

Max. Width: 51.2″

Thickness: 0.4″ – 1.6″

Min. Depth: 4.7″

X Axis:51.2″

Head Movement Speed: 131.2 ft/min

Z Axis: 1.6″

Boring Unit:

Rotation Speed: 6000 rpm

Depth: 1.2″

Max. Bits Diameter: 0.47″

Modified Dowel Insertion Size: .19″ to .24″

Standard Dowel Insertion Unit:

Standard Dowel Dim: 0.31″ x 1.18″

Max. Dowel Projection: 0.55″

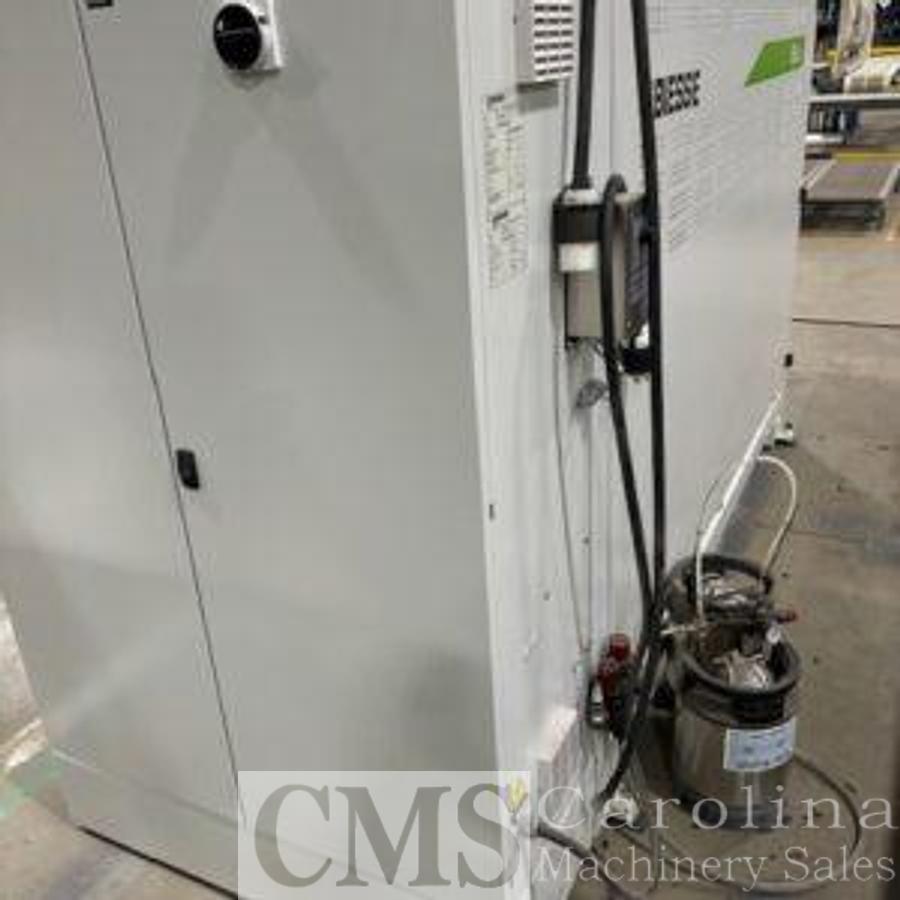

Glue System:

Glue Tank Capacity: 2.1 gallons

Max. Glue Density: 900 cps

Equipped With:

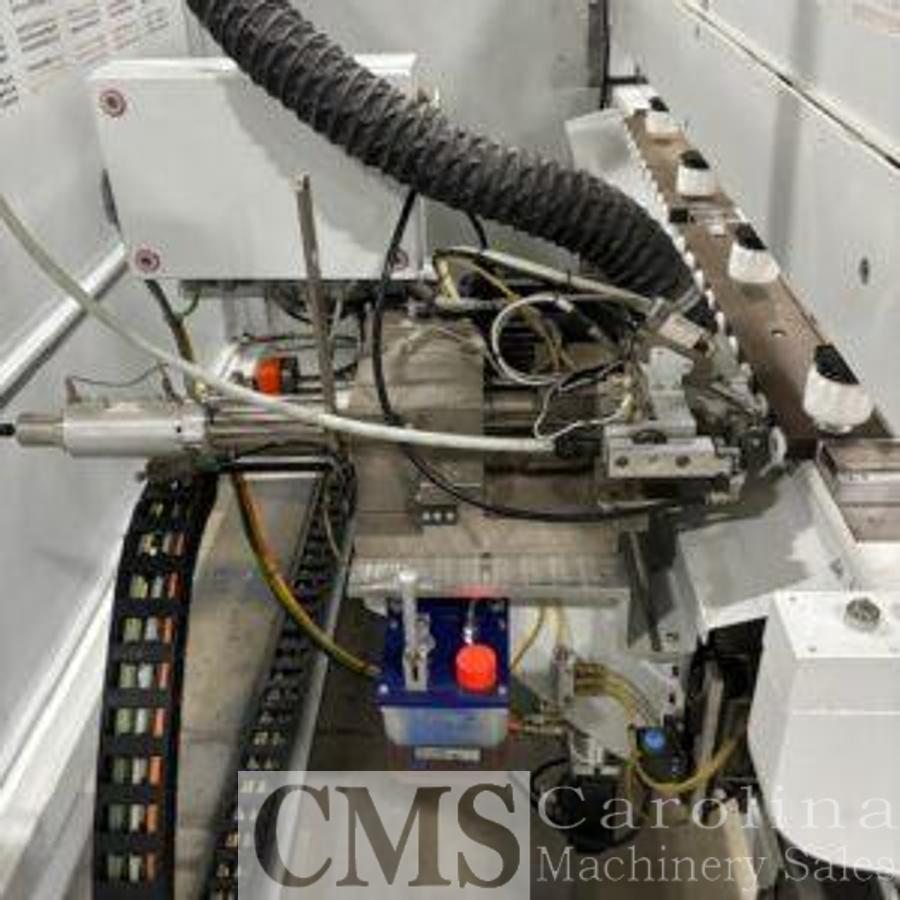

– The Smart-Shot Dowel Insertion Unit

– 2 Sensors to Prevent Dowel or Glue Misfire.

– Dowel Unloading System

– Glue Electronic Proportioning

– Glue Injector Sensor
