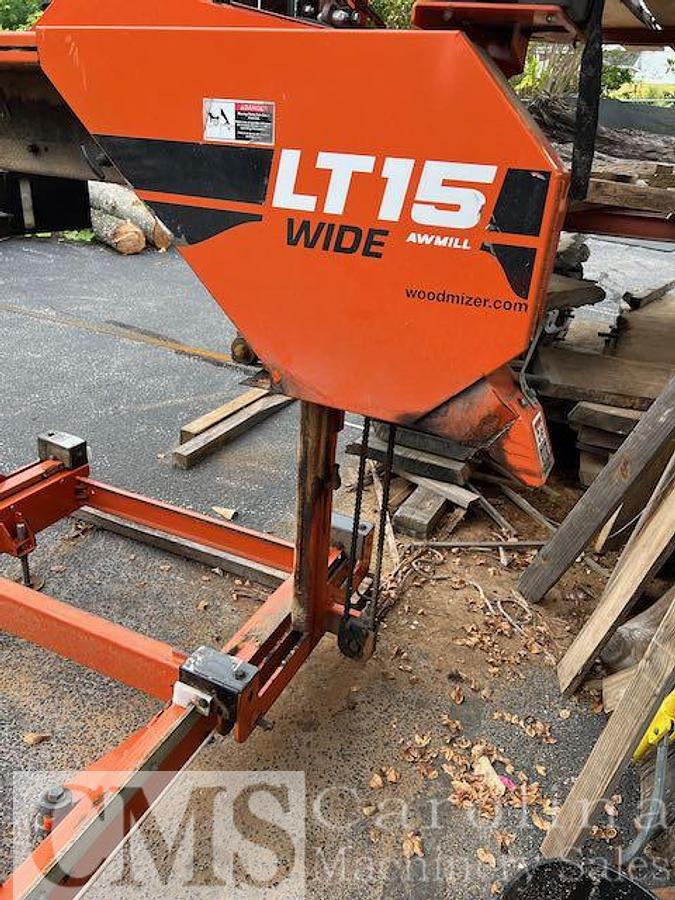

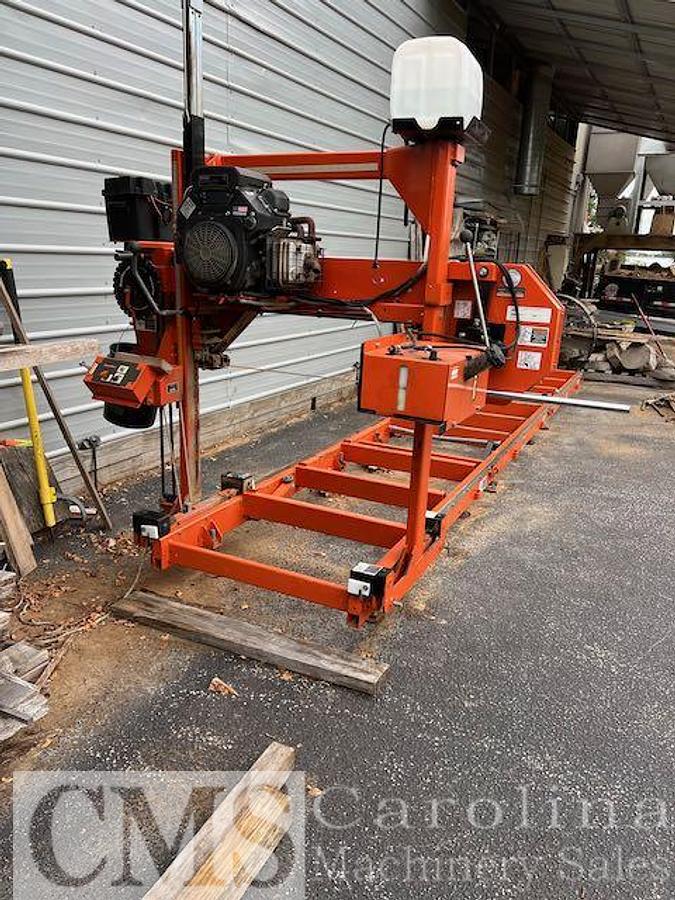

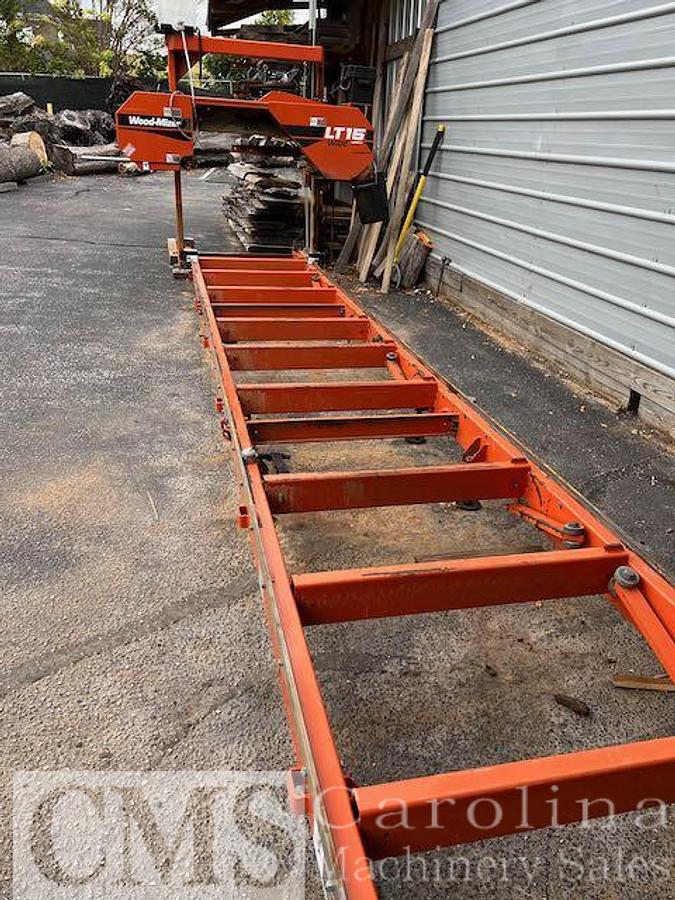

2022 Wood-Mizer LT15 Wide Horizontal Saw Mill

Power Selections

25HP (18.6kW) Kohler gas

Cutting Capacity

Max. Log Diameter   36" (.91m)

Max Cant Width   29" (.73m)

Production Rate   up to 375 bd ft/hr (.88m³/hr)

Max Depth of Cut   10 1/2" (.26m)

Max Log Length   17' 8" (5.4m)

Log Weight   4,400lbs (1,996kg)

Blade

Blade Length   176" (4,470mm)

Blade Guides Style   Roller Guides

Blade Lubrication System   5Gal. (18L) Water Tank with On/Off Valve

Blade Tension System   Cam Easy Tension Handle

Blade Thickness   .042" (1.07mm)

Blade Width   1 1/4" (32mm)

Blade Guides Size   1 1/4" (31.75mm) 1 1/2" (38.10mm)

Blade Wheels

Blade Wheel Diameter   19" (483mm)

Blade Wheel Type   Belted Blade Wheels

Head Features and Options

Operator Location

Head Forward/Reverse   Crank Feed

Power Feed

Head Up/Down   Hand Crank

Blade Engagement   Manual Lever

Blade Guide Arm   Adjusted with Manual Lever

Bed Features and Options

Side Supports   6 Reinforced Side Supports with heavy duty rollers

Log Turning   Manual

Log Loading   Manual

Log Clamping   2 Adjustable Log Clamps

Machine Dimensions and Requirements

Mobility   Stationary

Delivery Methods   Pallet

Shipment Weight   N/A

Weight (heaviest power option)   1,530lbs (694kg)

Length   20' 4" (6.2m)
