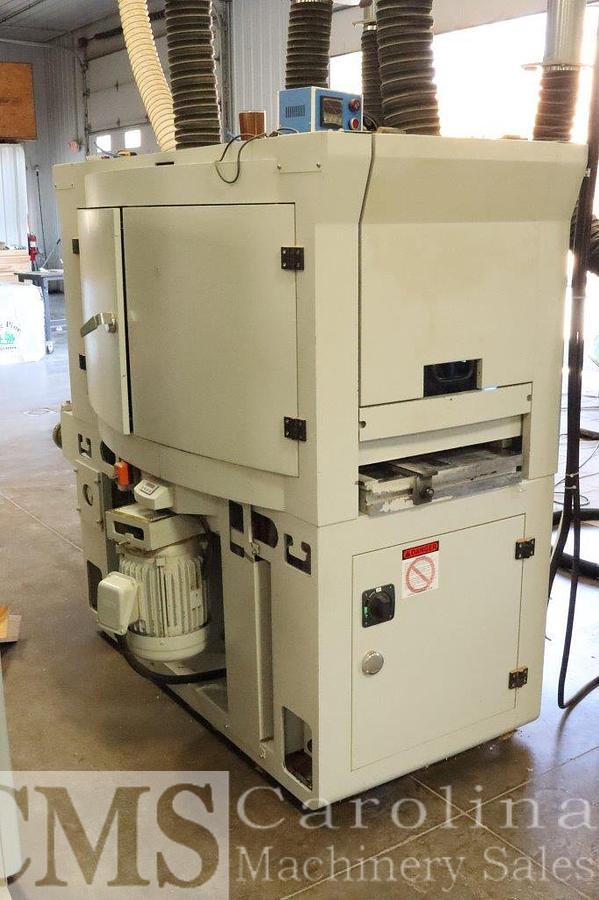

Castaly WP 4L V4 4 Suded Planer

Castaly WP 20L-V4 4-Sided Planer

• Width: ¾” to 20”
• Height: 3/8” to 5” (WP-20L5), to 8” (WP-20L8)
• Length: Maximum Unlimited, 20”
• Maximum Cutting Depth; Top & Bottom Heads 1/2”, Side Heads 1”
• Top and Bottom Cutter Heads Motors each: 15 HP, 5,000 RPM
• Right & Left Side Cutter Motors each: 10 HP, 5,000 RPM
• Variable Feed speeds from 20 to 65 FPM by VFD (invertor)
• Feed is powered by (2) each 2 HP VFD feed motors, (1) motor drives the top infeed and (1) Motor drives the top outfeed feed rolls. Top powered feed rolls are air cylinder loaded / Floating. (4) idle bottom infeed feed rolls and (4) idle bottom outfeed rolls

480 volt 3- phase
