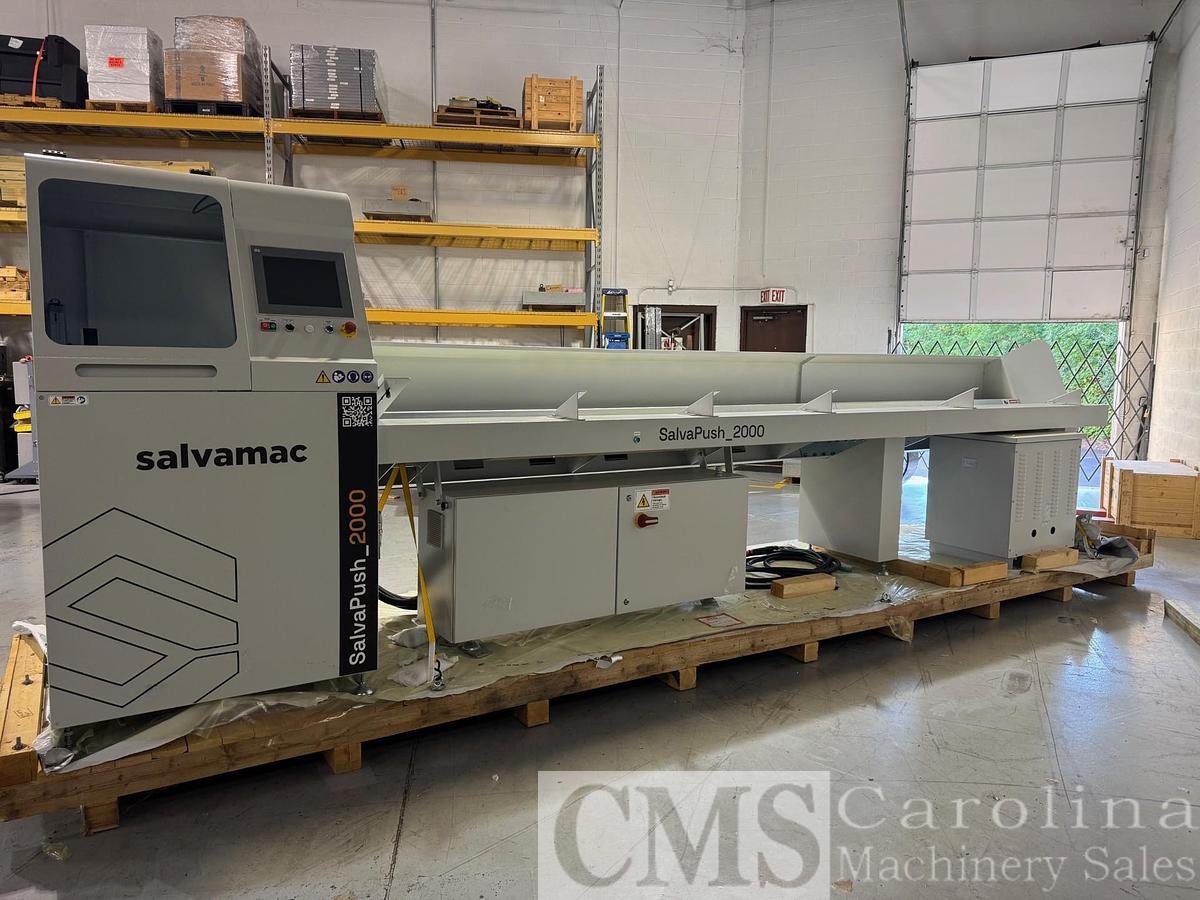

2024 Salvamac Salvapush 2000 Optimizing Saw

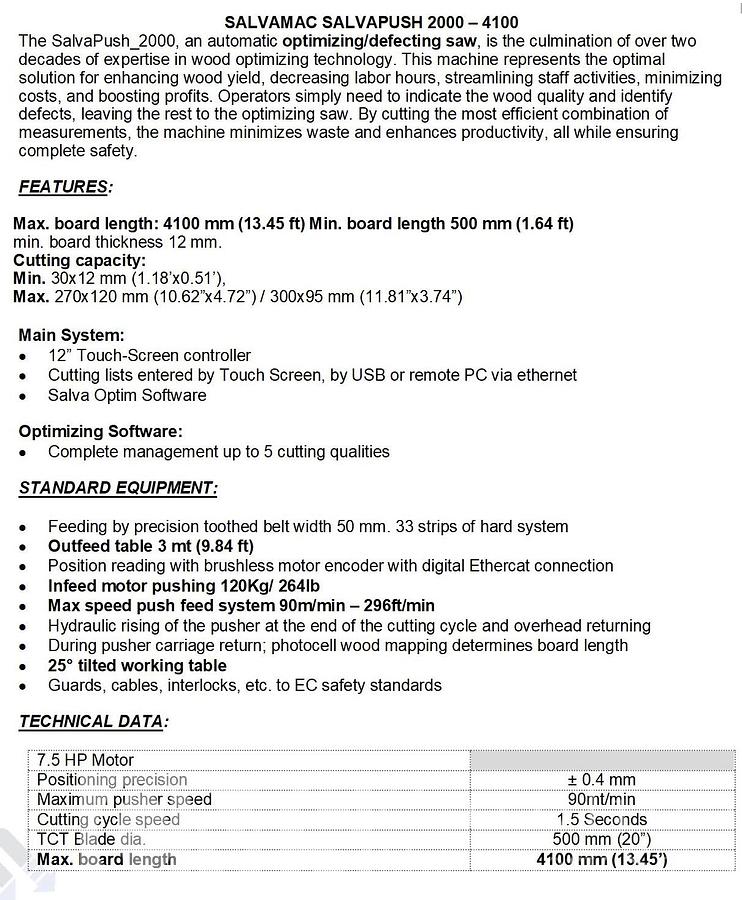

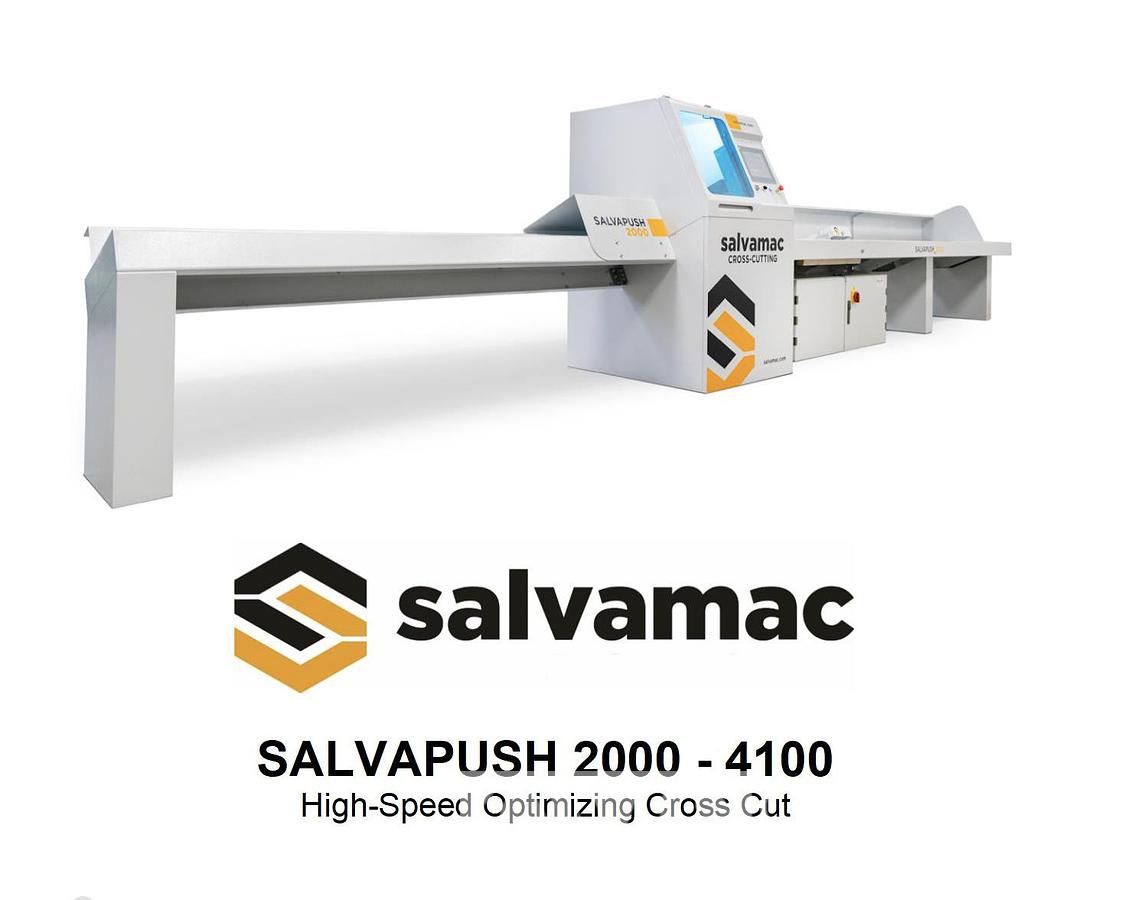

Salvamac Salvapush 2000-4100 Optimizing/Defect Saw

Max. board length: 4100 mm (13.45 ft) Min. board length 500 mm (1.64 ft)

min. board thickness 12 mm

Blade : 500mm (20”).

Cutting capacity:

Min. 30x12 mm (1.18’x0.51’),

Max. 270x120 mm (10.62”x4.72”) / 300x95 mm (11.81”x3.74”)

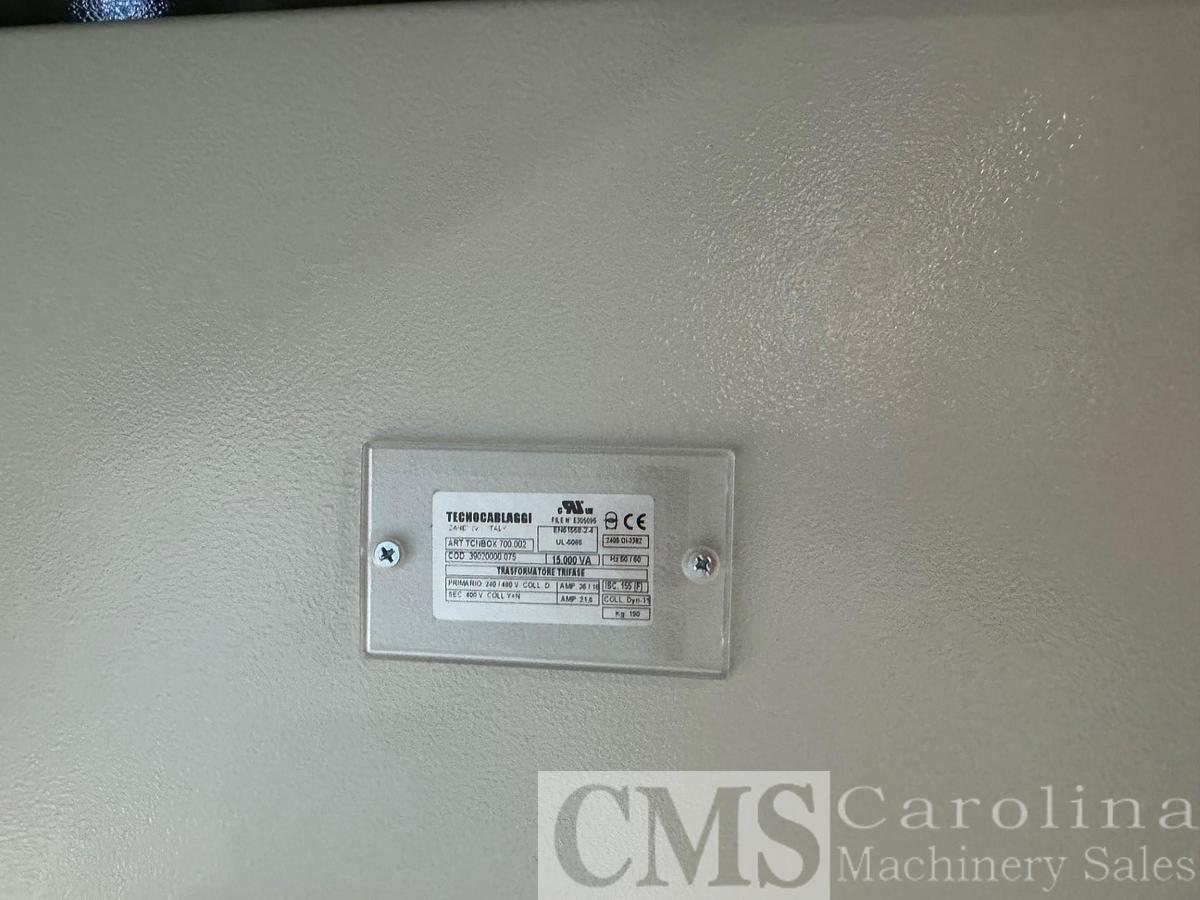

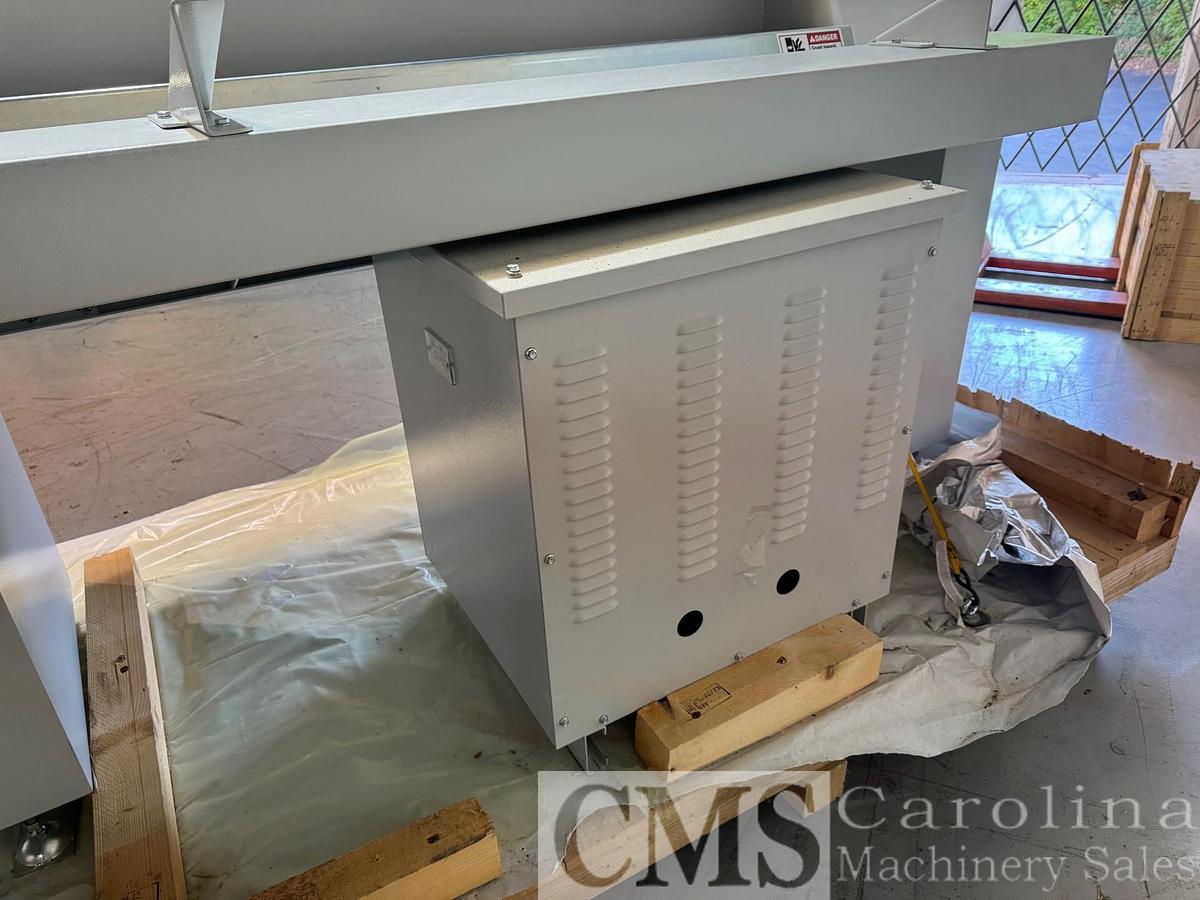

240v/480v 3 phase with transformer

•           Feeding by precision toothed belt width 50 mm. 33 strips of hard system

•           Outfeed table 3 mt (9.84 ft)

•           Position reading with brushless motor encoder with digital Ethercat connection

•           Infeed motor pushing 120Kg/ 264lb

•           Max speed push feed system 90m/min – 296ft/min

•           Hydraulic rising of the pusher at the end of the cutting cycle and overhead returning

•           During pusher carriage return; photocell wood mapping determines board length

•           25° tilted working table

•           Guards, cables, interlocks, etc. to EC safety standards
