2005 Giben SPT 3000 Rear Loading Panel Saw

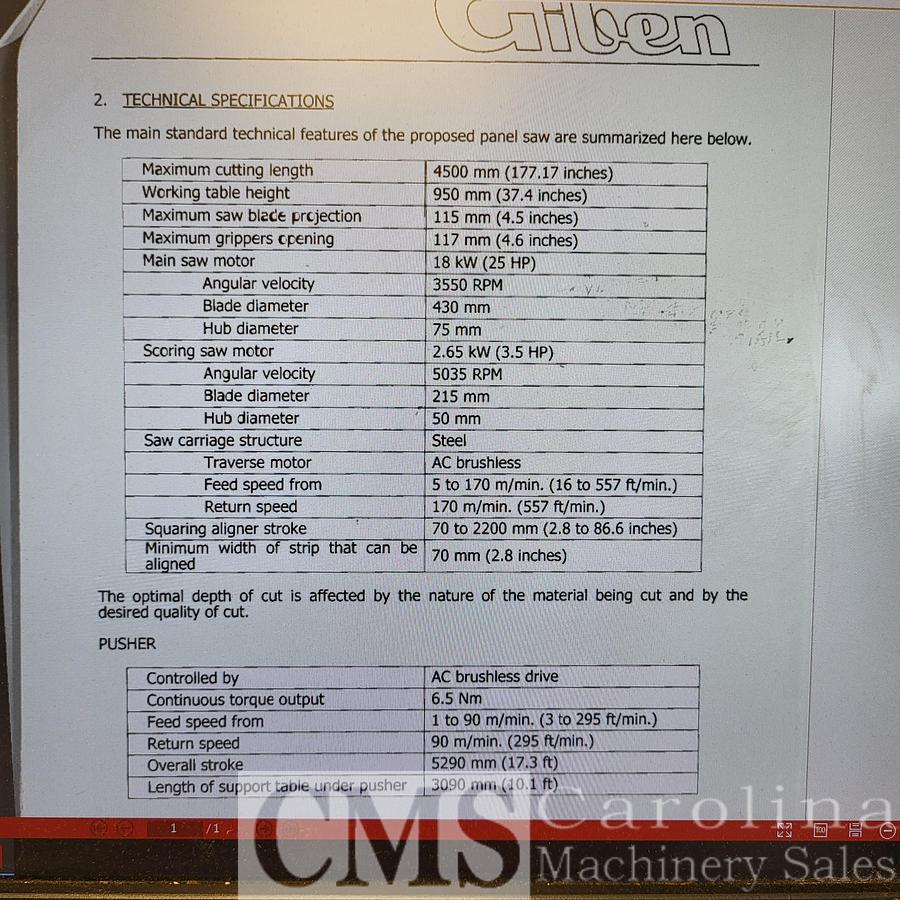

Giben 14' Rear Load Panel Saw Model Y-3000 SPT/MR

4500mm (177.17") cut line

115mm (4.5") blade projection

25HP main motor

3.5HP scoring motor

430mm (17") main blade

Automatic saw blade height adjustment according to book height being cut

215mm (8.5") scoring blade

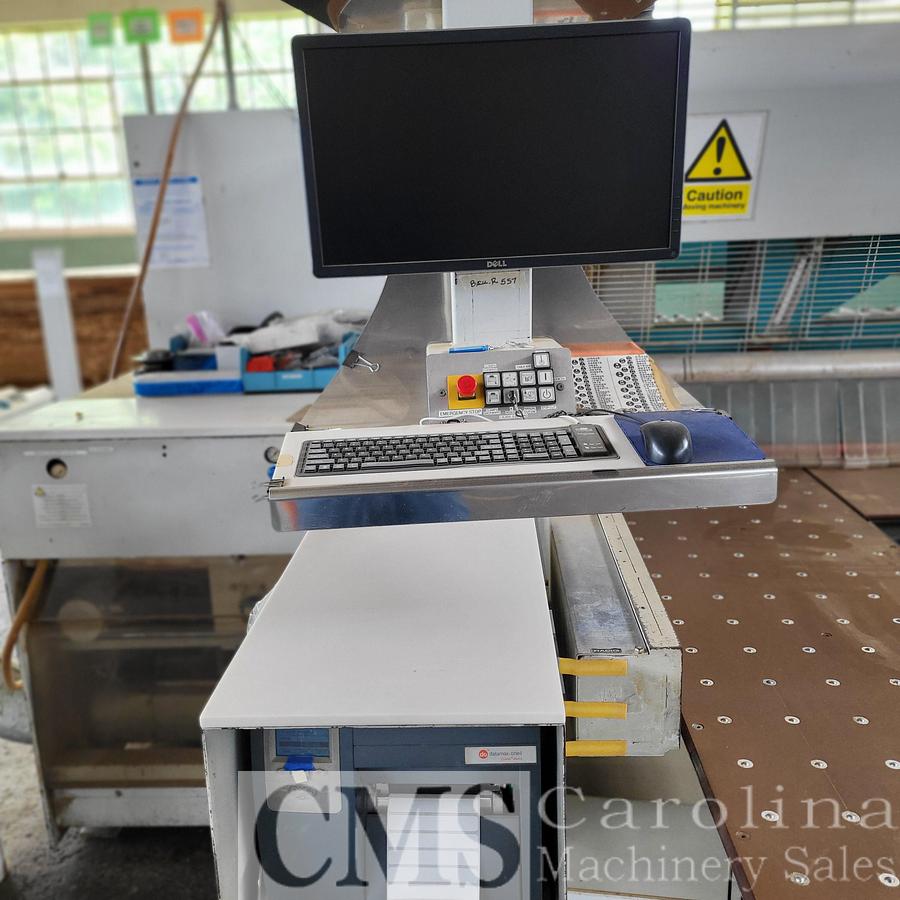

Remote scoring adjustment from the G-Drive controller

Saw carriage advance 5 to 170m/m (16 to 558ft/min) and return at 170m/m (558ft/min)

Double independent automatic pre-positioning side aligner to 2,200mm (86.5")

AC Brushless pusher drive on precision rack and pinion

Speed; by program at 1 - 90m/m (3' to 295'f/min) Advance and Return

Full length double pressure beam

Rapid blade change without need of tools

Automatic blade height adjustment by book height

Laser light at the cut-line with centering cut option

Transparent base covers

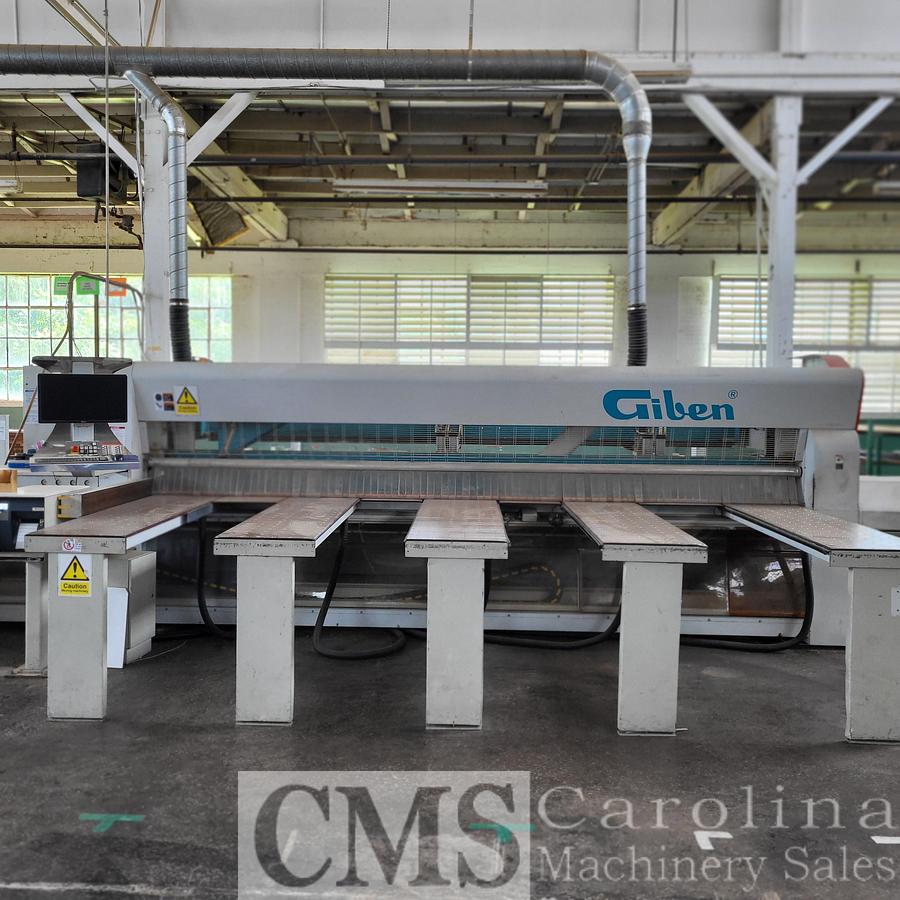

4 fixed air tables 2000mm X 510mm (78.5" X 20")

           1 melamine sliding shelf 510mm X 510mm between the first 2 tables fence side

Remote scoring adjustment from control panel

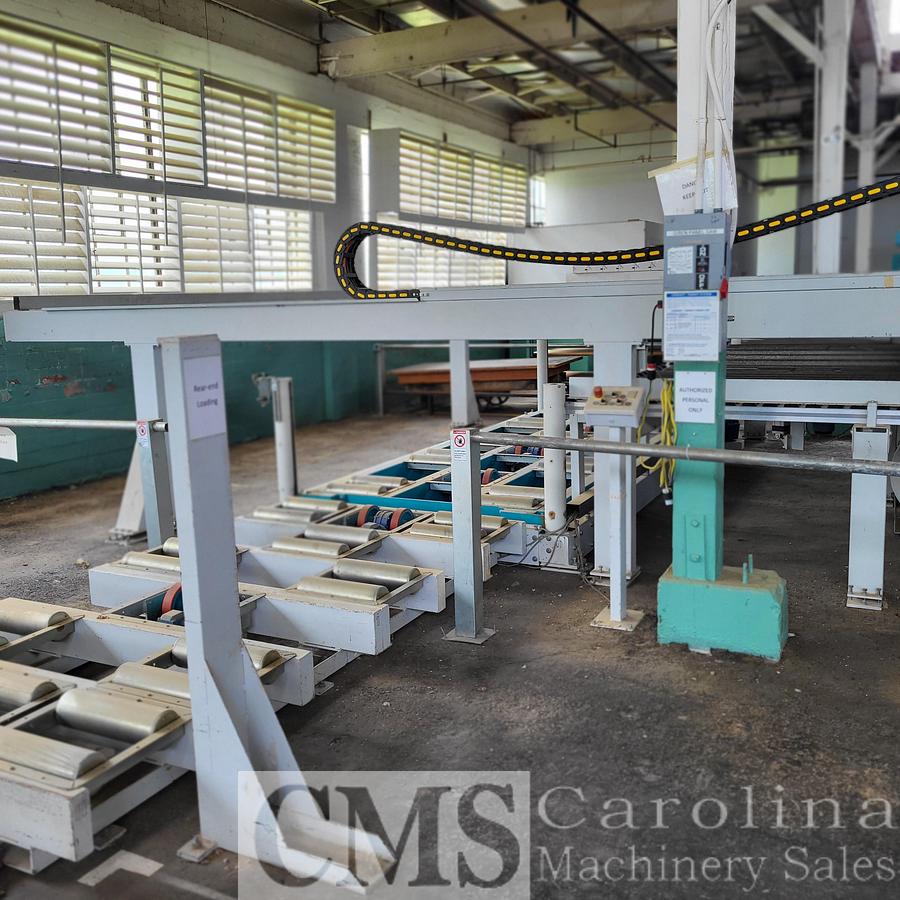

Lift table 3800mm X 1600mm (149" X 63") with transport by motorized pods

Double speed (1.4m/m) lift table raising and lowering

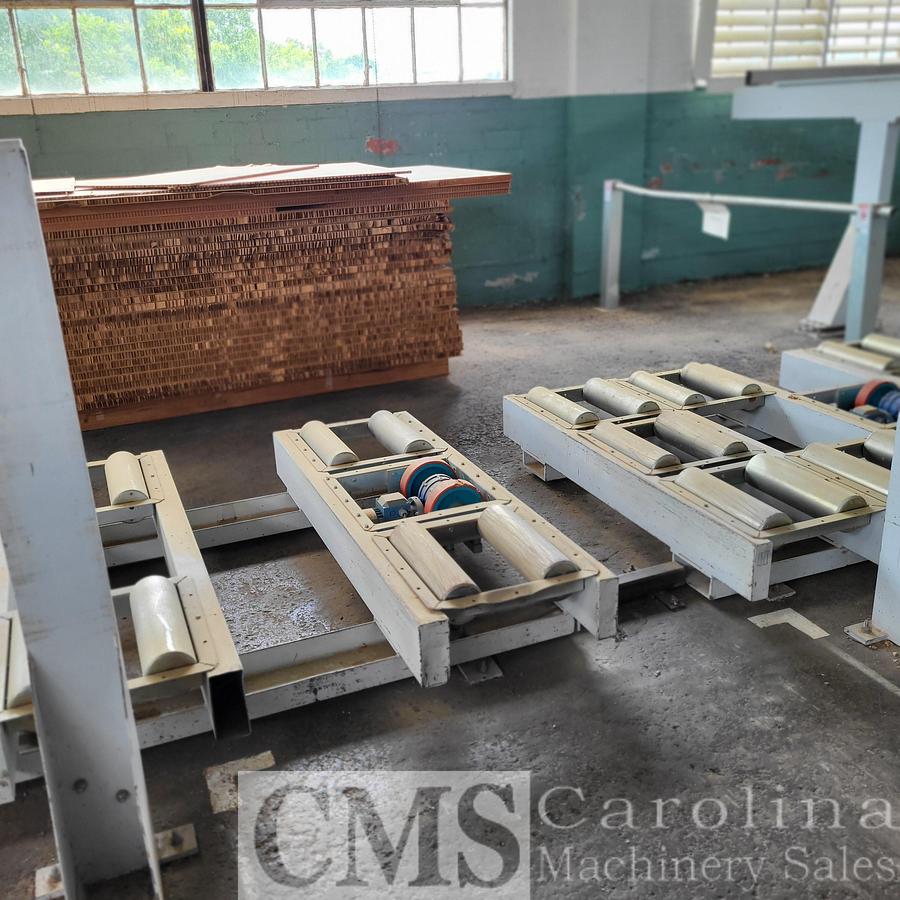

Powered side in-feed and out-feed conveyor with bunk stops

Raising blocks to raise the machine 220mm (8.6") to allow loading of bunks up to 800mm (31.5")

2 disappearing front aligners for alignment of books coming from the lift table
