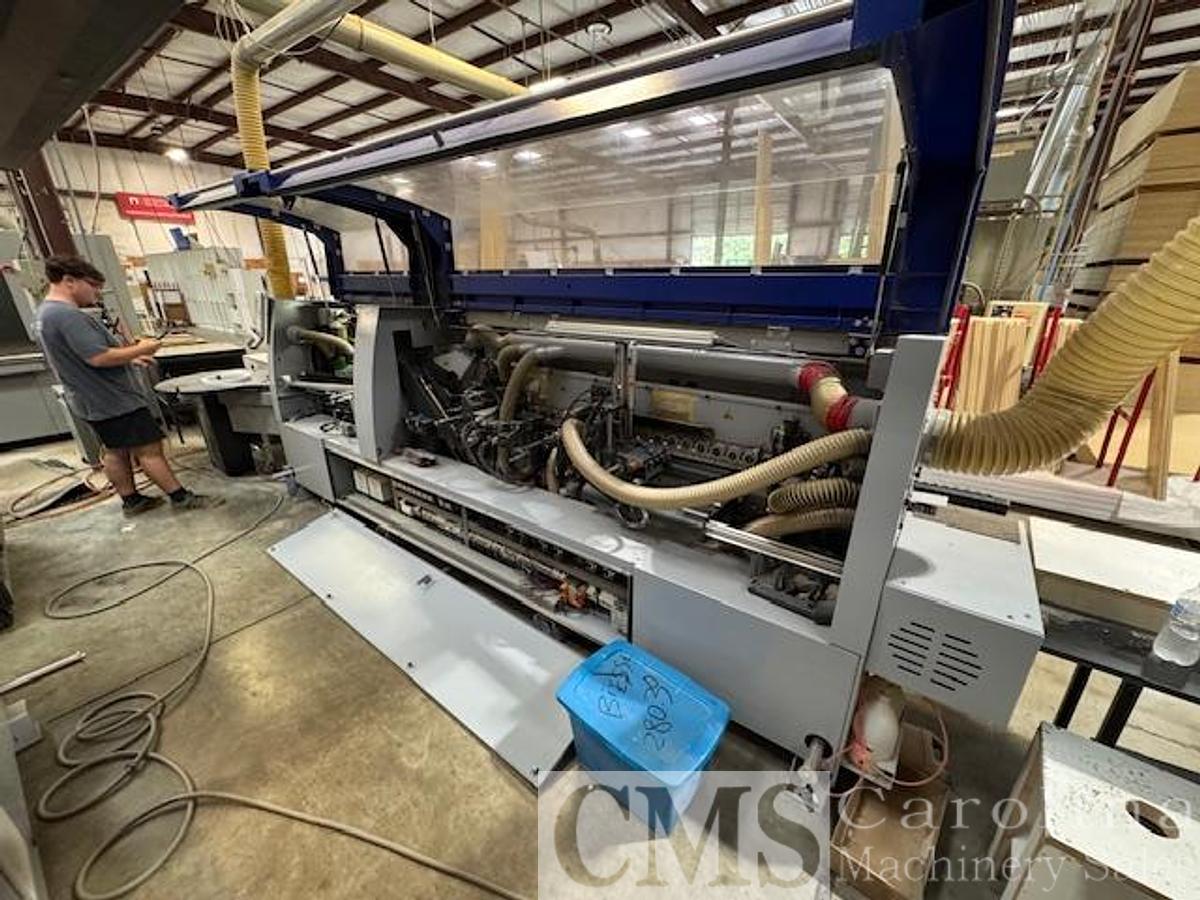

2015 Felder Perfect 710 E-Motion Edgebander

Technical data:

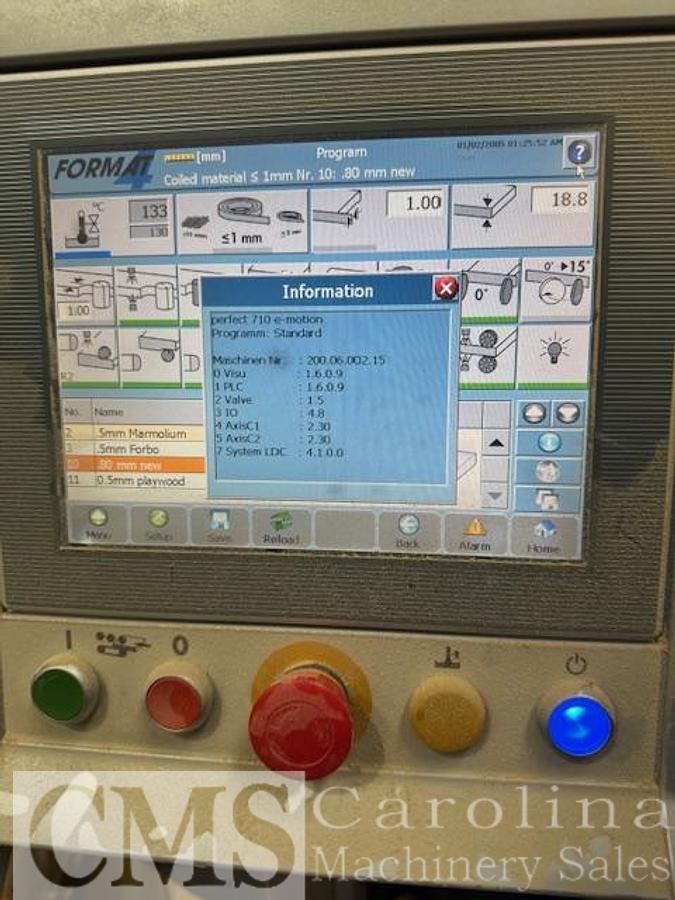

Control unit with 10.4" touch color screen

Extendable workpiece support

motorized - position-controlled pressure beam

chain feed with 12m/min feed speed

Roller support plate with ball bearings d = 770 mm

2 motorized joint milling unit / 2 x 1.1 kW

Edge feed for roll and strip material 0.4 - 10 mm (edge detection via infrared sensor)

Teflon-coated gluing unit

Pre-melting unit for EVA glue

Replacement gluing unit for EVA

Replacement gluing unit for PU

motorized positioning-controlled pressing unit

2 motorized cross-cut saw unit / 2 x 0.50 kW

2 motorized multifunctional units for radius, flush and chamfer trimming / 2 x 0.75 kW

Corner processing unit

Radius scraper

Surface scraper

2 motorized polishing unit (buffing wheel)

Spraying unit for release agent on the machine infeed side

Spraying unit for cleaning agent in front of the polishing unit
