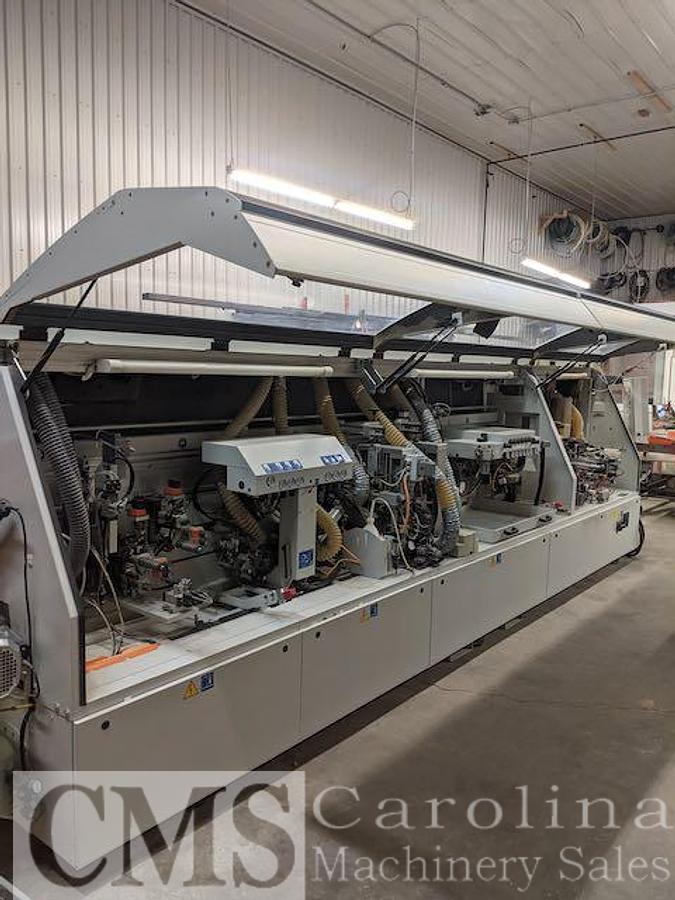

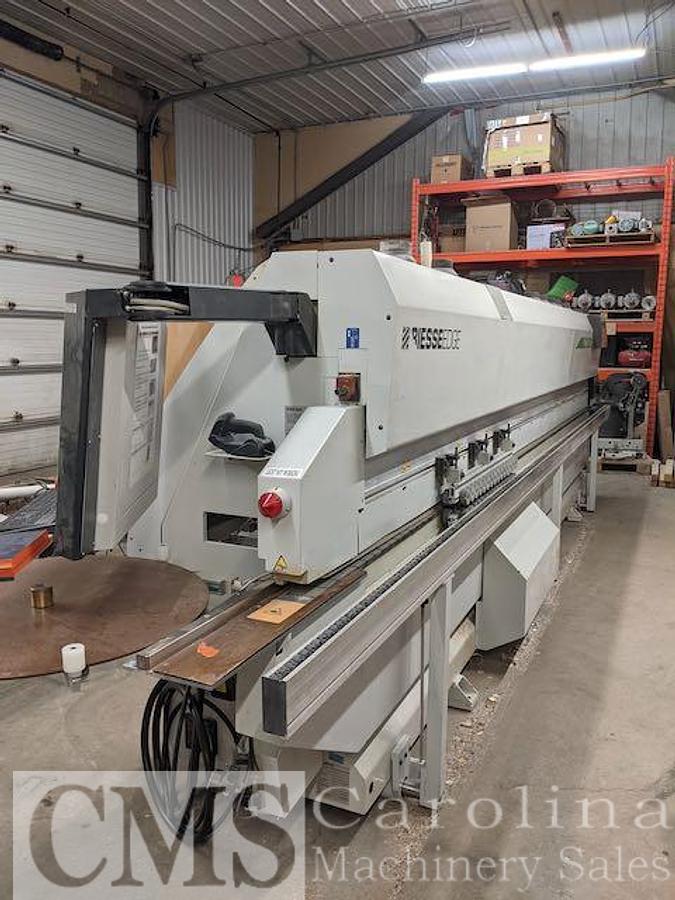

2014 Biesse Roxyl 5.5

Capacity;

Edge thickness; strips (0.4 - 22mm)

Edge Thickness; coiled stock; (0.4 - 3mm)

Panel thickness; 10 - 60 mm (0.39 - 2.36")

Work piece width min.;85 mm (3.34")

Work piece length min.; 140 mm (5.51")

Feed speeds 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 65 FPM)

Machine Layout

Motorized top beam positioning

Adjustable infeed fence

Pre-Milling Station "FL-502": (2) LH & RH Rotating NC controlled spindles with automatic center positioning.

Infrared Heating Lamp: Preheating workpiece edge to ensure best possible surface adhesion

EVA (Hot Melt) gluepot, equipped with quick pre-melting

2 Coil Magazine

Pressure Section: Servo controlled programmable pressure section with (1) large driven roller and (4) idle rollers.

End Trimming; Front & rear trimming motors, swivel to 0° - 15° bevel, programmable pneumatic change

Rough Trimming (first set);  Top/Bottom pre- or flush trimming motors

Fine Trim/Bevel/Radius Trimming; Servo controlled, pneumatic pre-positioning of motors

Corner Rounding; (2) Motor corner rounding

Profile Scraping; Top/Bottom 2-axis NC programmable knife positioning

Glue Scraping; Flat, top/bottom, digital positioning indicators, pneumatic controlled positioning

Buffing; Top & Bottom buffing motors with 150 mm (6") cloth buffing wheel. fully adjustable

Hot air blowers

Overhead belt hold down

Centralize lubrication system

External multitap transformer
