2019 Weinig Eagle 700 Moulder

Working capacity: width 3/4" x 9-1/16”; thickness 7/16" x 6-1/4" and

Motors:  Bottom 10 HP, Right / Left 20 HP, Top 15 HP, Top 20 HP and Bottom 10           hp. Electronic brakes all motors.

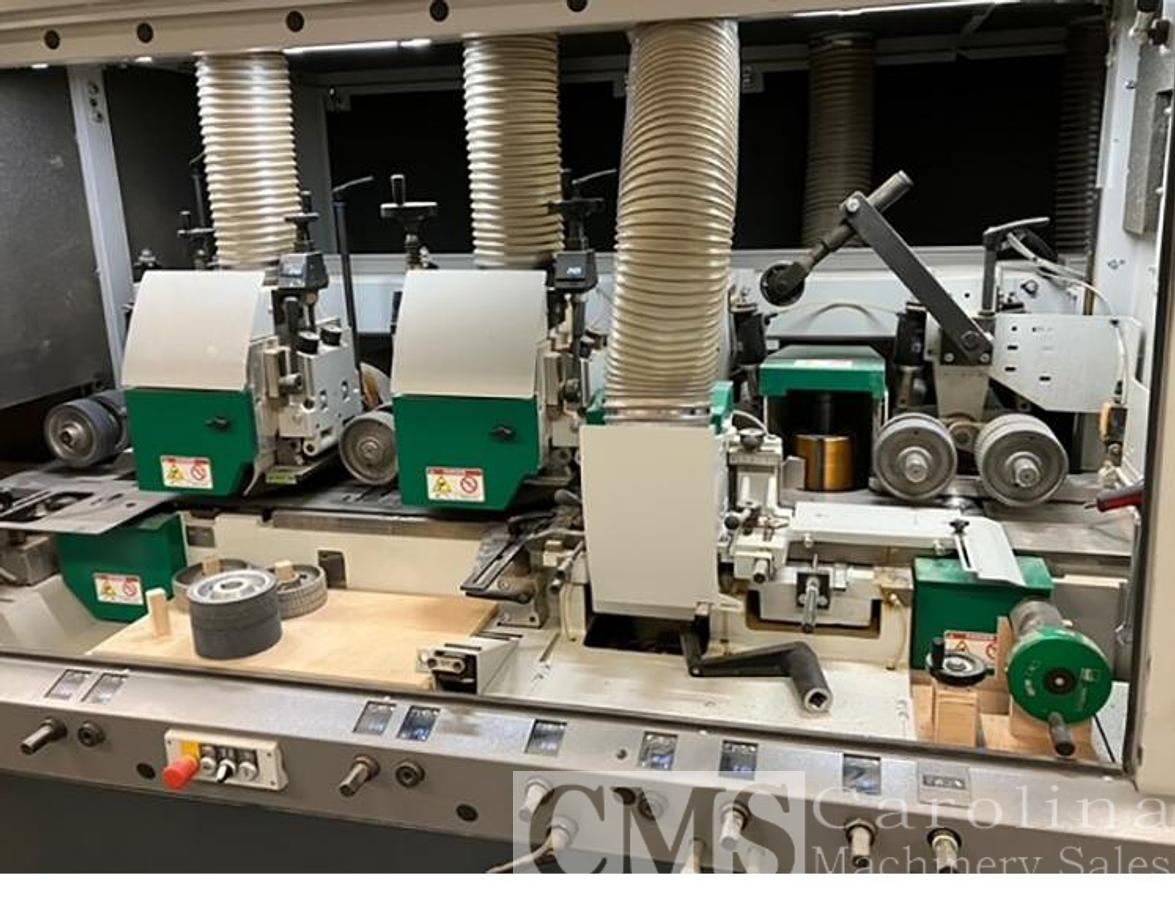

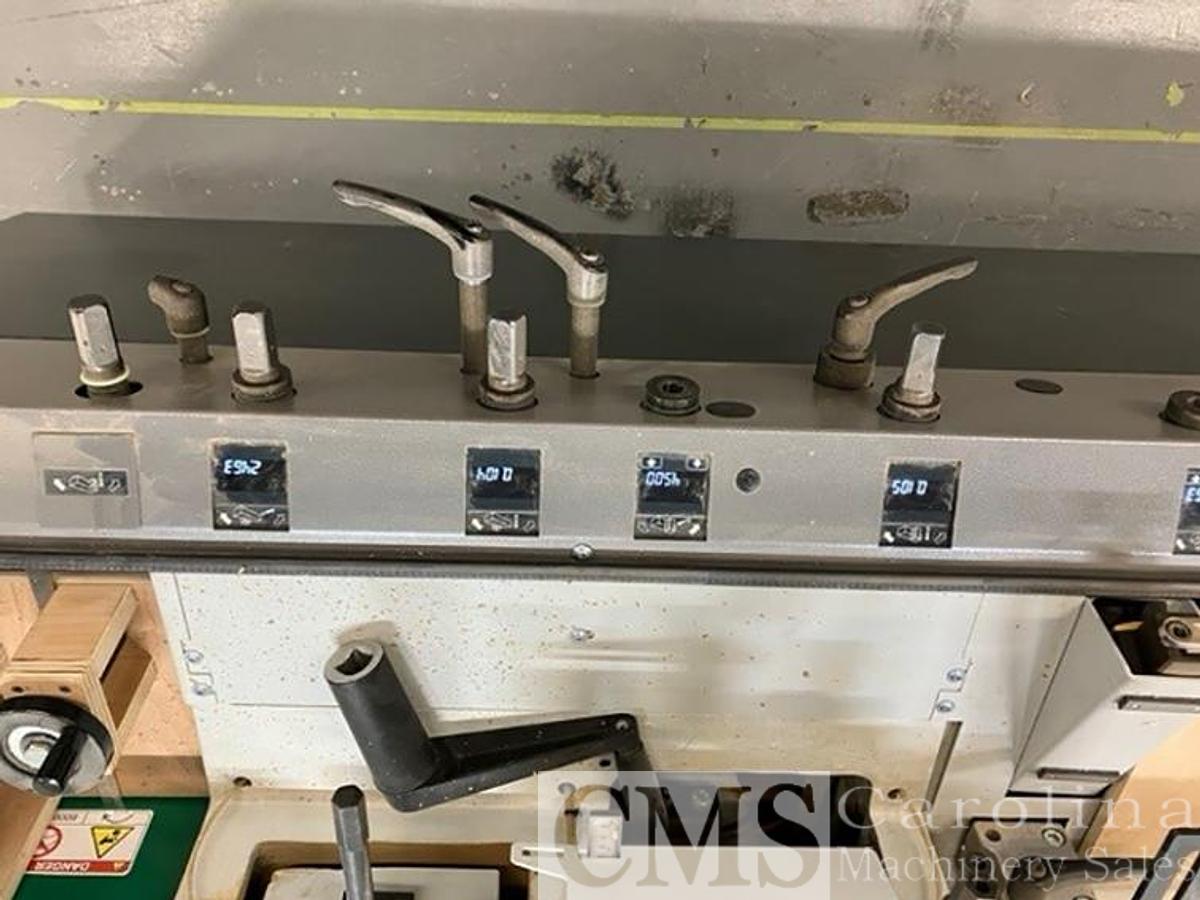

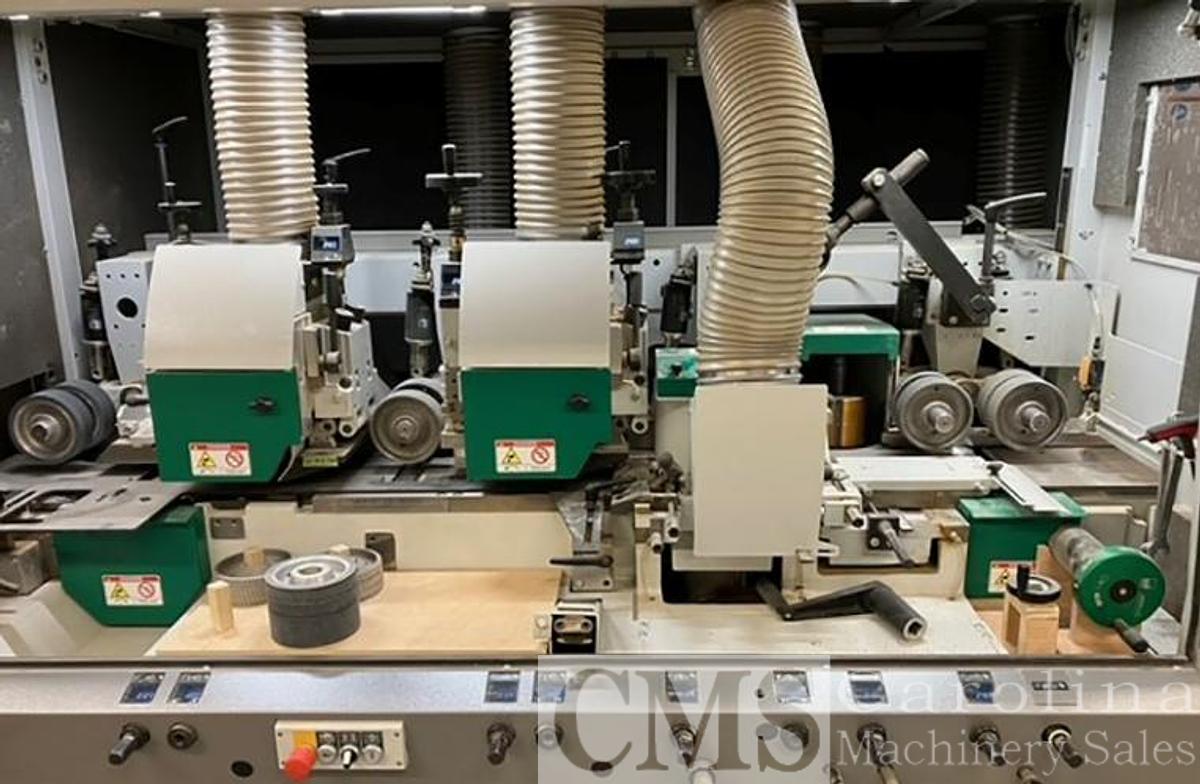

Spindles: Dia. 1-13/16" with rotation at 7,000 RPM spindles 2-6.                       Comfort Set Readouts and scales with digital "Clear" readings for all             tool and machine settings. All spindles, chipbreakers and pressure              elements. Split Pressure shoes on both Top spindles with easy set               adjustment on the spindle plane. "ServoLock" quick change spindle nut           removal.

Settings: Weinig "PowerCom Plus" - Profile and ToolData management. Touch          Screen graphic. Central start of all motors. 10,000 profile storage.              Computer data link with Weinig for service and trouble shooting.

Feed:    Variable speed invertor drive 6.5 HP with feed speeds from 18-85 FPM.           (2) Powered table rollers in the table between top spindles full wid and           (1) 2" powered table roller at out feed. Roller (2) spring loaded opposite          right spinlde

Infeed/Tables: 2 M (6’6’) infeed with side pressure roller. Chromed tables and            fences. auto table lubrication pump. Central lubrication from frontside           of machine

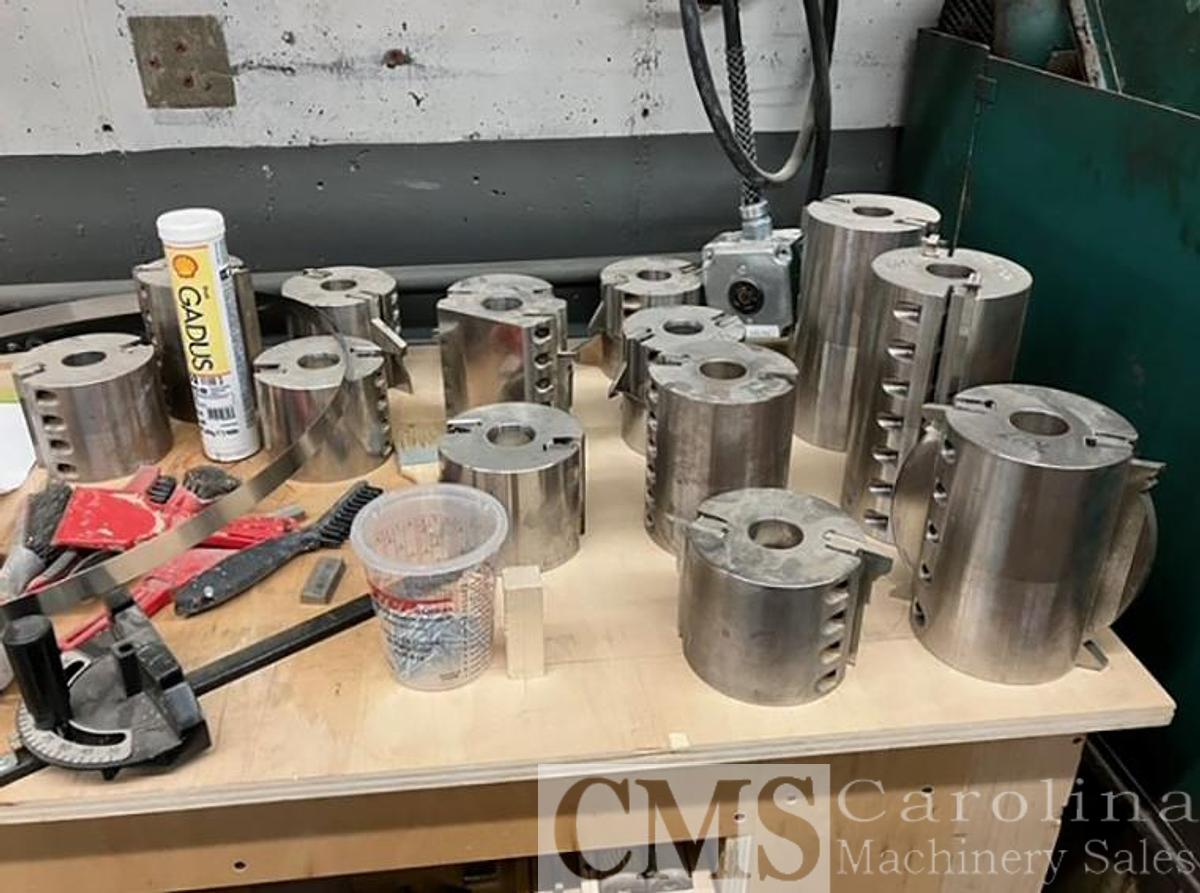

Includes: Manuals and set up tools. (18) Heads available. Weinig OCMS measuring  stand for tool measuring

460 volt 3-phase

low hours

Shipping Footprint:16 (length) x 7 (width) x 7 (height)Weight:7500 lbs
