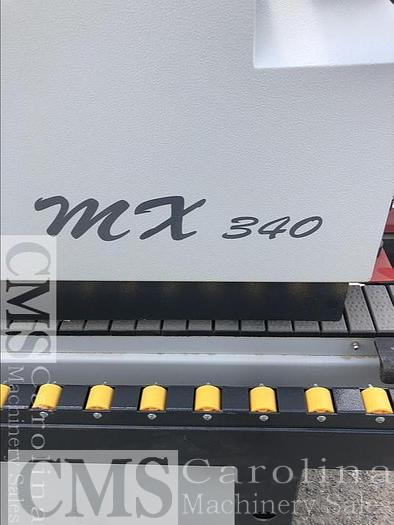

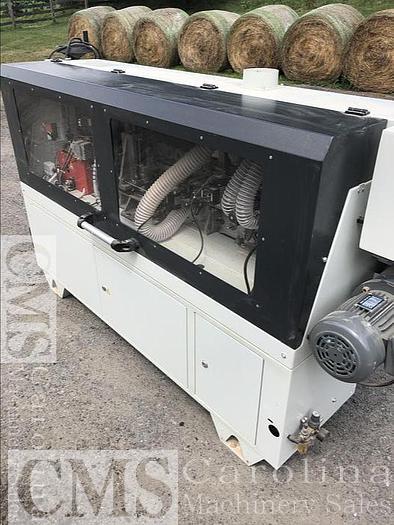

2019 Cantek MX340 Edgebander

Location

Northeast US

orCall 704-288-1904

Specifications

ManufacturerCantek
ModelMX340 Edgebander
Year2019
Stock Number008646

Description

Manufacturer specs:

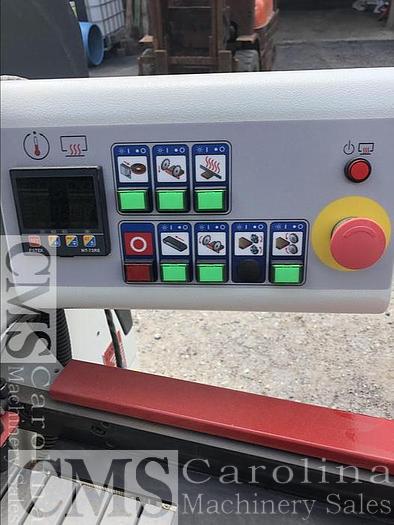

PLC control system with LED display and keypad

Work-piece is fed by chain

Edge coil support plate: Ø 800 mm, for PVC/ABS

Edge feeding is Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed

Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.

Teflon-coated hot-melt glue pot

Spring loaded pressure unit with (2) pressure rollers

High frequency 12000 RPM end trimming unit, with Ø100 mm TC-Saw blades

High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming

Radius scraper with 2mm radius

3000 RPM top & bottom buffing units

Heavy duty pressure beam with extendable work-piece support

Heated infeed fence for pre-heating the panel for optimum glue penetration


Feeding speed 9 meters/min.

Panel thickness 8~45 mm

Edge thickness 0.4 ~ 3 mm

Min. panel width 100 mm

Min. panel length 210 mm

Working table height 850 mm

Dust collection outlet Ø 127 mm (5”)

Electrical consumption 5.5 KW

Electrical requirement 15 amps (Voltage must be +/- 5%)

Voltage 230/3/60

Machine weight 520 kgs

Machine dimensions 2950 x 1370 x 660 mm
