1981 Weinig Hydromat 22 BL with R931 Grinder

Location

Wisconsin, USA

orCall 704-288-1904

Specifications

ManufacturerWeinig
ModelHydromat 22 BL with R931 Grinder
Year1981
Stock Number008640

Description

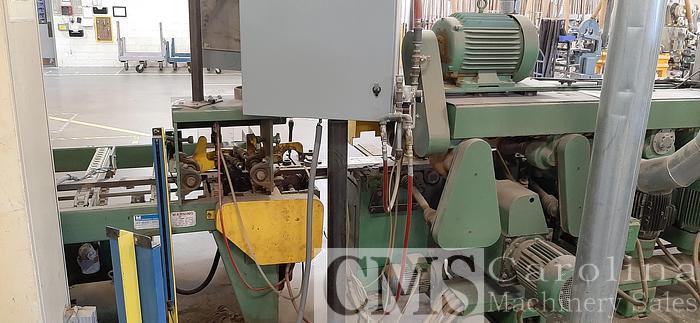

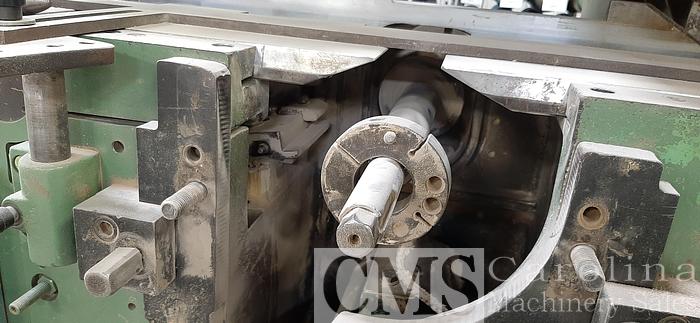

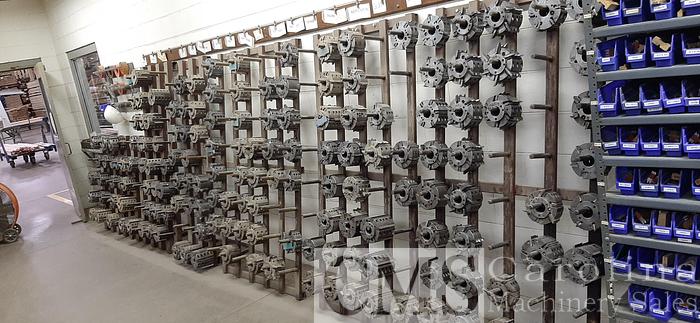

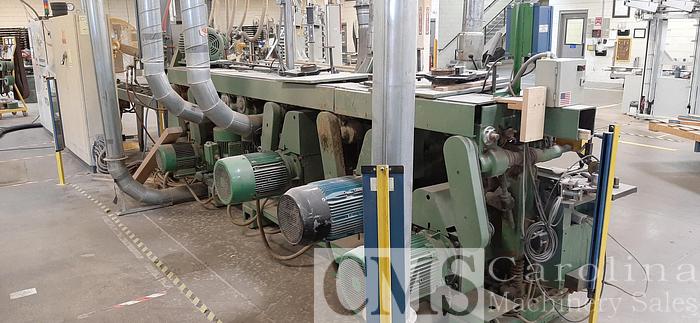

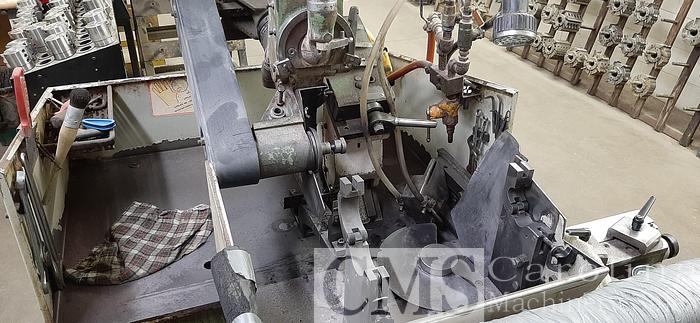

Weinig H22 BL (Jointed) with Feed Table Included: 1988 Weinig R931 Grinder Both machines in good working condition and serviced regularly. Moulder is a Weinig H 22 BL made in 1981. It’s 480v 60 hz 3PH 7 head, 8-11/16” by 4-11/16” capability Sequence is: Bottom (manual jointed), Right, Left (manual jointed), Right (hydraulic jointed), Top (manual jointed), Top (manual jointed), Bottom (hydraulic jointed) note: hydraulic jointed are pneumatic actuated. Outboard bearings on heads 1, 5, 6 and 7. 50 mm diameter spindles run at 6480 RPM. Variable speed hydraulic feet table included Auto Waxilit pump Motorized feed beam Roughly 40-50 heads included (around half of pictured heads, we haven’t sorted them yet) 120v digital encoder counter attached. 120v safety light curtain included High Precision Profile Grinder is a Weinig Rondamat R 931 made in 1988. It’s 220v 60 hz 3PH Tilting head Variable speed 500-3000RPM Handles heads up to 9- 1/16” long and 3-1/2” to 11-1/2” diameter 1-3/16” arbor- 9” arbor length Max grind wheel diameter 8-1/2” Radial clearance angle 10-30 deg. Includes coolant pump and reclamation system Designed to hold a .000196 tolerance Attached LED work light Comes with 1- 40MM arbor, 2- 46MM arbors and 5 clamping flanges
