2006 DOUCET RS-75

Location

Midwest

orCall 704-288-1904

Specifications

ManufacturerDOUCET RS-75
Year2006
Stock Number008517

Description

This system is no longer needed at the current facility.

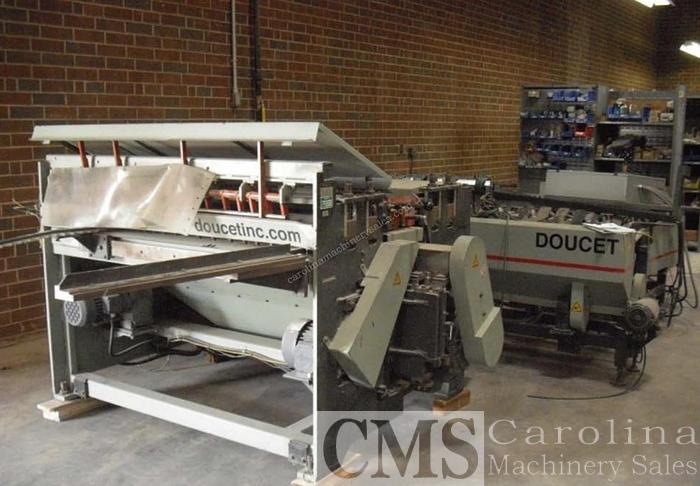

  • DOUCET RS-75
  • 60" Capacity


The system consists of:

  • EAGLE SCISSOR LIFT, WITH 15' X 55" X 12,000# CAPACITY
  • [2] PUSHER BOARD FEEDERS, WITH 18" TRAVEL

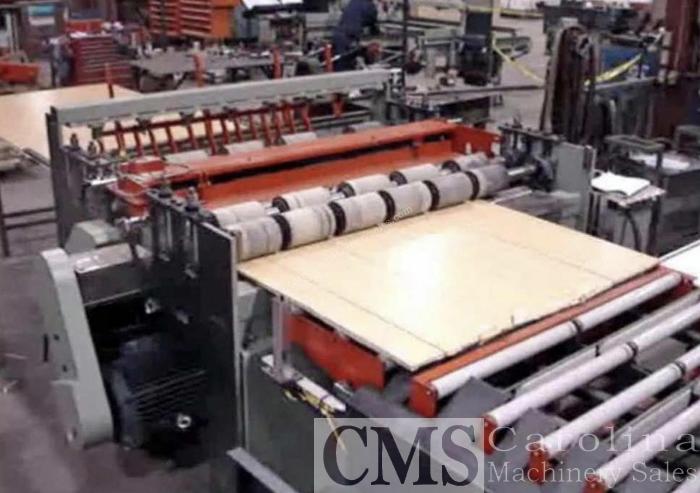

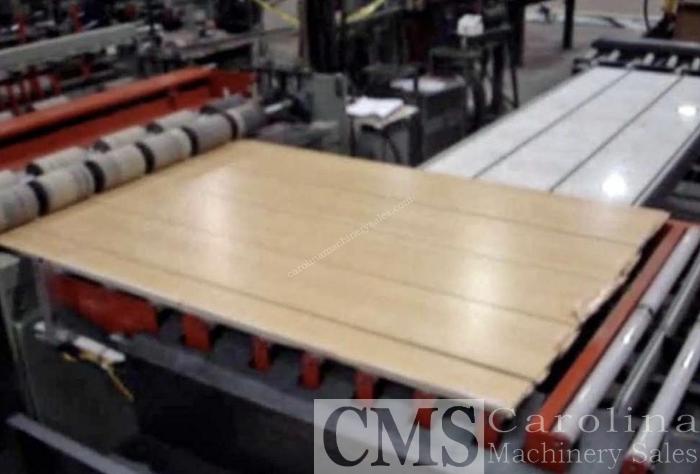

  • DOUCET MDL. RS-75 GANG TRIMMER, WITH 5' USABLE ARBOR, 20HP MOTOR, 10" BLADE, INFEED & OUTFEED ROLLS, RED LION TOUCH SCREEN PLC CONTROL, CONTROL PANEL

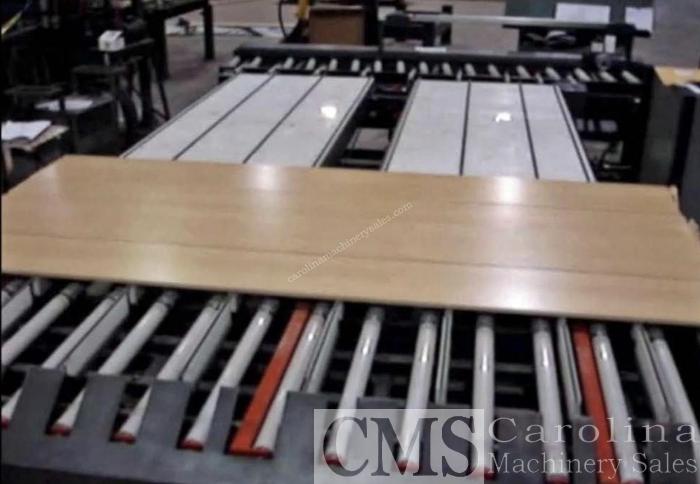

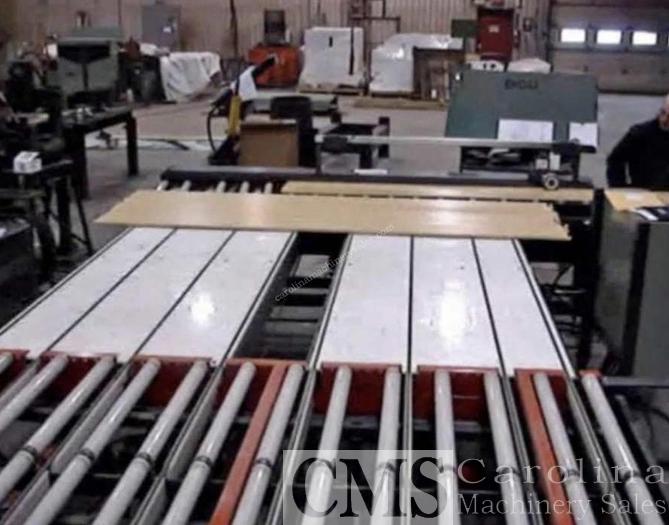

  • OUTFEED SYSTEM, WITH POWER ROLLER CONVEYOR - 5' WIDE X 4' LONG
  • 2-WAY POWER ROLLER CONVEYOR
  • GRAVITY DECLINE SKATE CONVEYOR
  • 3-STRAND CHAIN CONVEYOR - APPROXIMATELY 8' WIDE X 12' LONG


Doucet General Specifications:


- 60" width capacity, (.25" to .75" thickness capacity)

- Unlimited panel length

- 2.50" minimum strip width, (with saws on clamping collets)

- 20 HP, 208-230/460/60/3 saw arbor motor, (belt drive)

- 5 HP, 208-230/460/60/3 feed motor, (variable - 75 ft/min. max. feed rate) - 3” saw arbor with saws mounted with clamping collets

- Saw arbor accessible from above for tool changes

- 1.5 HP, 208-230/460/60/3 saw arbor adjustment for panel thickness

- (2) powered bottom feed rollers with top idler rolls

- Adjustable top idler rolls, (height and pressure)

- Automatic scrap piece removal

- Positive panel support during ripping operations

- Infeed anti-kickback fingers

- Interlock feature on saw blade cover

- Dynamic saw arbor brake

- 12" dust collector outlet @ 4,000 CFM
