2005 NORTHTECH 610XL

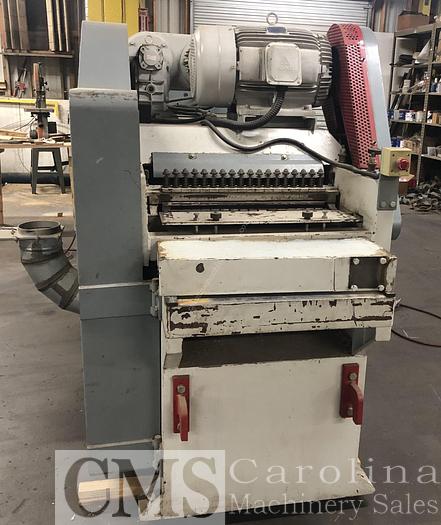

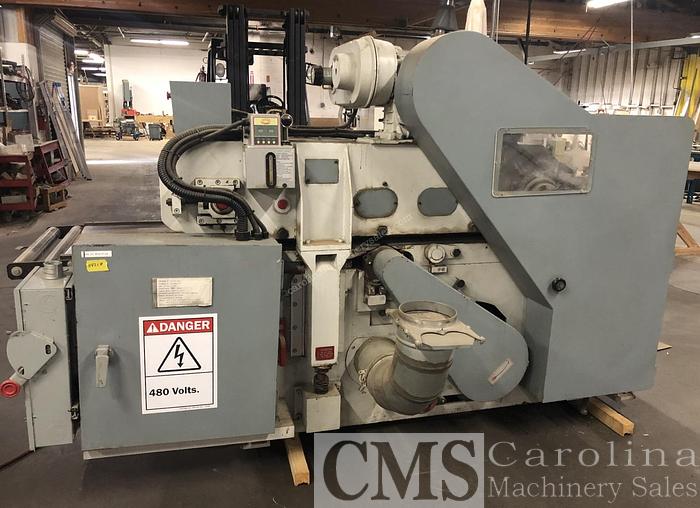

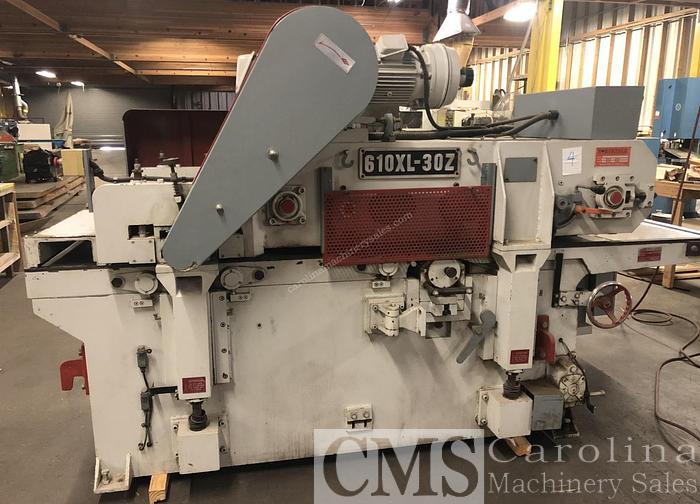

Northtech 610XL Double Side Planer

Manufacturer specs (to be confirmed):

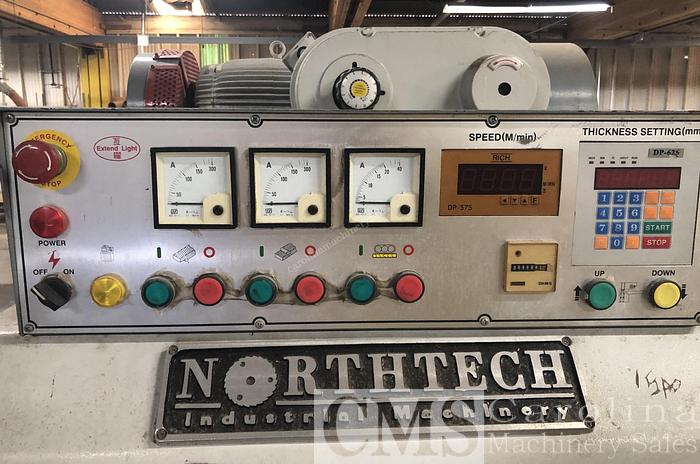

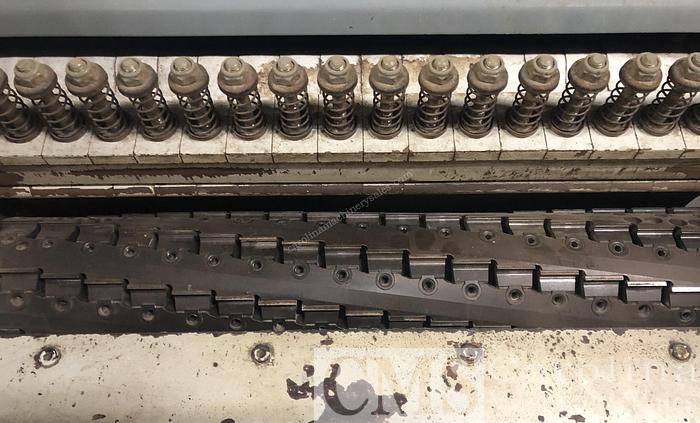

NT-610XL Heavy Duty Chain Drive Series Double Surfacer    CUTTERHEADS   • 30HP Top, 25HP Bottom • Dual (6) Row Helical Cutterhead with double sided 30 x 12 x 2.5mm inserts • 5000 RPM solid steel cutterheads with Class 7 NSK bearings • Cutterhead decibel rating of 75 dB or less    PRODUCT DIMENSIONS • Working thickness 10 - 155mm (3/8” - 6-1/2”) • 15” min working length • 24” maximum width    FEED SYSTEM   • 5HP feed motor • Carpet feeding spike system with 1100 spikes • Feed speed 25 - 95 ft/min    FEATURES   • Mechanical variable speed • Digital control panel with 3 amp meters • Chrome bed plate .01mm (.004”) thick • Amperage requirement: 230V @ 200AMP, 460V @ 100AMP • (2) 6” dust ports requiring 1000 CFM @ each point of extraction •  Automatic lubricating system with low level shut off • UL/CE Certified electrical components • Includes operator’s manual and parts book • Machine dimensions: 112” L x 46” W x 74” H • Packing dimensions: 117”L x 52”W x 78”H • Machine gross / net weight: 7,680 lbs. / 8,300 lbs
