Complete Operation

Location

West Coast

orCall 704-288-1904

Specifications

ManufacturerComplete Operation
Stock Number008447

Description

This plant was set up as a test site for a an oil company that was using steam to extrude oil from the ground. The equipment needs to be moved, as the land it is on has changed owners. Basic listing information:

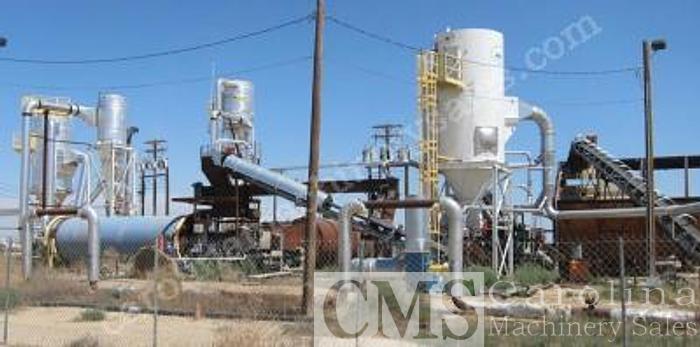

Biomass plant dries wood (and other fuels) and feeds a burner to make steam. Fuels include: Wood, crops, manure and straw. The unit claims to have 80% efficiency. System consists of fuel receiving, handling, preparation biomass to steam energy conversion and all material handling equipment.


Basic equipment list:

  • Fuel receiving: West Salem (WSM) unloader and conveyor

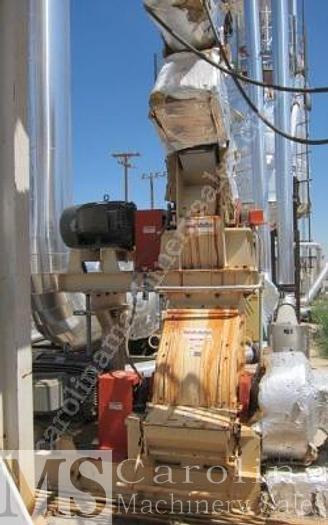

  • Screening/Separation: WSM Metal Detector, Eriez 18" Magnet, BMM 3'x8' double screen, WSM 100 HP Grinder, Kice Baghouse
  • Wet Fuel Feed: WSM fuel bin, metering bin, drag chain, feed diverter

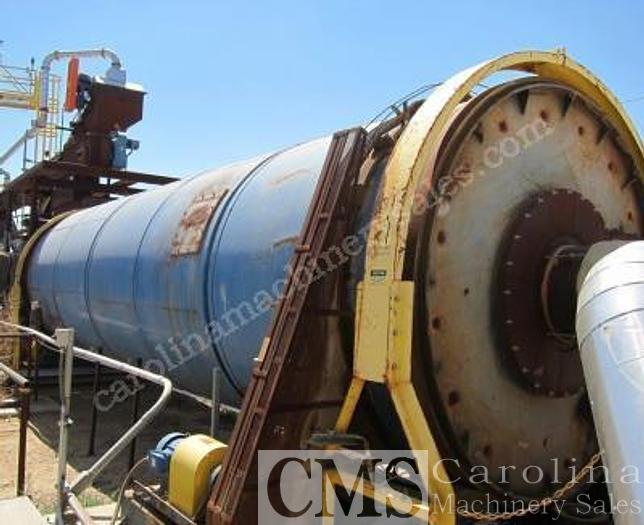

  • Heat System: Dryer meter screw conveyor, rotary airlock, feed screw conveyor, 12' x 48' single pass dryer, inorganic separator

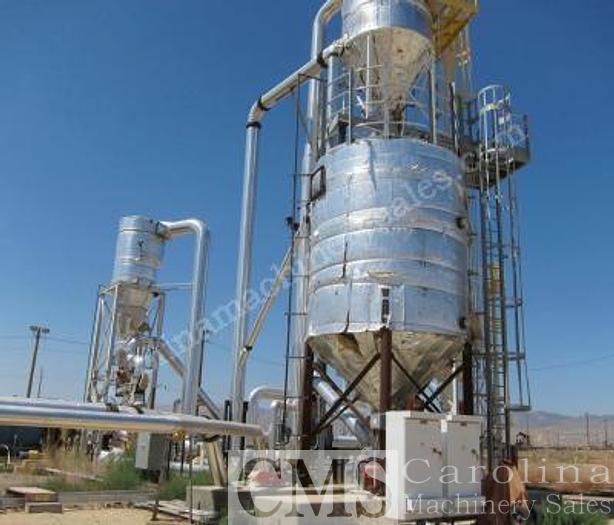

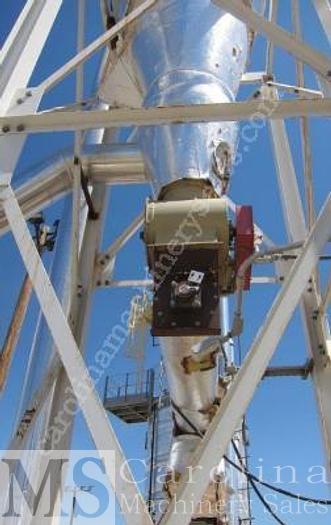

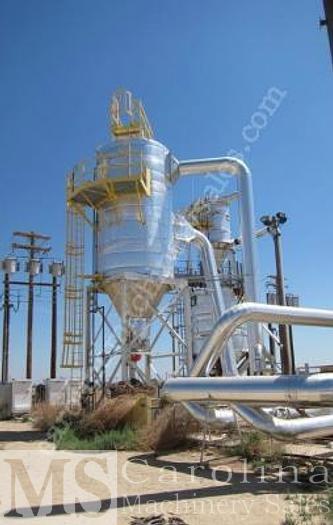

  • Fuel separation cyclone with magnet, dryer fan, dryer baghouse, rotary airlock, baghouse cleaning fan

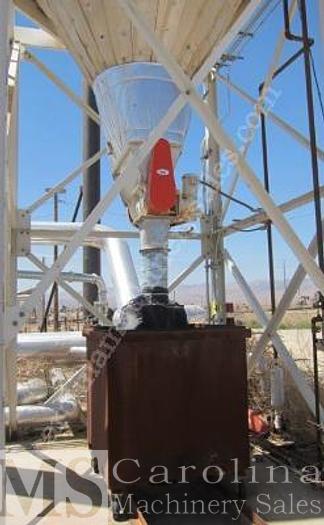

  • Dry fuel storage bin, agitator, rotary air lock, screw conveyor, belt feeder, baghouse
  • Gas burner 25 MM BTU, FGR fan, fuel conveying air fan
