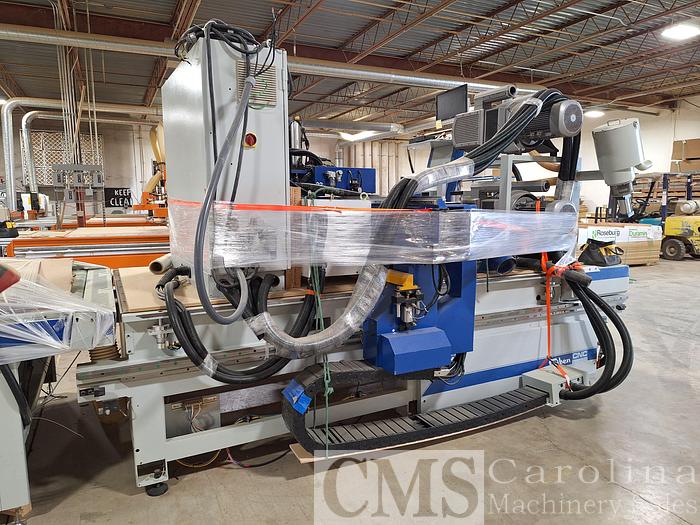

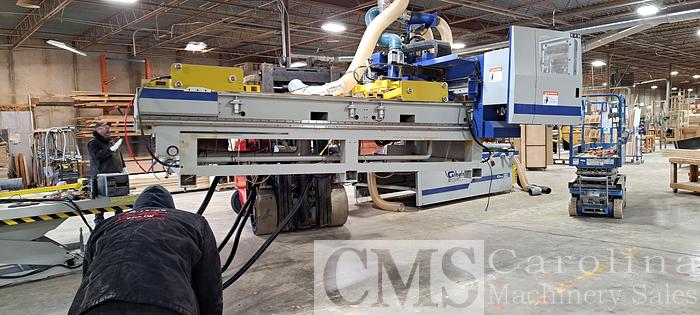

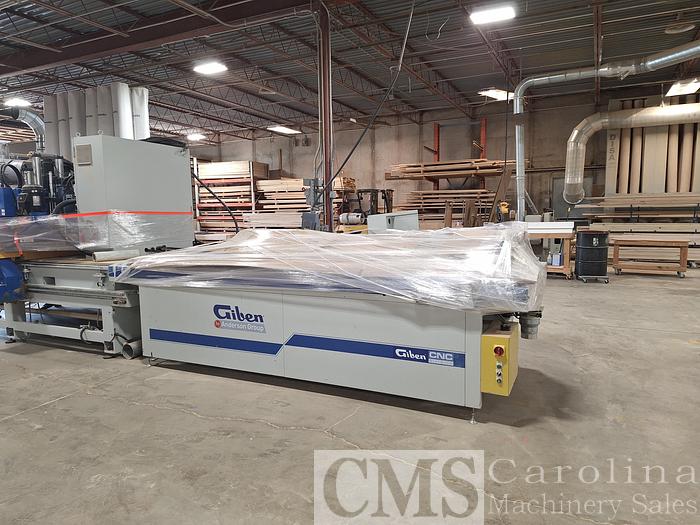

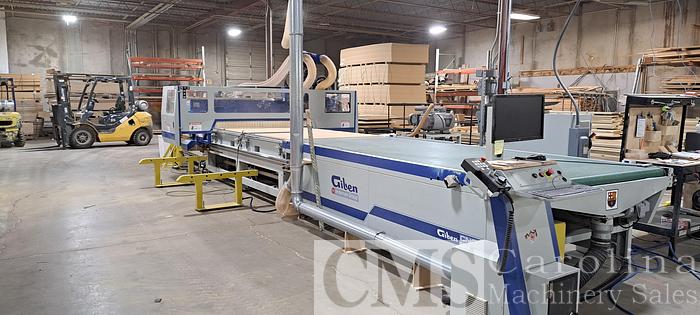

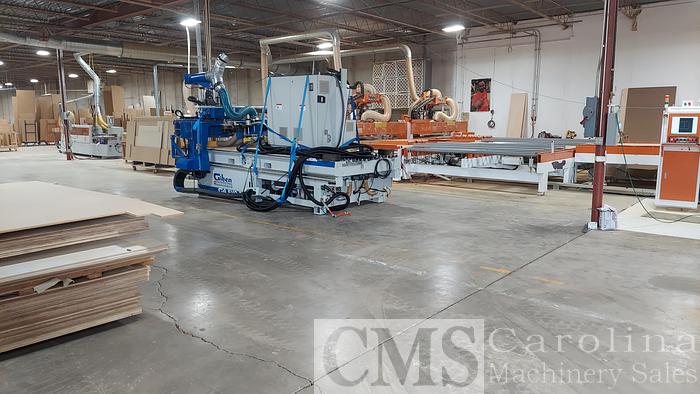

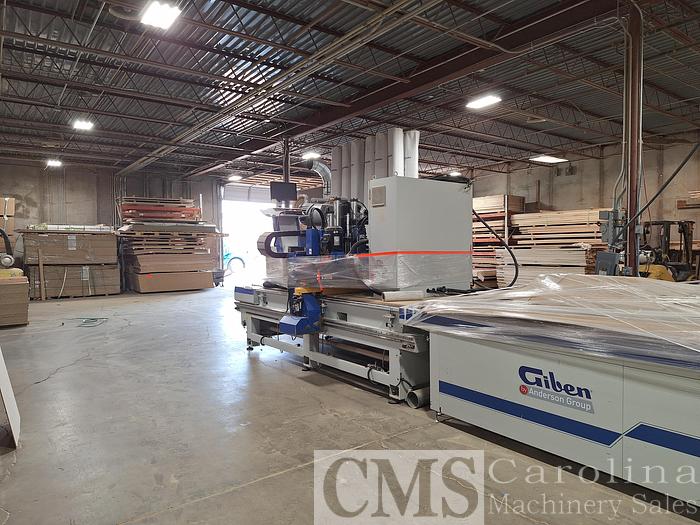

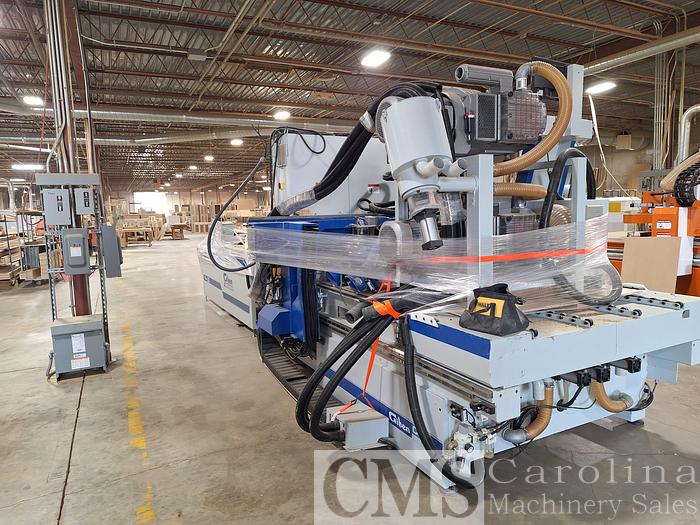

2017 Giben/Anderson G4 EVO 510 Full Line

ModelG4 49G4 510G4 512Table size2700 x 1300mm3100 x 1600mm3700 x 1600mmMax speed x/y/z80/80/30 m/min80/80/30 m/min80/80/30 m/minMain spindle18hp

Max rotation speed24000rpm24000rpm24000rpm

Vertical drills5 x 55 x 55 x 5

Rotation speed4500rpm4500rpm4500rpm

Tool changer 8 position ride along

Suction flow rate160m3/h160m3/h160m3/hDust extractionΦ200mm × 2 150mm x 2Φ200mm × 2 150mm x 2Φ200mm × 2 150mm x 2Overall size4500 x 10000 x 2500mm4500 x 12000 x 2500mm5000 x 13500 x 2600mmNet weight7100kg7500kg8000kg

• The G4 Full line is a 3 axis cnc router designed for production needs in mind.
• Standard 18hp main spindle with rotation of up to 24000rpms.
• Drill block sizes: standard 5 x 5 and an optional 10 x 7.
• Auto loading and off-loading helps create high efficiency and max parts output. Using a pusher bar with dust extraction and offload table with two additional ports to help maintain a clean shop and parts.
• Standard features that separate the G4: auto-lubrication, meehanite cast ron table, fixed tool touch off device, and blast gate for dust extraction.
• A ride along carousel type, tool changer with 8 tool capacity, mounted next to the spindle for fast and efficient tool change operations.
• Optional 12 tool changer.
• Optional auto label printing gantry or label printing mounted by the off-load table.
