Bliss (2) Bliss Mills & Cooler

Location

North

orCall 704-288-1904

Specifications

ManufacturerBliss
Model(2) Bliss Mills & Cooler
Stock Number008014
Voltage460V, 60Hz, 3Ph

Description

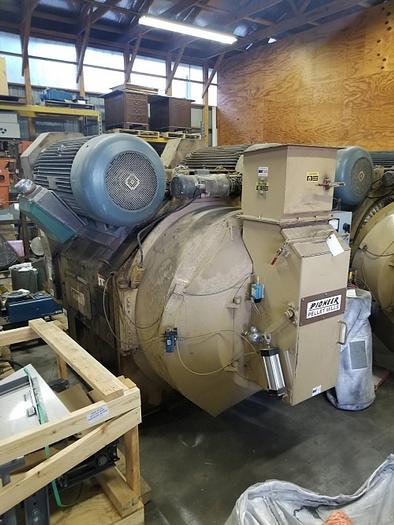

This mill was in operation for approx 5-6 years.  Everything has been removed and is in storage. x2 Used Bliss B200B-120 Bliss Pioneer Pellet Mill Two Stage Belt Drive Transmission with HTD belt drive from two pinion shafts to main shaft & (2) V-belt drives from motors to pinion shafts with Automatic tensioning on V-belt drives. (2) ea. 250 HP (500 total HP) V-belt drives with safety shields. Used Automatic System on Feed Chute Dump Gate Used Auto Lube System on main shaft bearings and rolls Used 16” Long Wedge Magnet In Feed Chute between Conditioner and Die Quick clean 14 ga, 304SS Sleeve over Wedge Magnet Used  250 HP Main Drive Motors 3/60/460 TEFC 1200 RPM with roller bearings Used Hydraulic Brakes on main shaft with hydraulic pump NOTE Dies and Roller Shell Assemblies Not Included Used Model FC-1884 Feeders 12” diameter x 72” long, 304 SS 2 HP motorbase, 3/60/460, TEFC enclosure motor, drive and safety shield Used Conditioning Chamber 18” dia x 84” long (conditioning chamber, shaft and paddles of 304SS) 4” dia steam inlet 1” dia liquid inlet 10 HP motor base and V-belt drive with safety shield and shaft mount reducer for 85 final RPM on conditioner shaft Used 10 HP Motor for Conditioner 3/60/460, 1800 RPM, TEFC Thermometer 50-300° F Used Bliss Cooler Model 10-202-6A Large enough for 2 Pellet Mills noted above (Rated at 10 TPH wood and 25 TPH feed) 304 SS Top and Walls with Mild Steel Construction on fixed grid and louver discharge Hinged Service Door (2) Inspection Windows Fixed Grid (3) Rotary Level Sensors Air Management Ring Louver Discharge operated by (1) Air Cylinder Standard 45° Mild Steel Discharge Hopper with bolted service panel Used Cyclone Stainless Steel Used Rotary Airlock Feeder Used Fan 50 HP Stainless Steel Construction Manufacturer Bliss Model (2) Bliss Mills & Cooler Year Voltage 460V, 60Hz, 3Ph Machine Location North Other Similar Machines Mutek Briquette Press Complete Operation 1-2 TPH Pellet Mill Munson 36x9 Rotary Mixer CF Nielsen BP-5500 Briquette Machine Nice Briquette Press ready for new owner CPM 7122-Pellet Mill CF Nielsen BP-5500 Briquette Machine Heavy duty Briquette line! Complete Operation Complete Biomass Plant System has been run for less than 1,000 hours!
