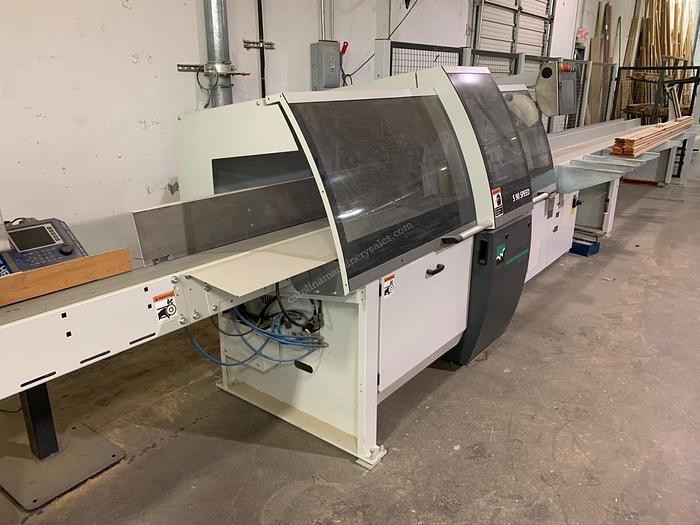

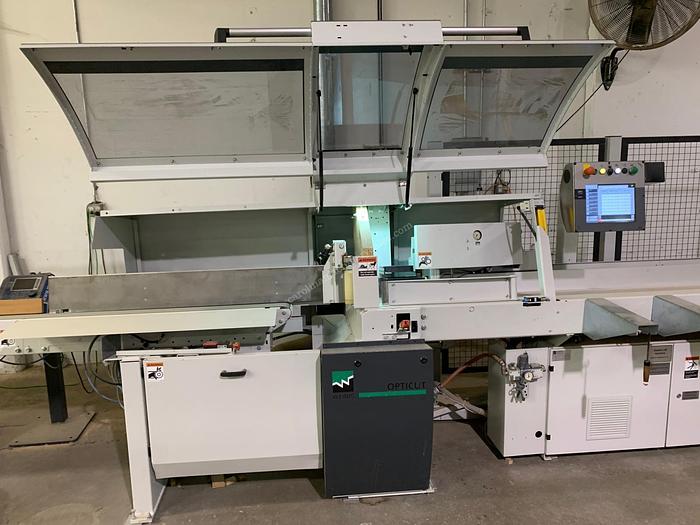

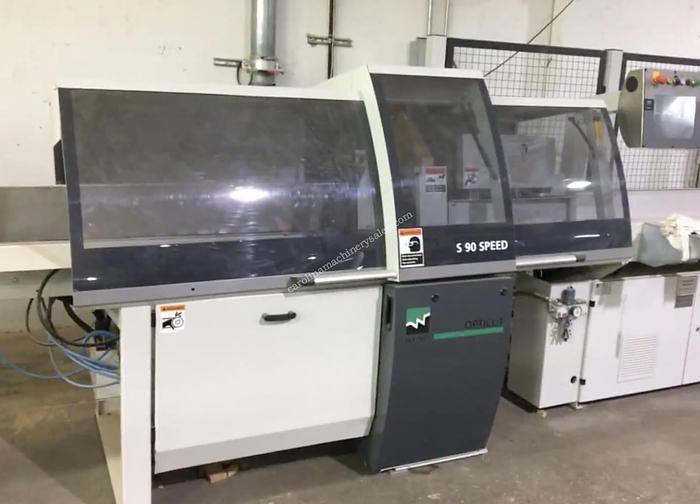

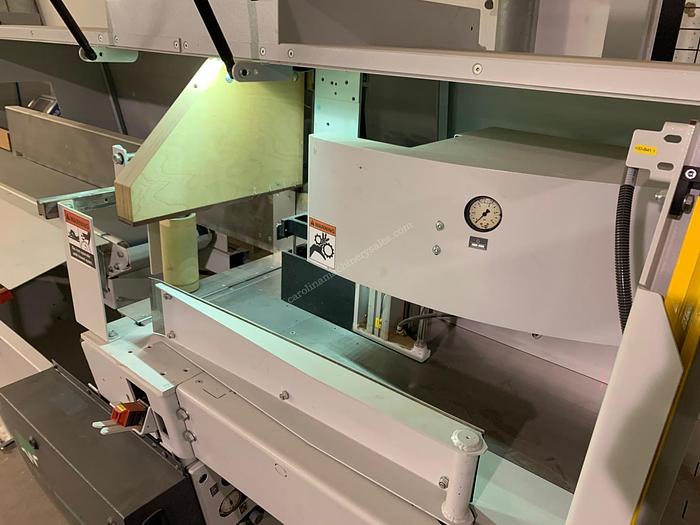

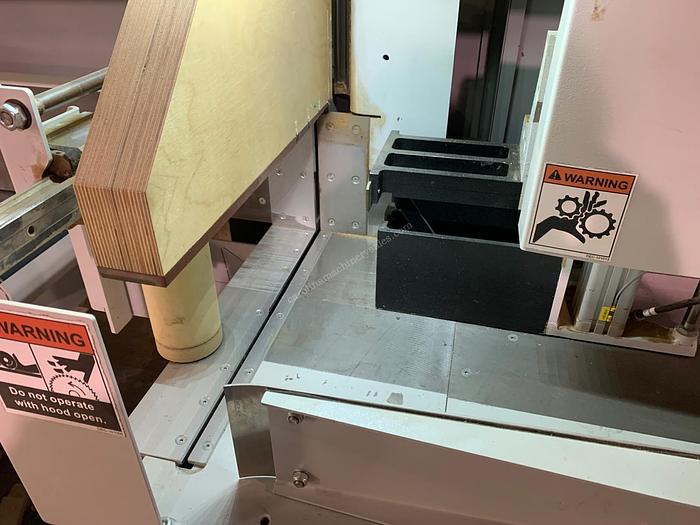

Dimter Opticut S90 Speed

Location

South, USA

orCall 704-288-1904

Specifications

ManufacturerDimter
ModelOpticut S90 Speed
Year2015
Stock Number008693
Voltage480V, 60Hz, 3Ph

Description

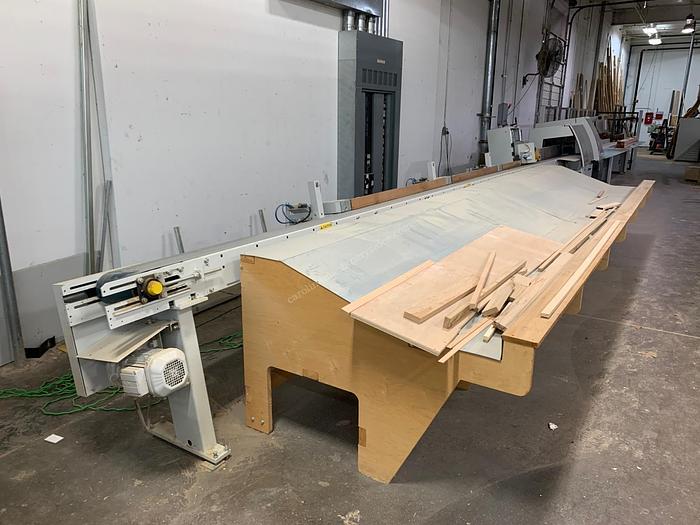

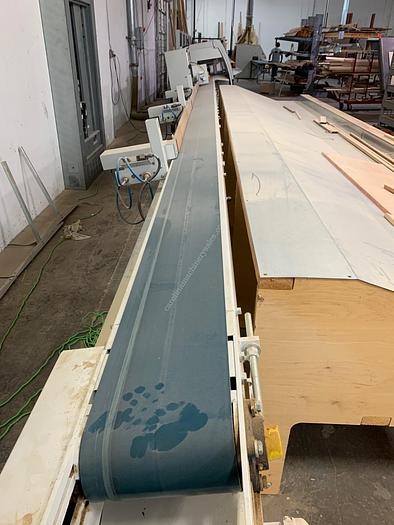

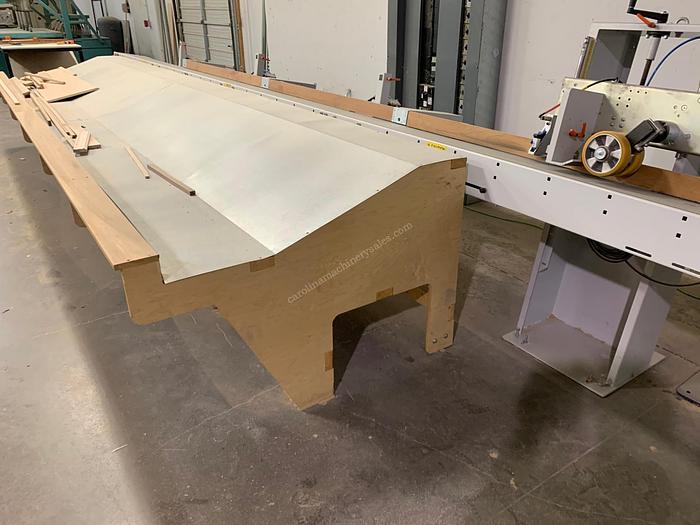

Grecon Dimter Opticut S90 Speed Optimizing Crosscut Saw Manufacturer specs (to be confirmed) 14-1/2' Infeed 33' Outfeed with (6) Kickers. Material capacities 4" Thick x 9" wide max.; 3/4" x 1" minimim.; 16" Min. to 13' max. infeed board lengths. 10 HP Arbor motor driving 20-1/2" dia. blade with 30 mm bore at 2,900 RPM. Infeed system 295 FPM max., travels full length of board, reading crayon marks for cut to length, optimization & defecting marks. Marking Station Attached to the transport section; easily accepts incoming lengths up to 13'.
