Viet Top & Bottom Planer Sander

Location

California, USA

orCall 704-288-1904

Specifications

ManufacturerViet
ModelTop & Bottom Planer Sander
Stock Number007690
Voltage440V, 60Hz, 3Ph

Description

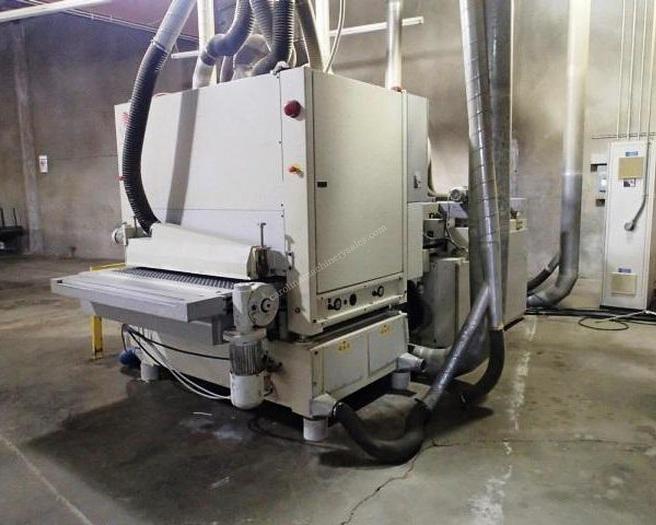

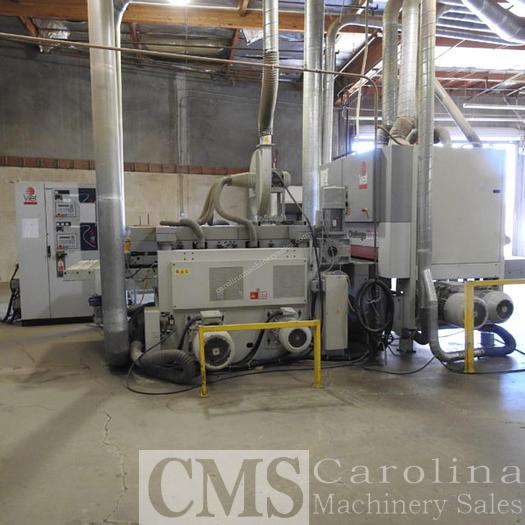

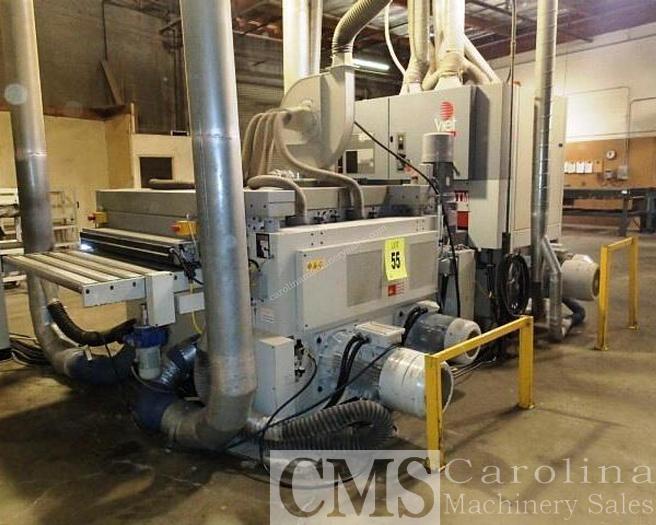

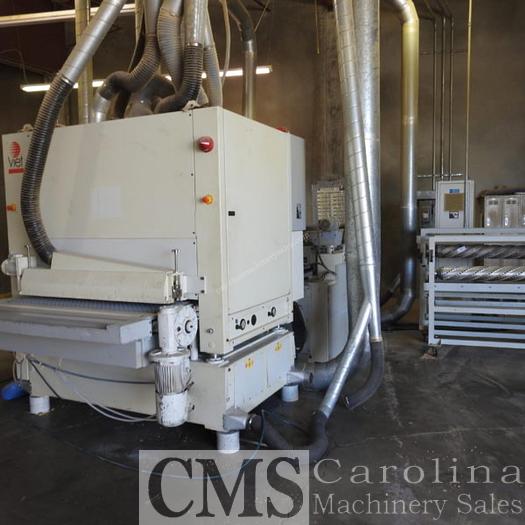

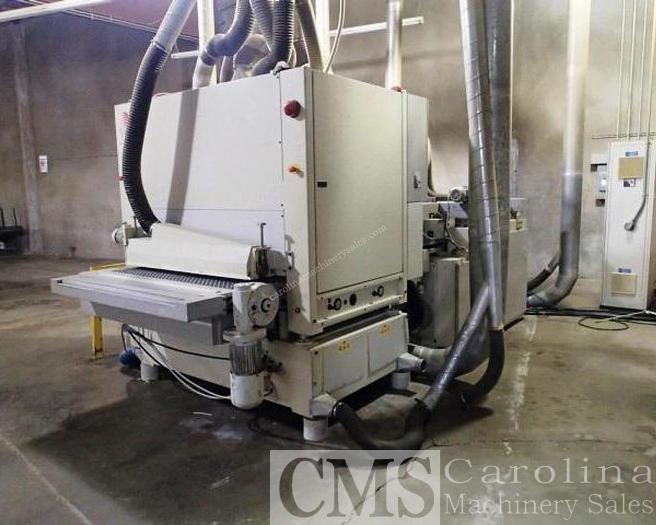

Viet Top & Bottom Planer Challenge 223 HPG & Valeria 2CC INF, good condition!

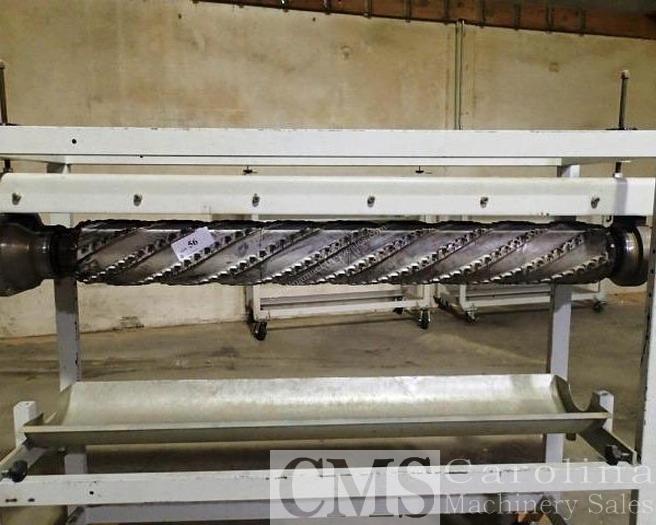

This is the only model Like this that was ever sold in the United States by Viet. No more Down time from dull tooling, due to the two Spare heads.


Changing the heads are a breeze with the Quick Change option that is included.


*the unit has been disassembled and rigged for transport.


*It ran four (4) per week processing raised door panels out of select or better red oak and alder.


Manuf specs:

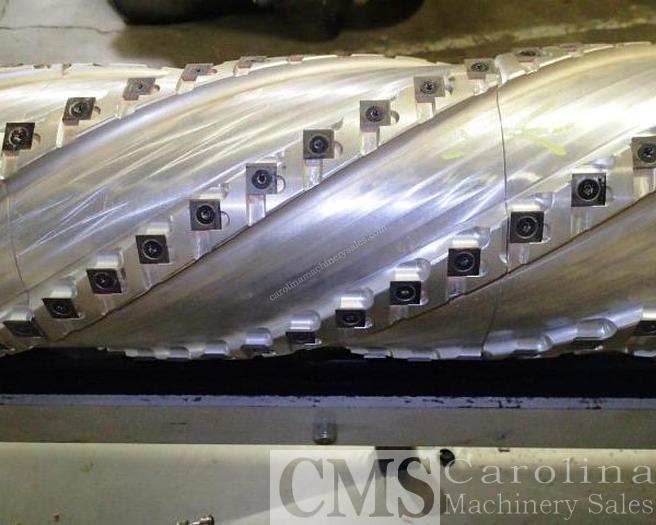

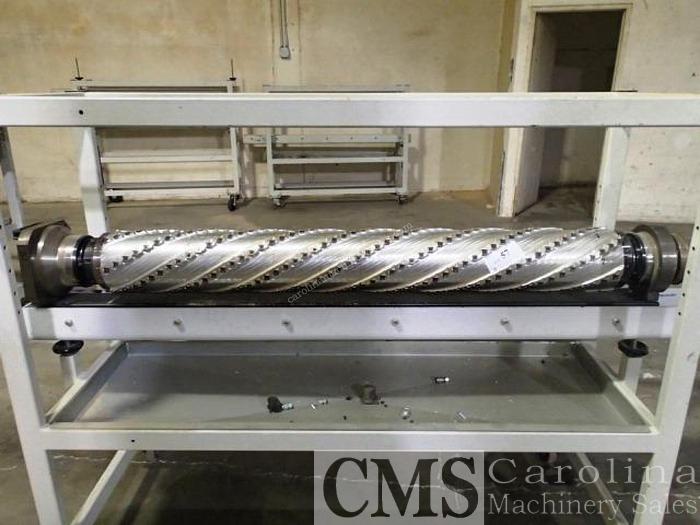

Max Working Width 1350mm (53”) Work Height 3-160mm ( 0.12” – 6.30”) 1 st Head HPG – 40hp HPG Quick Change Helical Planer head 180mm (7.09”) diameter. 4250 RPM

Quick Change Head with Cart. INF 2N 1350 HPG Element Locking Support. Spare HPG Heads included to Limit Down Time Locking Ring Support on Front and back 2nd head R320-80 –

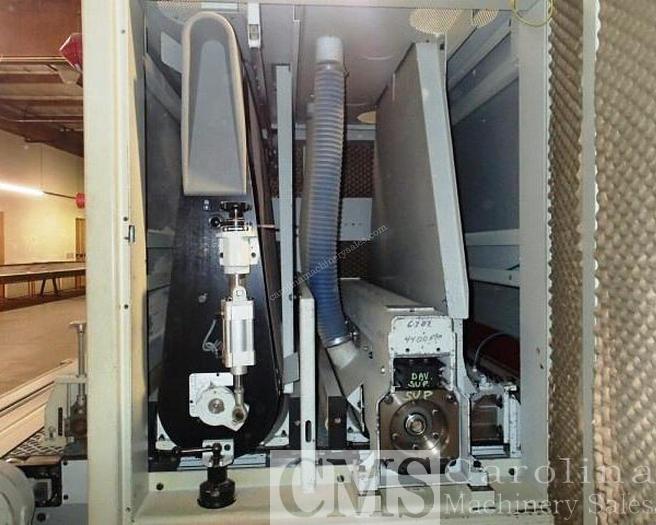

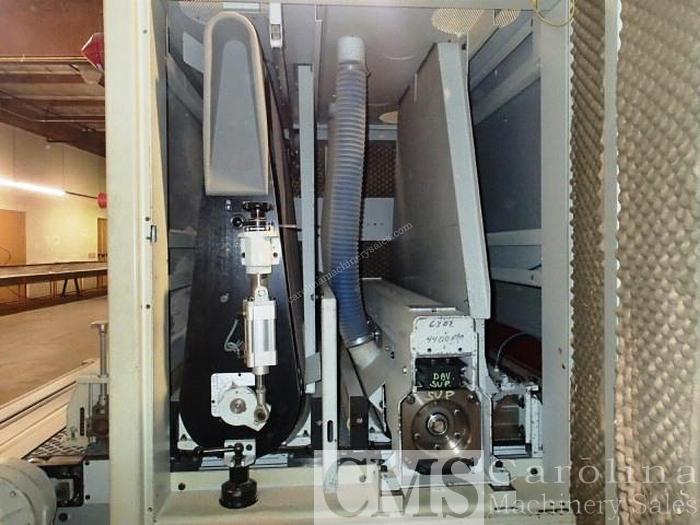

Shore 60 Diameter 12.6” (320mm) 25hp

Sanding Head 2nd Head Belt Size 54” W X 103” L (1380mm W X 2620 mm L) 2nd head speed 75.4 ft/sec (23m/sec) Conveyor 4hp (3kw) 8 – 49.2 ft/sec (3-15 m/sec) Variable Speed Lifting . 0.7 hp (.55kw) Blower Unit 0.1 hp (.10 kw) Panel Brush unit .5hp (.37kw) Air Needs Pressure Min – Max 86-116PSI (6-8 Bar)

Consumption 106 Gallons/min (401 L/min) Suction Flow speed 82 Ft./Sec (25 m/s) Flow Rate 33094 ft 3 /hr. (10087 m 3 /hr)

Noise Level Load less 79 dB During Work 82.9 dB Suction Inlets Unit 1 HPG 2 x 3.75”(95mm) & 2 x 7.68”(195mm) Unit 2 Sanding head 1 x 6.22” (158mm & 1 x 4.72”(120mm) Panel Brush 1 x 4.72”(120mm) Valeria 2CC INF. – HPG 1350 Specifications Working Width 53” (1350mm) Working Height .16” – 6.30” (4-160mm) Minimum Length 9.84” (250mm) 1 st Head HPG – 40hp HPG Quick Change Helical Planer head 180mm (7.09”) diameter. 4250 RPM Quick Change Head with Cart. INF 2N 1350 HPG Element Locking Support. Spare HPG Heads included to Limit Down Time


Locking Ring Support on Front and back 2 nd head R320-80 – Shore 60 Diameter 12.6” (320mm) 25hp Sanding Head 2 nd Head Belt Size 54” W X 103” L (1380mm W X 2620 mm L) 2 nd head speed 39 ft/sec (12m/sec) Conveyor 4hp (3kw) 8 – 49.2 ft/sec (3-15 m/sec).


Motor With Inverter Lifting .5hp (.37kw) Vacuum Unit 5.4hp (4kw) Panel Brush unit .5hp (.37kw) Air Needs Pressure Min – Max 86-116PSI (6-8 Bar) Consumption 125.75 Gallons/min (476 L/min) Suction Flow speed 98.43 Ft./Sec (30 m/s) Flow Rate 48707 ft 3 /hr. (14846 m 3 /hr) Noise Level Load less 79 dB During Work 82.9 dB Suction Inlets Unit 1 HPG 2 x 3.75”(95mm) & 2 x 7.68”(195mm Unit 2 Sanding head 3 x 6.22” (158mm)


Vacuum Unit 1 x 5.9” (150mm Panel Brush 1 x 6.22” (158mm) Rear Tree Support Back Support 440V 60hz 3ph 106amps
