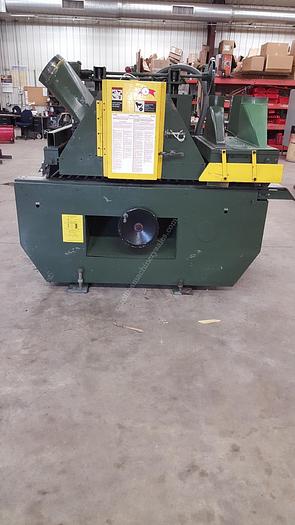

Mereen Johnson 424-DC

Location

United States

orCall 704-288-1904

Specifications

ManufacturerMereen Johnson
Model424-DC
Year1993
Stock Number007279
Voltage460V, 60Hz, 3Ph

Description

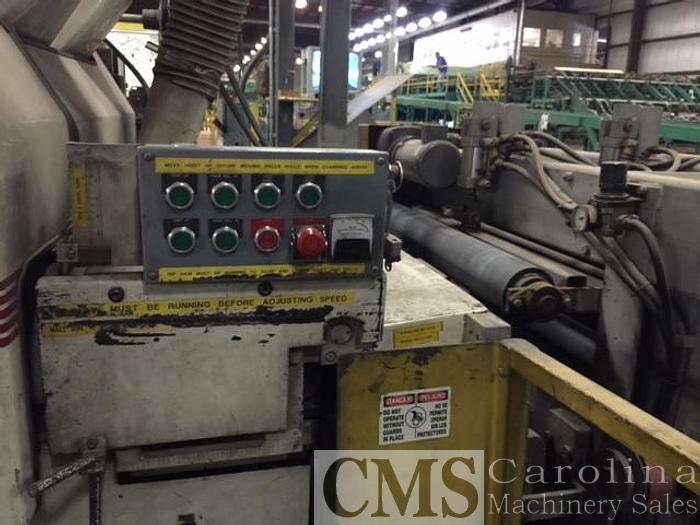

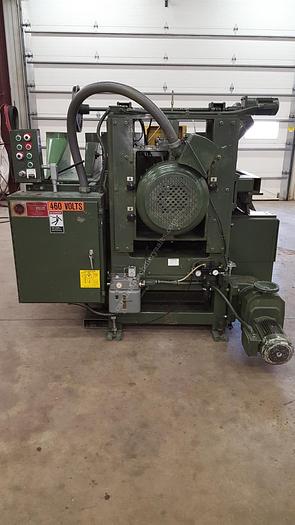

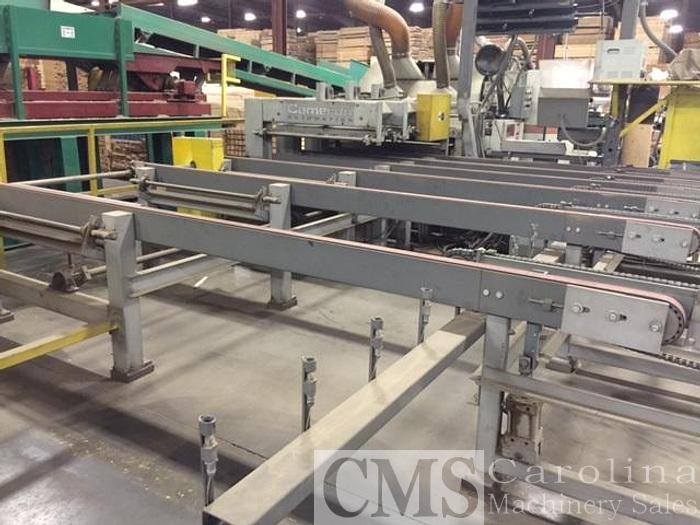

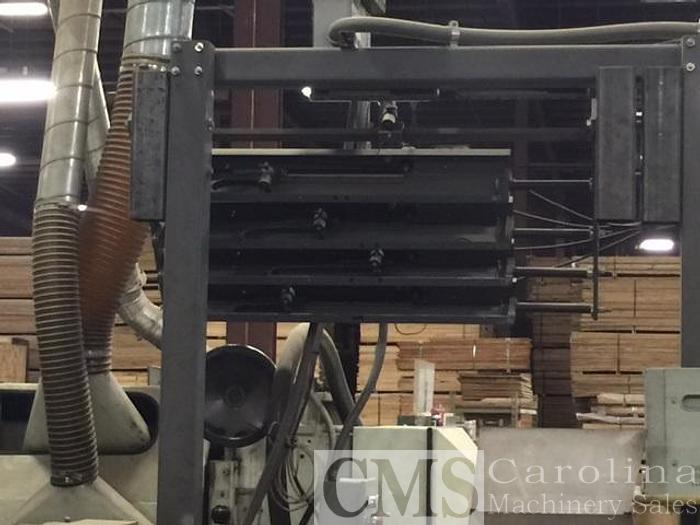

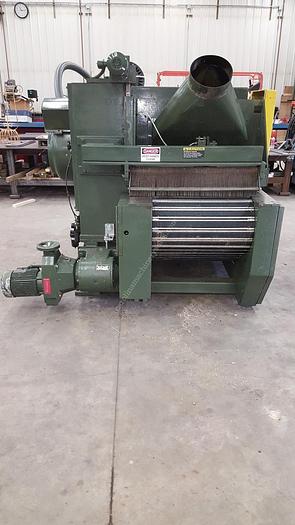

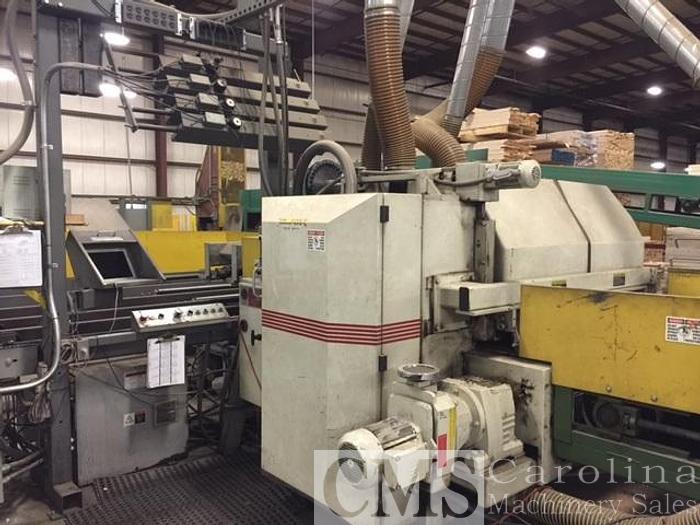

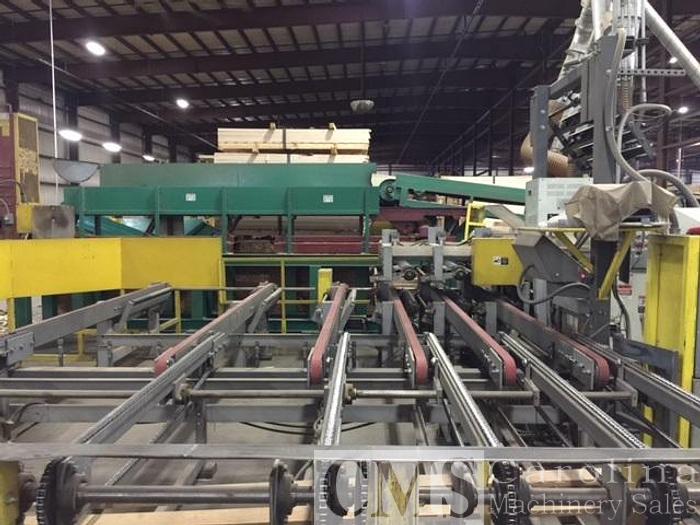

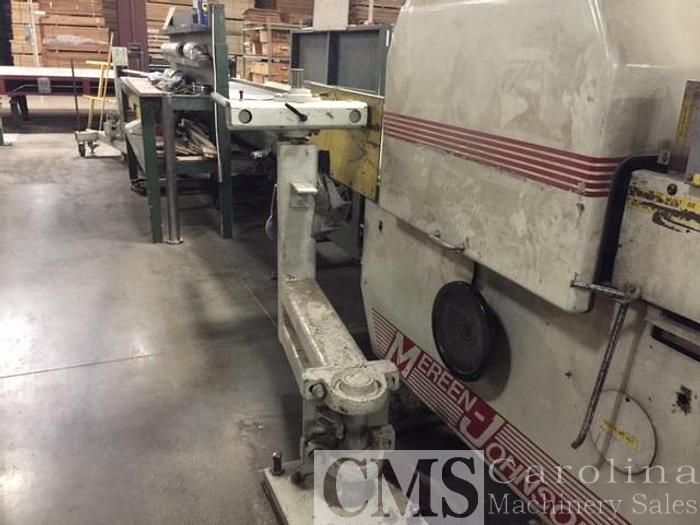

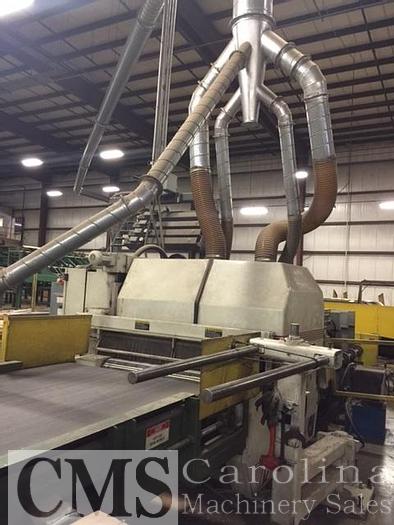

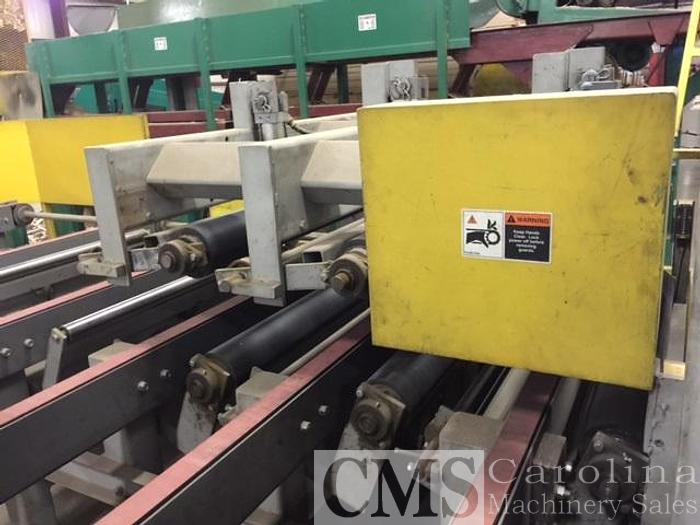

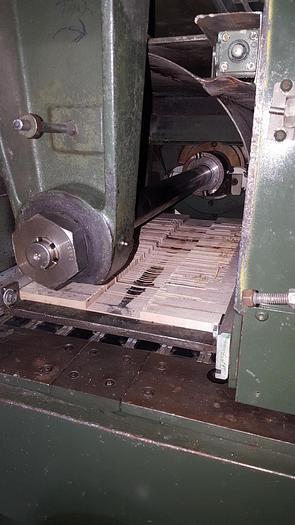

This system has been removed from service and is ready to load on the truck. Arbor space 24" Thickness to 3.5" using 14" dia. tooling 75 HP 3600 RPM TEFC direct arbor drive 3 HP TEFC HD variable speed feed drive assembly with 30-150 FPM rate (4) 3" dia. air loaded overhead idle press rolls (1) 24" capacity sleeve arranged for 3-1/8" bore, 14" max. dia. tooling (1) set of saw spacers (2) upper dust hoods - (1) 10" and (1) 5" (requires total 3,380 CFM at 5,000 FPM velocity with 4" water gauge at hood opening Lower dust chute Anti-kickback assemblies single bottom and double upper infeed, and single upper outfeed
