Weinig Unimat 318

Location

South

orCall 704-288-1904

Specifications

ManufacturerWeinig
ModelUnimat 318
Year2014
Stock Number008011

Description

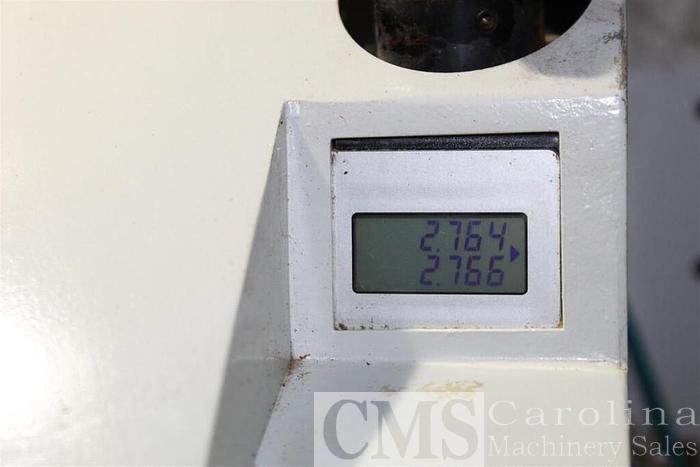

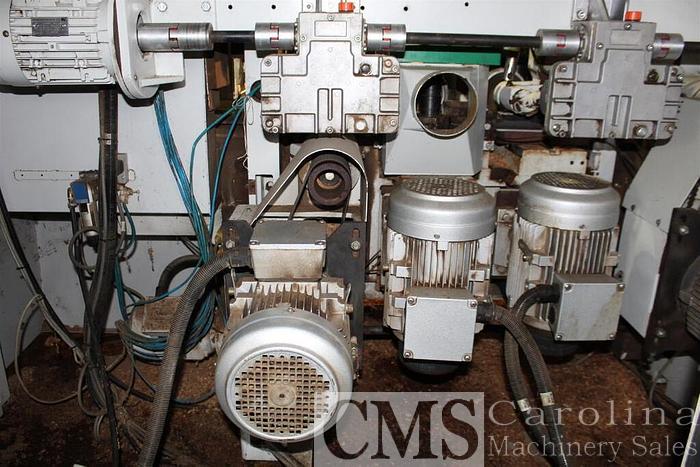

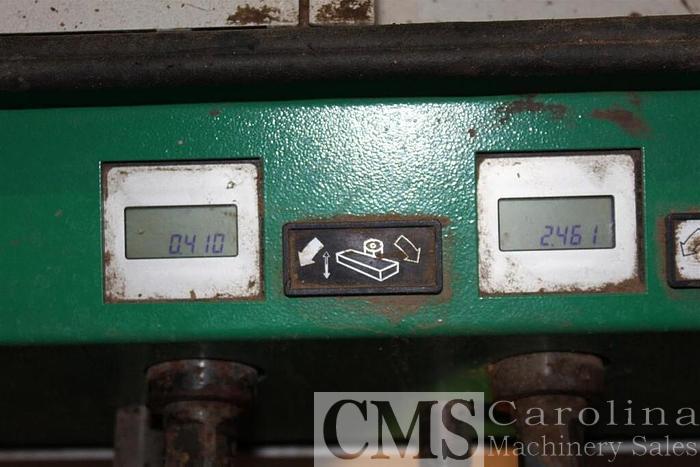

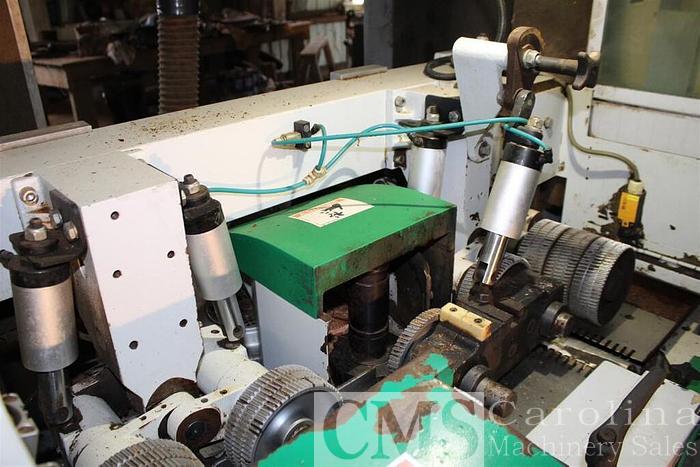

This machine was owned in a small shop that closed down. Manufacturer Specs (to be confirmed) Working cap. 9-1/16" x 4-3/4” Motors B-10 HP, R-10 HP, L-10 HP, T-20 HP, T-20 HP and B-10 HP. Electronic brakes. Spindles Dia. 1-1/2” at 6,000 RPM. LED readouts all spindles. CNC WEINIG "EZY COM" LED readouts including chipbreaker’s and holddown’s. Radial adjustment of spindles 3, 4 and 5. Modem for external diagnostics. Feed Variable speed drive with 5.5 HP motor; with speeds from 18-98 FPM. Short stock attachment. Axial adjust of feed roller opposite left spindle 1.36". Infeed/Tables 2M (6’6”) infeed table with side pressure roller before first bottom spindle; Chromed tables and fences Auto table lubrication pump. (2) powered table rollers between top spindles and at outfeed.
