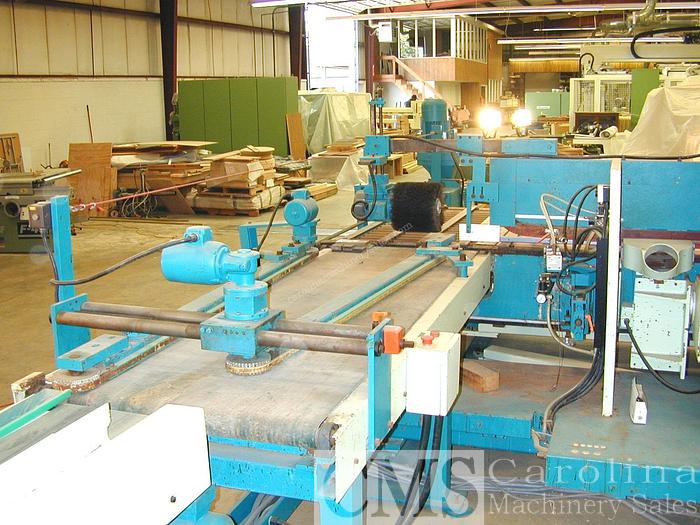

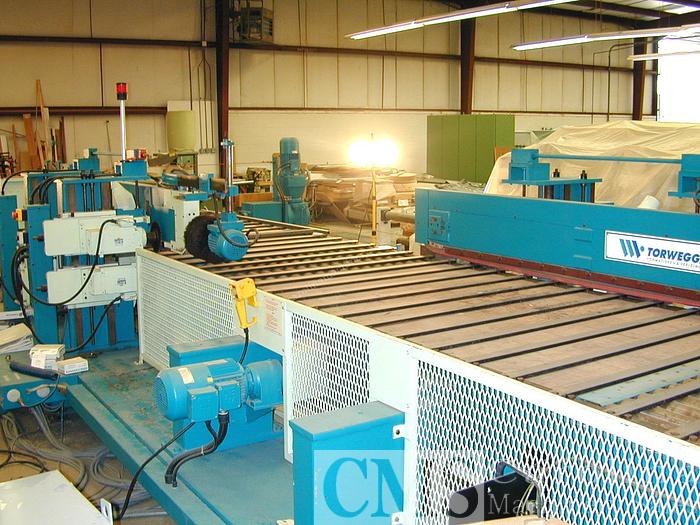

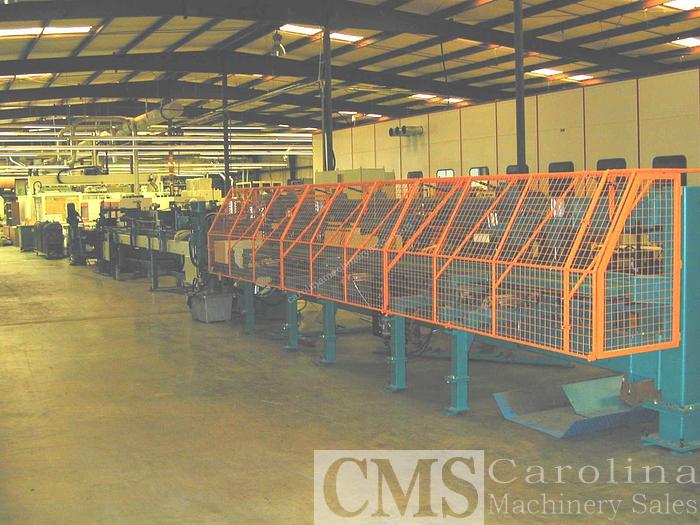

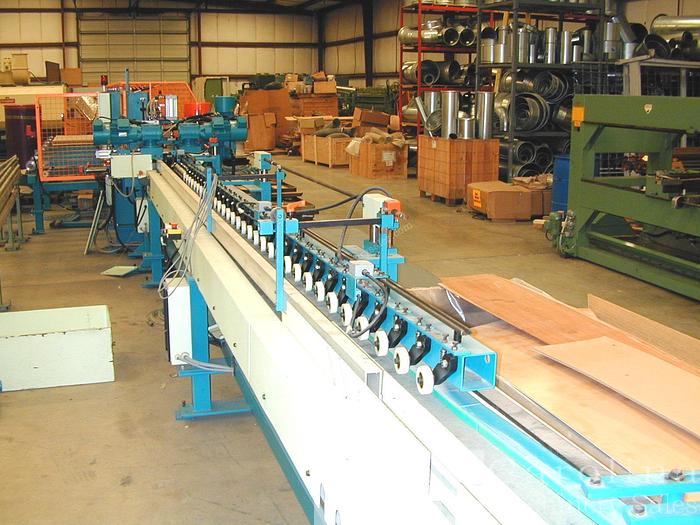

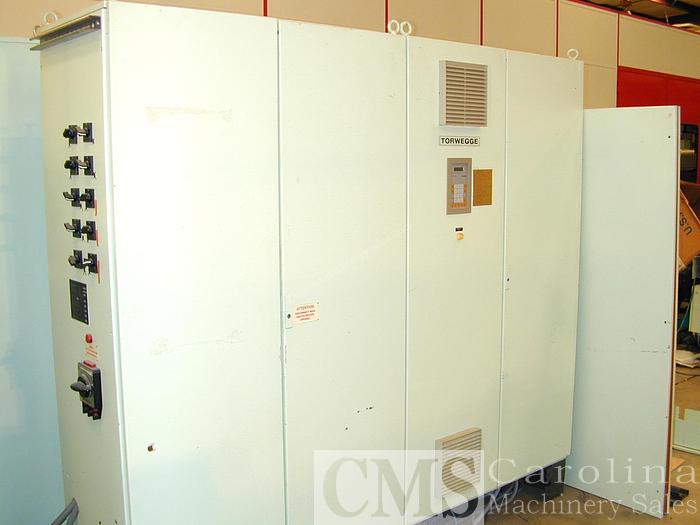

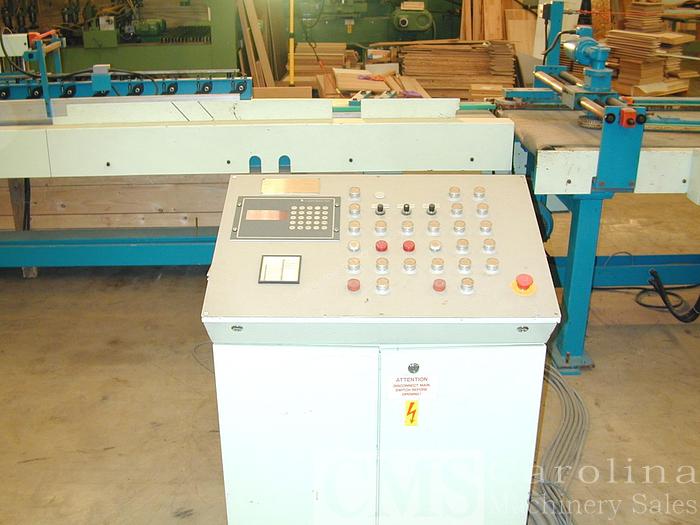

Torwegge Finger Joint Line

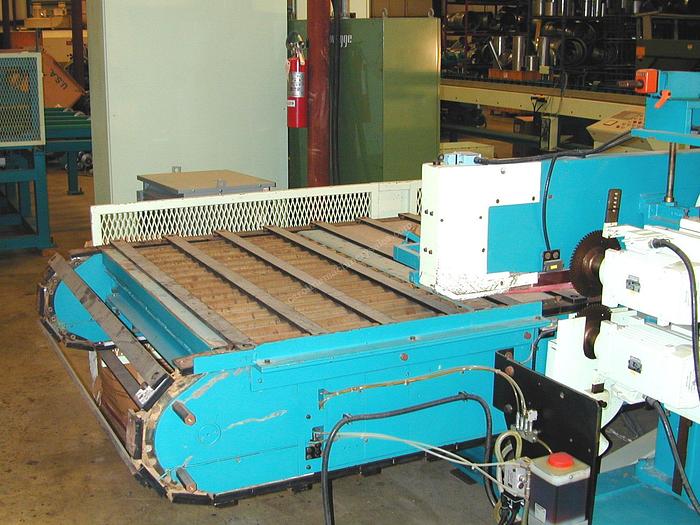

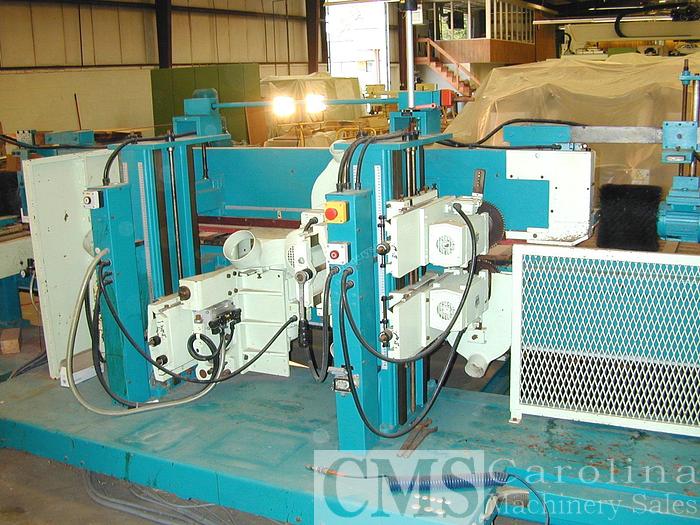

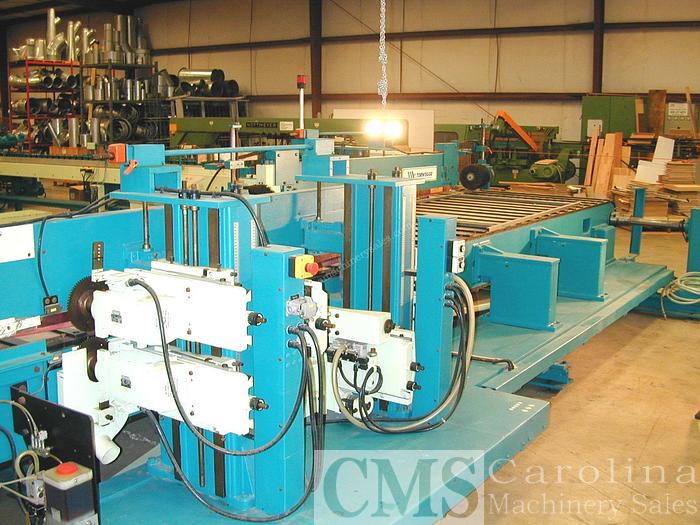

This system has been removed from service and can be inspected. Torwege Model HK604 Finger Joint Line Material dimensions before finger jointing Lengths 200 - 1,080 mm / 7 7/8" - 42 1/2" Widths 40 - 120 mm / 1 1/2" - 4 11/16") Thicknesses 15 - 60 mm / 9/16” - 2 3/8") Capacity Infeed can accept up to 80 pieces/min., but the actual figure that can be achieved depends on length of strips and preparation and organization of infeed. Up to 30 meters of finger-jointed strips/ min. can be achieved. Again, actual figure depends on length of strips cut. Line Components Item 1.1 1 xDouble-Sided Finger Cutting Machine HZ 604 - cutting and profiling of random length material - flat guides to accept right and lefthand machine part - heavy, torsion free machine frame to accept motor columns - non-driven special top tracks for solid wood - spring-loaded hold-down shoes at top tracks - chain tracks with automatic lubrication for transport chain and chain pads - rail-type chain dogs over the entire working width - Three (3) driven roller conveyors for transportation of workpieces from chain track to chain track and out of the machine - Mechanical feed gear, steplessly adjustable - Pneumatic and electrical basic installation Three (3) Roller Tables Drive motor 1.1 kw (1.5 hp) Transport speed 13 - 92 m/min. (42 - 301 ft/min.) Top tracks Maintenance-free top tracks for solid wood with special holddown belts, running on roller chain. Height adjustment with digital read-out. Chain tracks and chain pad Chain tracks equipped with replaceable special guide ways. High-precison chain pads 80 mm (3 1/8") wide with steel insert, surfaces with PU-cover, slide surfaces with PE-cover. Chain with needle bearings. Chain bolts can be lubricated. Every third pair of chain pads with steel surface and rail-type chain dogs over the entire working width. Chain dogs Distance between chain dogs 305 mm (12 ") Electrics With automatic starting program. Signal lamps at the control panel indicate the pre-selected motors. After the motors have started, the flashing light turns to continuous light. If a motor protection relay fails, this is indicated by red lamps on the control panel. SPS-Control. Feed speed 6 - 28 m/min. (20 - 92 ft/min) steplessly adjustable, motor 4 kw (5.4 hp) Max. height of throughfeed 60 mm (2 3/8") Max. overhang outside chain tracks 20 - 50 mm (1/16 - 1 7/8") (depending on profile and depth of fingers) MOTOR STATIONS LEFTHAND SIDE = GROOVE / RIGHTHAND SIDE = TONGUE 1Top scoring saw 21.16 SO horizontal and vertical adjustment. Fixed stop for cutting position. Without tools Motor 2.0 kw (2.7 hp), 90 cycles, 5,400 rpm, shaft dia. 30 mm (1 3/16") tool acceptance dia. 40 mm (1 9/16") with saw flange with motor brake 1/1Bottom scoring saw 20.17/21.17 SO horizontal and vertical adjustment. Fixed stop for cutting position. Without tools Motor 2.0 kw (2.7 hp), 90 cycles, 5,400 rpm, shaft dia. 30 mm (1 3/16") tool acceptance dia. 40 mm (1 9/16") with saw flange with motor brake 1/1Cut-off motor 10.31/11.31 SO horizontal and vertical adjustment. Fixed stop for cutting position. Without tools Motor 5.2 kw (7.0 hp), 90 cycles, 5,400 rpm, motor shaft dia. 35 mm (1 3/8"), with motor brakes 1/1Finger cutting motor I, 30.56/31.56, for clockwise and anti-clockwise rotation, with pneumatic jump attachment, horizontal and vertical adjustment. Without tools Motor 6.3 kw (8.5 hp), 90 cycles, 5,400 rpm motor shaft dia. 35 mm (1 3/8"), with motor brakes 1/1Finger cutting motor II, 10.31/11.31 SO horizontal and vertical adjustment, Without tools Motor 6.3 kw (8.5 hp), 90 cycles, 5,400 rpm, motor shaft dia. 35 mm (1 3/8"), with motor brakes 1 xFrequency transformer 60 kva, IP 54 1 xGlue application at lefthand machine side, consisting of - glue pump - glue pressure regulator - glue application with horizontal and vertical adjustment - glue nozzle pneumatically controlled, with replaceable application shoe for one profile and material thickness - glue nozzles for other profiles and thicknesses are optional Item 1.2 Angular Outfeed Conveyor HZ 21 - transporting to lefthand direction - stepless adjustable drive, motor 1.1 kw (1.5 hp) - feed speed V = 25 - 75 m/min. (82 - 246 ft/min.) - alignment rail - electrical basic installation Item 1.3 Accumulation Section HZ 51 - adjustment gear motor 1.1 kw (1.5 hp) - feed speed V = 31 - 94 m/min. (101 - 308 ft/min.) - alignment rail - 6 spring loaded pressure rollers from top, height adjustable - length of accumulation section 4,000 mm (157 7/16") Item 1.4 Pre-Pressing Station HZ 31 - steplessly adjustable electric drive - feed speed 60 - 75 m/min. (197 - 246 ft/min.) - electrically driven infeed and pre-pressing rollers - stepless adjustment of the infeed and pre-pressing rollers, according to thickness and width of workpieces - pneumatically adjustable pressure shoe - length 1,580 mm (62 5/16") Item 1.5 Final Pressing Station with Cut-Off Saw HZ 41 - speed regulation by pre-pressing station - cut-off saw with stepless adjustable cut-to-length device and outpusher - electronic length measuring device - final pressing process lengthwise hydraulically, cross and top pneumatically - outfeed device pneumatically controlled, speed 13 m/min. (42 ft/min.), step-by-step movement Cut-off saw 2.2 kw (2.9 hp), 50 cycles Saw blade dia. 350 mm (13 3/4), bore dia. 35 (1 3/8") Length of workpiece min. 1,000 mm (39 3/8") (cut-to-length)max. 7,000 mm (275 9/16") Item 1.6 Storage Conveyor HZ 51 - behind final pressing station allowing some setting time for the glue-connection of the finger-jointed strips - drive by 1.1 kw (1.5 hp) motor, feed speed 9 m/min. (29 ft/min.) - outfeed movement step-by-step, controlled by the final pressing station - length 7,000 mm (275 9/16")
