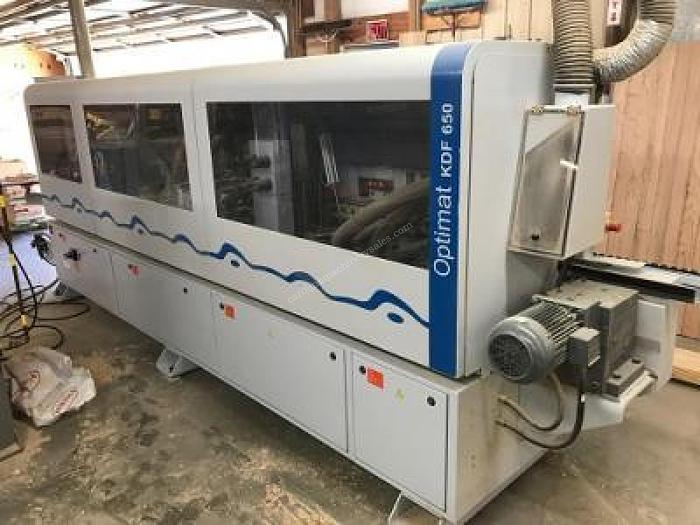

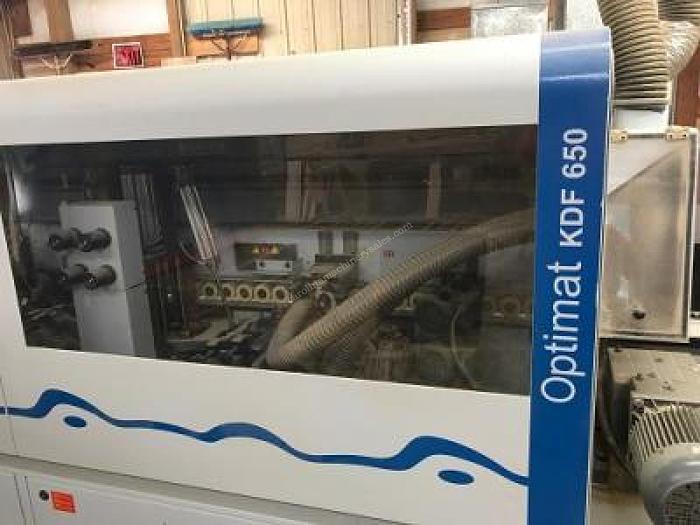

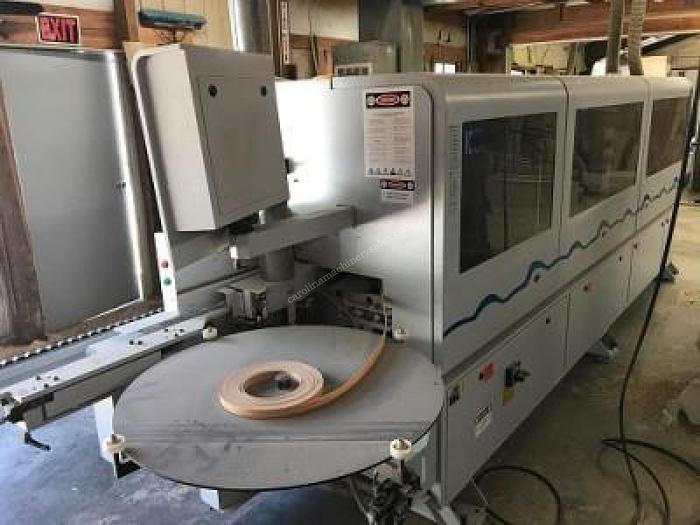

Brandt KDF-650C


Southeast USA



Stock Number007391
Voltage230/460V, 60Hz, 3Ph


This machine has low hours.  (less than 500 hours per seller). The current facility is not running the bander at this time.

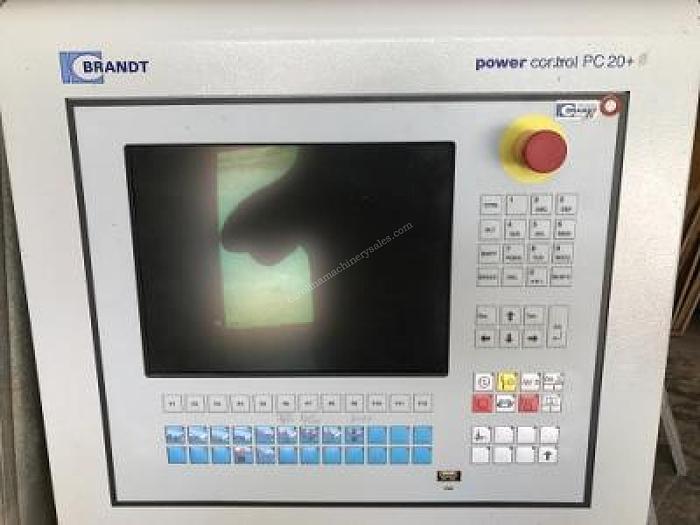

*Per seller: The monitor on the machine has an issue so we last ran it with a computer monitor we had here. Everything worked fine, I used a desktop monitor to view and operate the functions.

Manufacturer specs (to be confirmed)

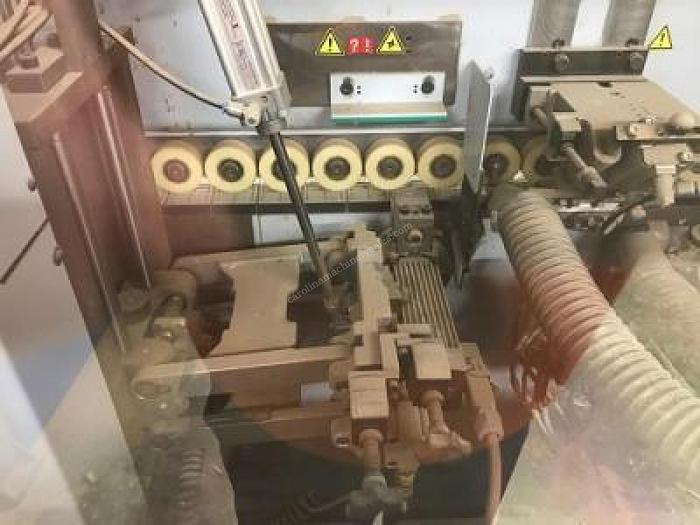

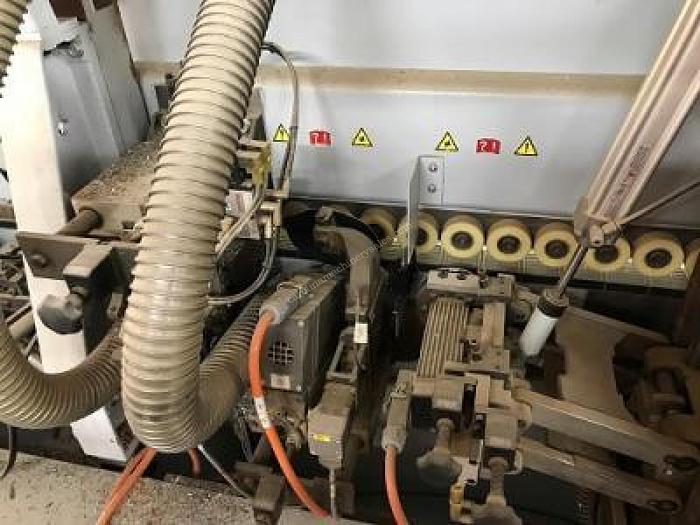

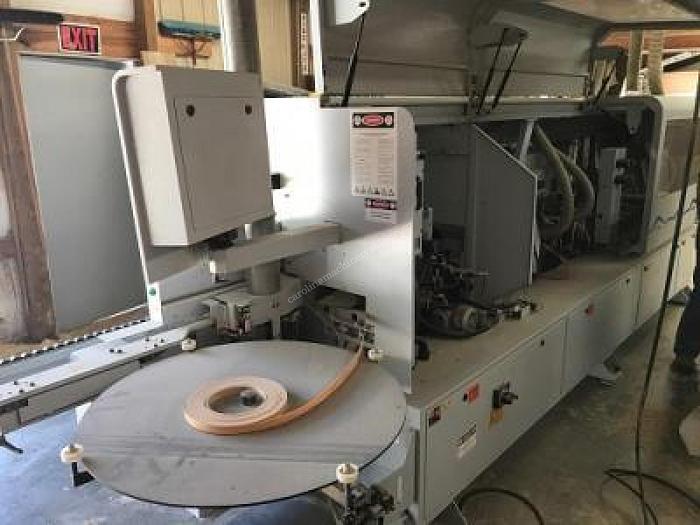

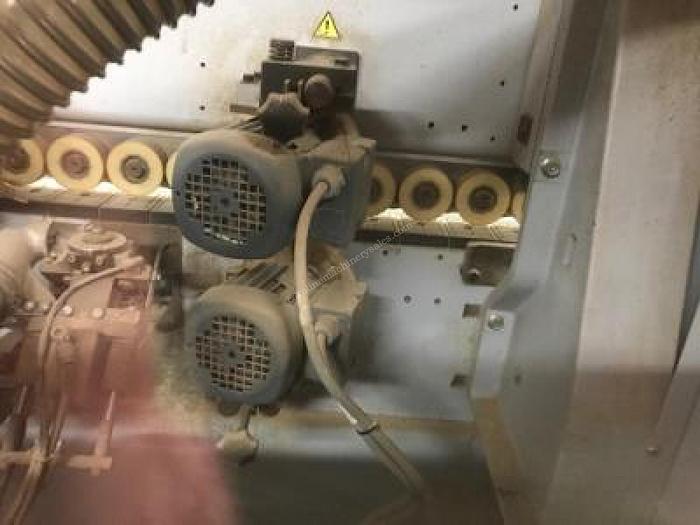

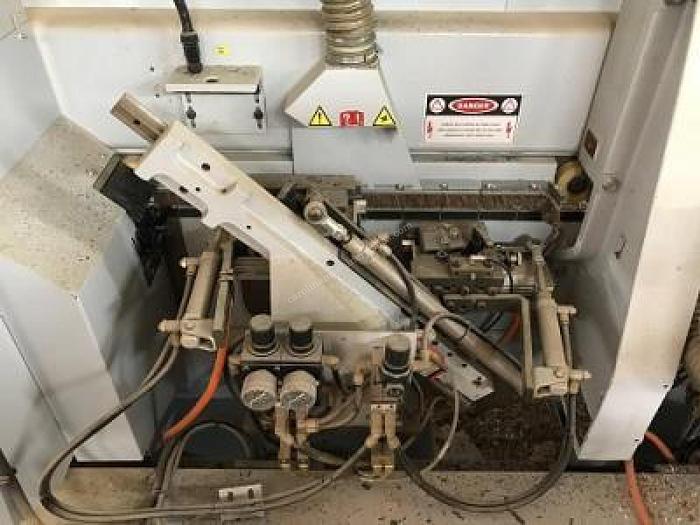

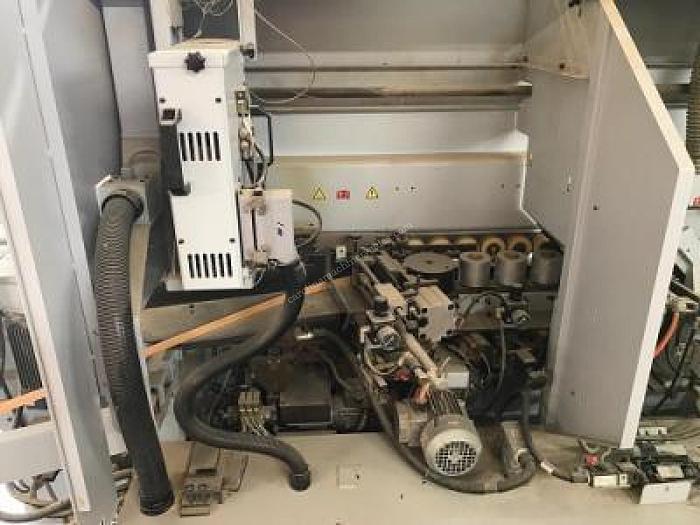

Although the machine is capable of running thicker panels, the pre-mill cutter heads on this machine are only 42 mm work height. Universal automatic magazine for strip and coil feeding. Large coil table Quick melt granulate glue application system with 12-minute heat up time. Quick change glue tank Strengthened precutter for cutting PVC Double motor end trim unit with straight and chamfer capability. Chamfer up to 15 degrees. Program controlled indexing from straight to bevel end trimming. Fine trimming with servo motor program controlled indexing. Contour trimmung unit Scraping unit for rigid PVC edges.  Program controlled indexing. Buffing Unit Electronic frequency changer for all trimming motors. Joint triming unit Pretrim of the piece, 2-motors, vertical spindle adjustment, horizontal positioning End trim station Fine trim unit Contour trim unit Scraping unit with knives Top and Bottom buffing unit Premill Corner Round Edgeband thickness 0.4-12 mm Edgeband height 12-60 mm Panel Length min 160 mm Panel width min 65 mm Panel thickness 8 - 55 mm Feed Speed 2-Speeds 16 m/min and 11 m/min Feed motor 3 HP Joint trim unit 3 HP End trim unit (2) 1/2 HP Fine trim unit 3/4 HP Profile trim unit (2) 1/2 HP Machine length 19' Machine width 6' Approx wieight 5,000 lbs
