Brandt KD-84-C

Location

Midwest

orCall 704-288-1904

Specifications

ManufacturerBrandt
ModelKD-84-C
Year1997
Stock Number007410
Voltage230V, 60Hz, 3Ph

Description

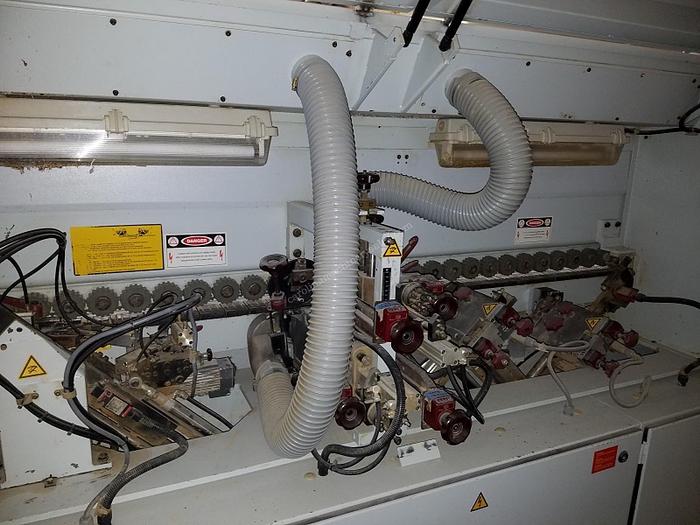

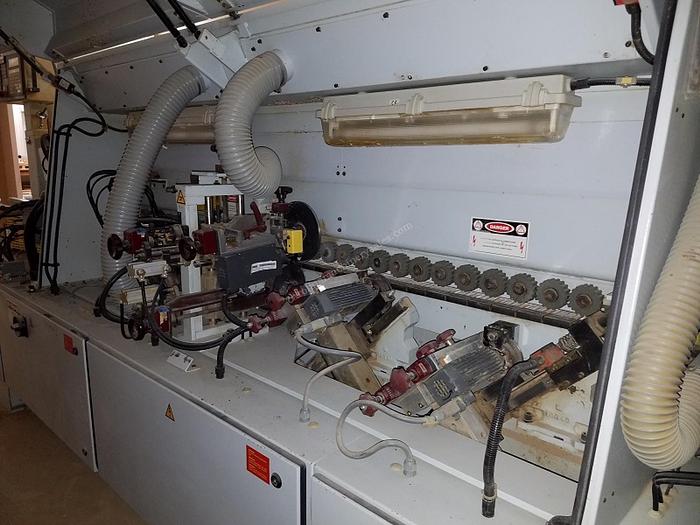

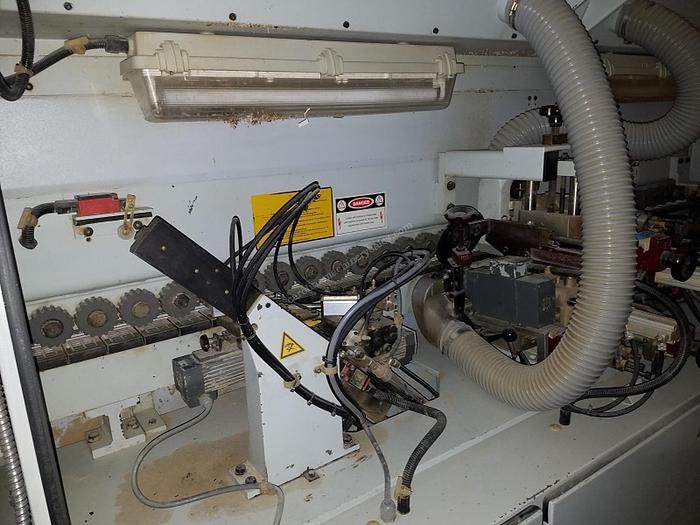

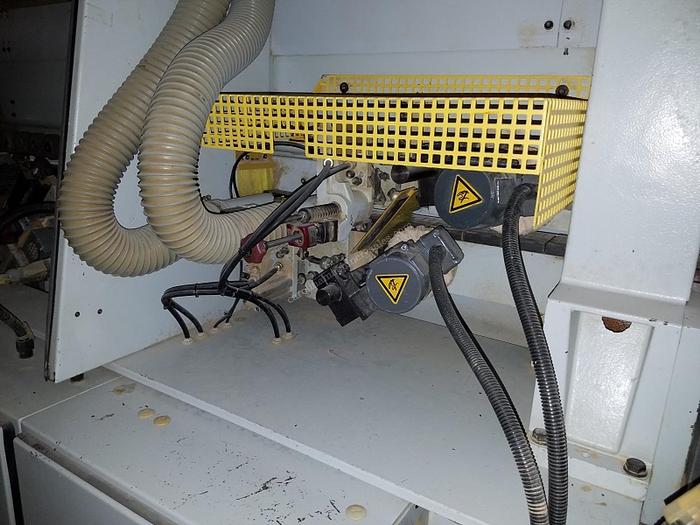

This machine is coming out of a small shop that is closing down.  Available immediately. Manufacturer specs (to be confirmed) 1/2" Edge cap., panel thickness 3/8" to 2-3/8", min panel length 6 3/8" and 2-1/2" min. width Equipped with Quick heat-up glue system w/overhead hopper feed Automatic magazine for strip and coil stock 3mm PVC guillotine (1) driven plus 3-idler roller pneumatically controlled pressure section with digital readout setting. Workstations Double motor end trim (.05 HP 12000 RPM) CHAMFERS 0 - 25 degree, top and bottom flush/raduis trim, bevels 0 to 25 degrees (.75 hp 12,000 RPM) with insert knives for 3mm PVC radius; 2 motor corner-rounding unit for top and bottom corners(0.5 HP 12,000RPM) motors; top& bottom scraping for 2-6 mm radius, pneumatically controlled blowoff nozzles; top & bottom buffing (0.25 HP  1,400 RPM). End trim & flush stations have high freq. Motors w/electronic brakes and are equipped with mechanical digital readouts for quick setup & adjustment Feed speed 46 FPM, 3 HP feed drive.
