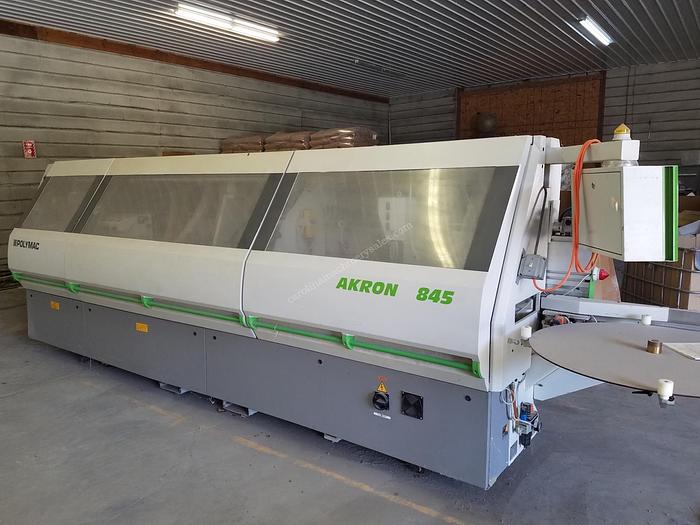

Biesse Akron 845

Location

Ohio

orCall 704-288-1904

Specifications

ManufacturerBiesse
ModelAkron 845
Year2006
Stock Number008062

Description

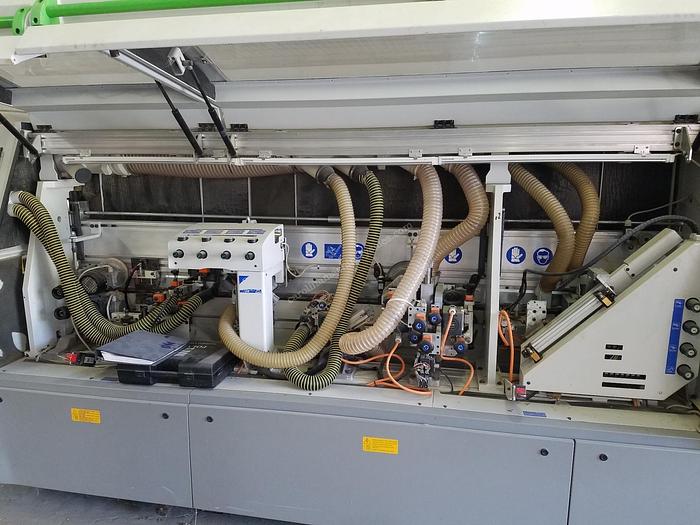

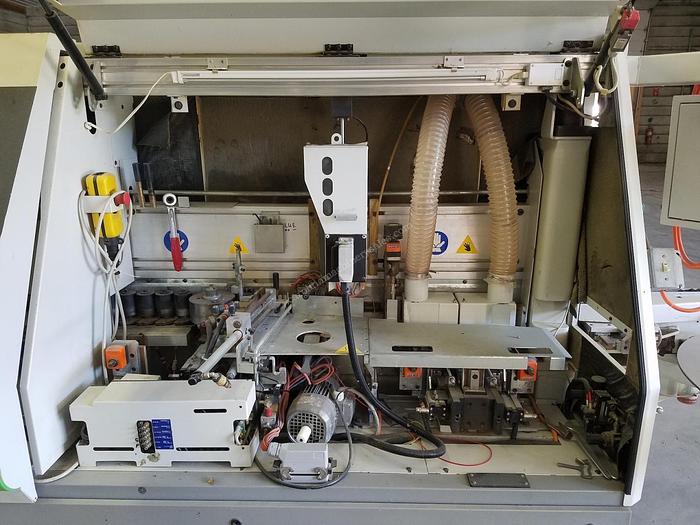

Edgebanding thickness capacity 0.4 mm - 3 mm Workpiece height capacity 10 mm - 60 mm (0.39"-2.36") Min panel length 140 mm (5.51") Feed speeds 10,15 and 20 m/min coil or strip edgebanding capacity Adjustable infeed fence 3" wide rubber padded table feed chain Adjustable hold down pressure beam with rubber contact rollers Outboard telescopic roller top panel support arm 1st station (2) counter rotating pre-milling heads - 1.8 kw (2.5 hp), 12,000 rpm Diamond tipped cutterheads 2nd station hot melt glue and edgebanding application, Top quick melt glue pre-heater system, Accepts pellet type glue Bottom teflon lined glue pot Reversible direction glue roller Pneumatic edgebanding guillotine with 3 mm PVC capacity (1) 5-1/2" diameter x 3" high main pressure roller with (5) 2-1/4" diameter x 3" high aux pressure rollers 3rd station End trimmers - 0.5 kw, 12,000 rpm drive motors, 0-15 degree cutting angle adjustment 4th station top and bottom tilting trimmers - 1.8 kw (2.5 hp), 12,000 rpm trimmer motors, 0-30 degree tilt of heads 5th station front and rear corner rounding - 0.85 kw, 12,000 rpm drive motors 6th station top and bottom radius scrapping heads, Pneumatic jump control of station 7th station top and bottom flat surface scrapping heads 8th station top and bottom buffing heads - 0.37 kw (0.5 hp), 2800 rpm Sound and safety enclosures around all stations Front flip up hoods with inspection windows Mechanical digital readouts for station set up 3 kw feedworks drive motor Top interior dust collection line with 7" dust pipe outlet Front operator control station CNI controller with electronic digital display and soft touch keypad
