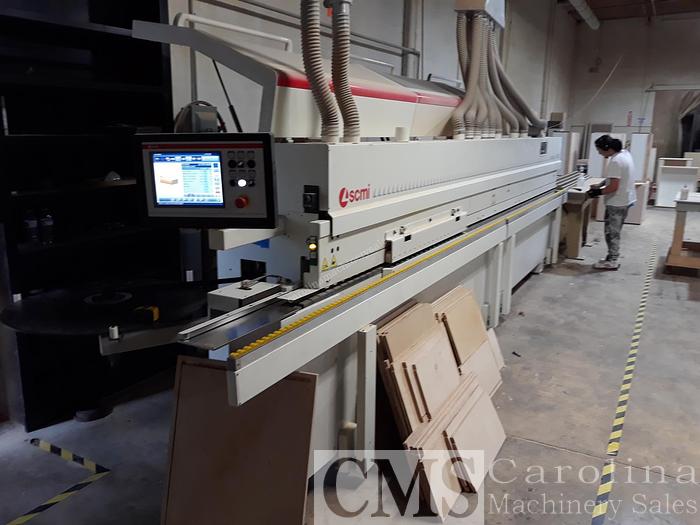

SCMI S1000 T-ERL

Location

United States

orCall 704-288-1904

Specifications

ManufacturerSCMI
ModelS1000 T-ERL
Year2012
Stock Number008202
Voltage230V, 60Hz, 3Ph

Description

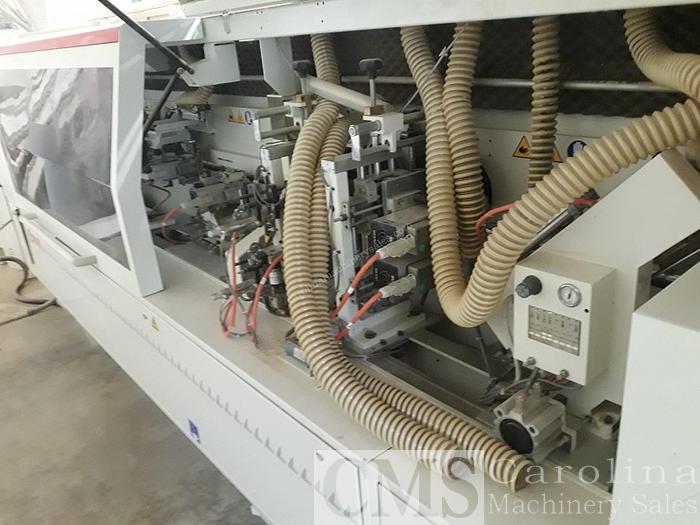

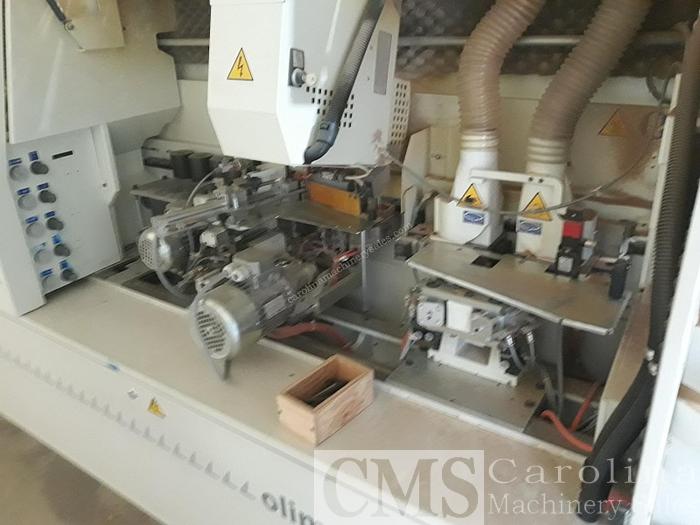

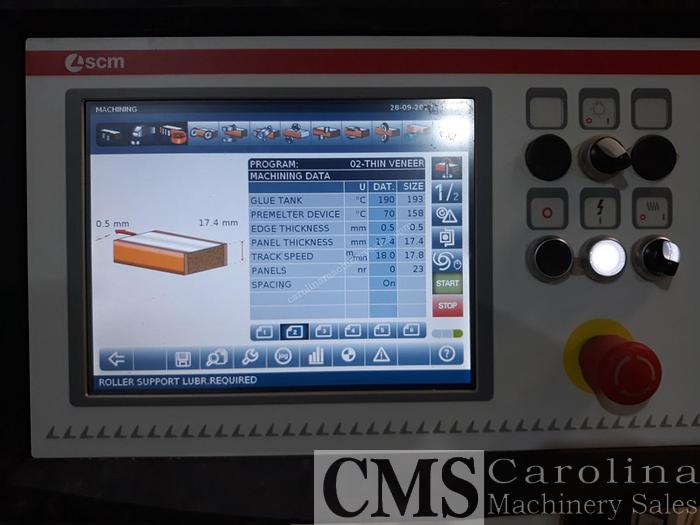

15/32" (12 mm) Max. edge cap., 2" max. (w/corner rounding only 1-3/4") banding height, 2-3/8" min. panel width and 6-5/16" min. length. Equipped with Automatic strip & coil feed magazine w/Heavy Duty 3 mm PVC cap. guillotine. Teflon coated glue pot with glue roller application system complete w/automatic recycling device for unused glue, digital thermostat adjustment for temperature control. 3-Roll pressure unit w/pneumatic controls for all pressure rollers. Workstations "RM-K" 2-Head Pre-milling station model (2.5 HP - 19,000 RPM motors ea.).Pre-mill Station, Double motor front & rear end trim (0.4 HP - 12,000 RPM motor ea.), tilts 0° - 15°, end trimmers mounted on 45° THK guide. Top & bottom flush trims (0.8 HP - 12,000 RPM motor ea.), bevels 0° - 15°. Top & bottom fine/radius trimmer (0.8 HP - 12,000 RPM motors) w/pneumatic positioning from control panel. 2-Motor Corner Rounding units for top & bottom of leading & trailing corner when edgebanding all (4) sides (two 0.5 HP - 200 Cy motors ea.). Top & bottom PVC Scraper for up to 5 mm radius. Top & bottom buffing unit (0.33 HP - 2,800 RPM motors). Hot Air Heating Unit For restoring color on scraped PVC edges. Feed & Speed Single 42 FPM fixed feed speed, 1 HP drive; heavy 3/4" drive chain with chain pads traveling on round & flat tracks. Complete with Microprocessor for line control & glue temperature (can store up to 50 preset programs), swivel control panel. Pneumatic positioning of super finish, full cover sound enclosure. 200 Cy - 5 kW Frequency inverter w/automatic motor brakes for all HF motors;
