Weeke Profiline BHC 500 CNC

Location

South, USA

orCall 704-288-1904

Specifications

ManufacturerWeeke
ModelProfiline BHC 500 CNC
Year2004
Stock Number008157

Description

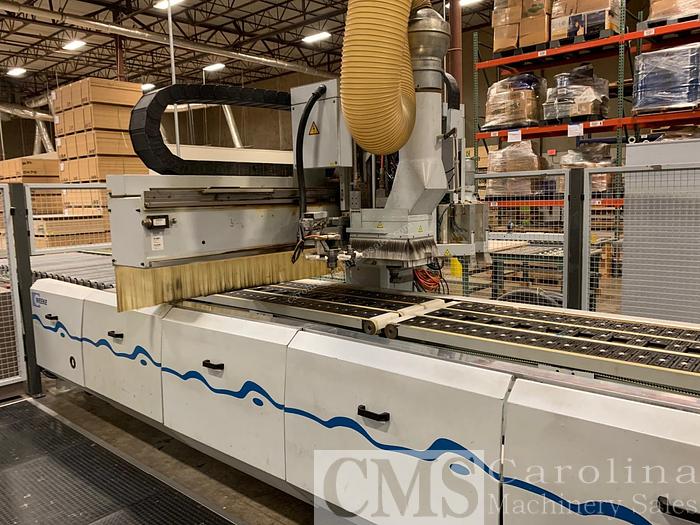

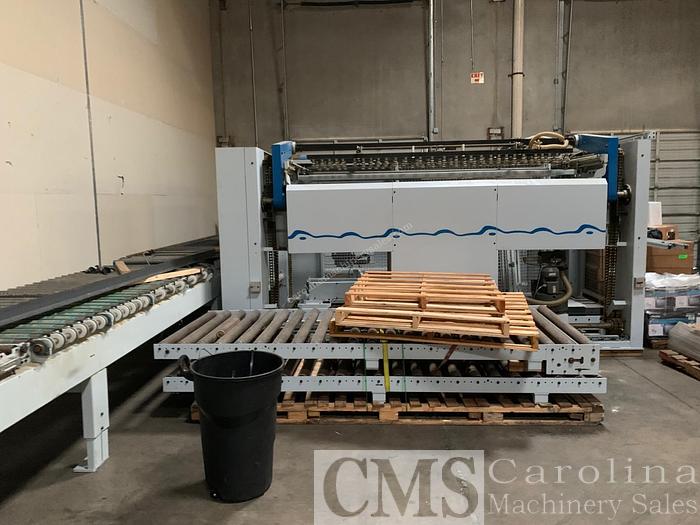

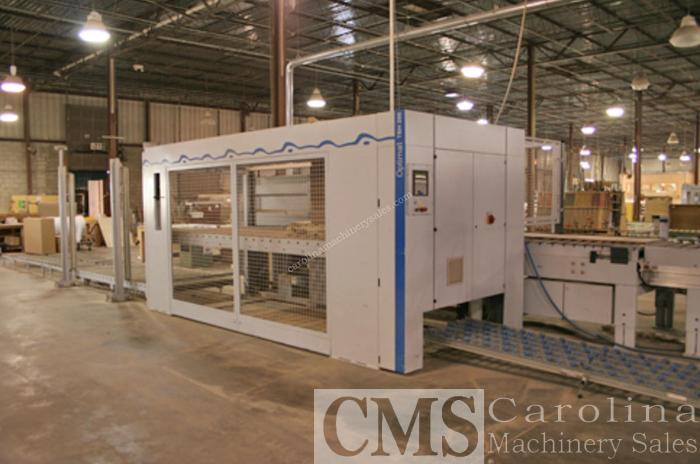

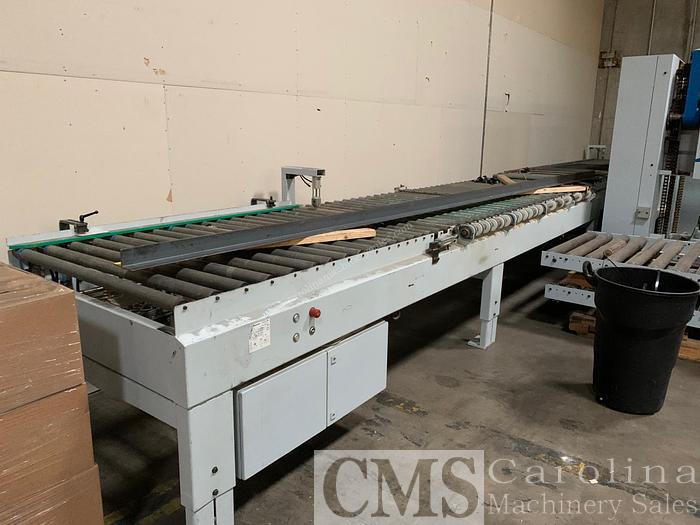

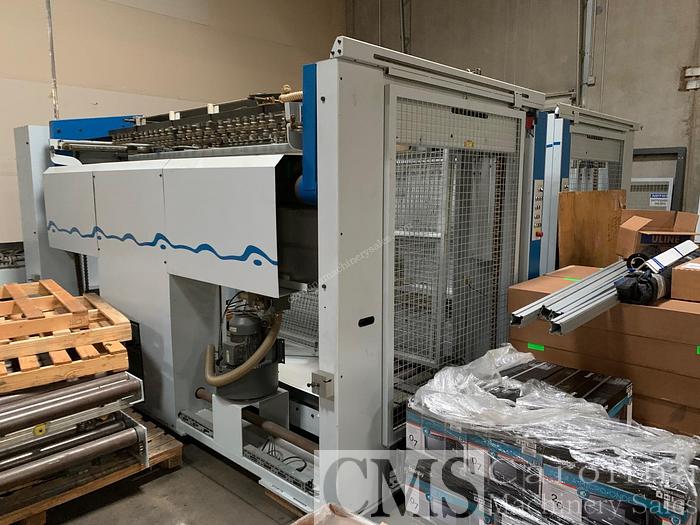

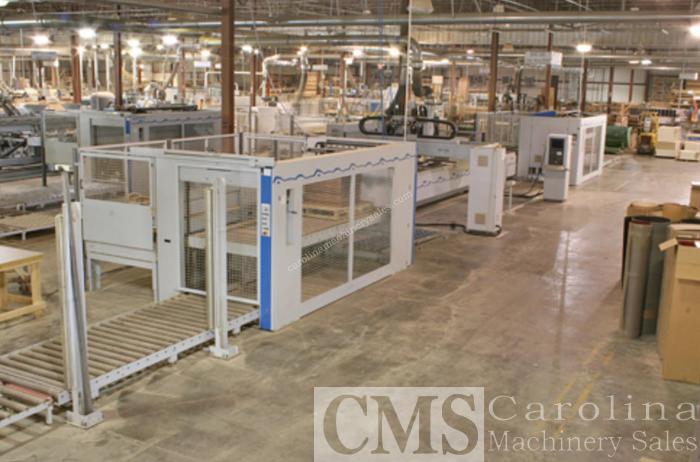

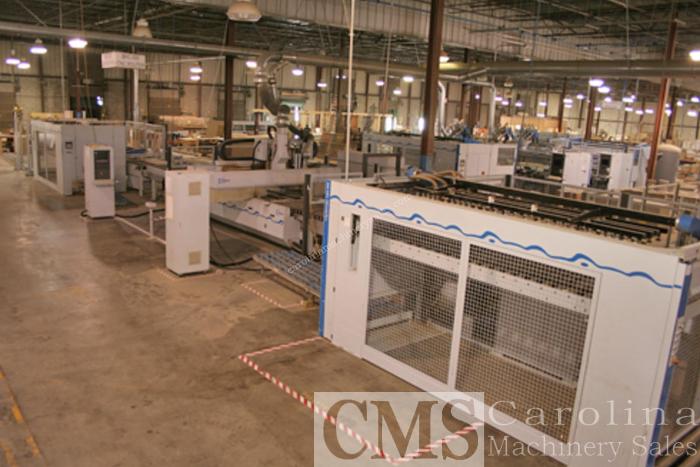

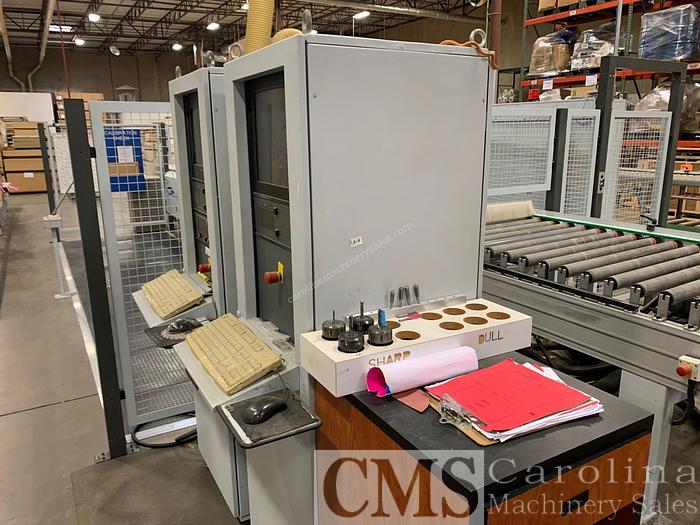

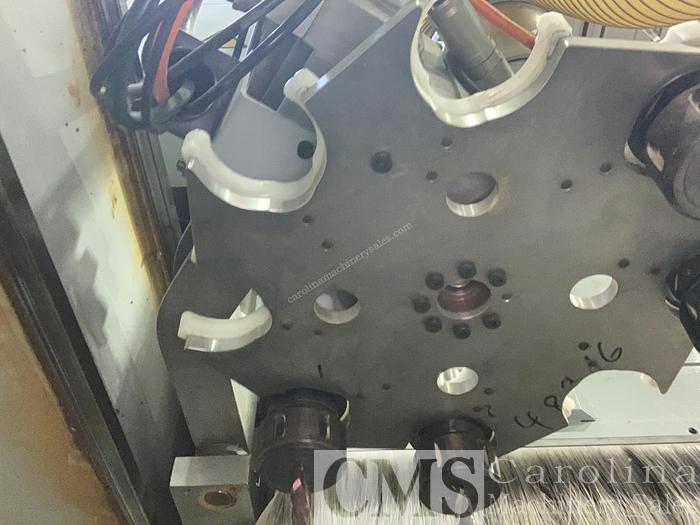

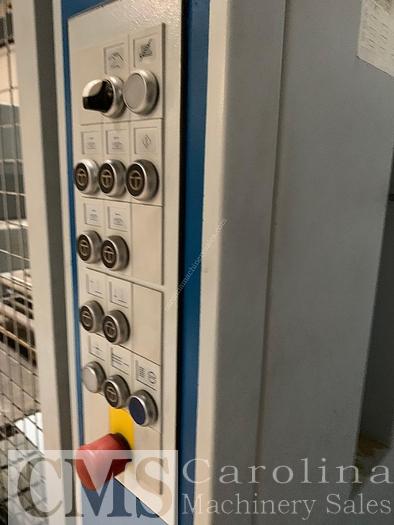

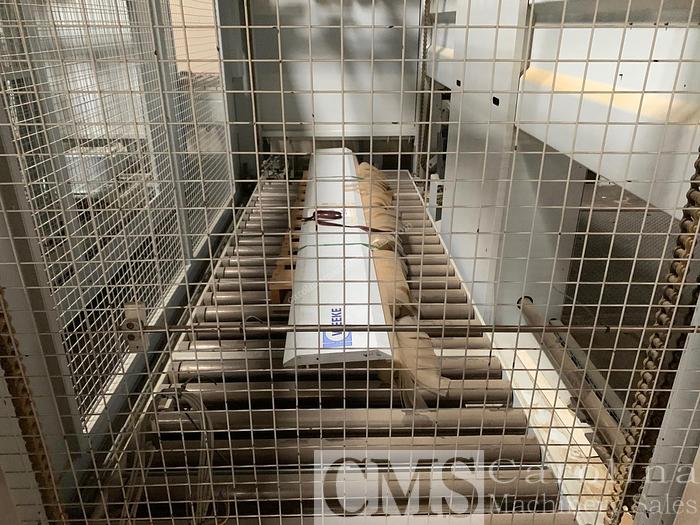

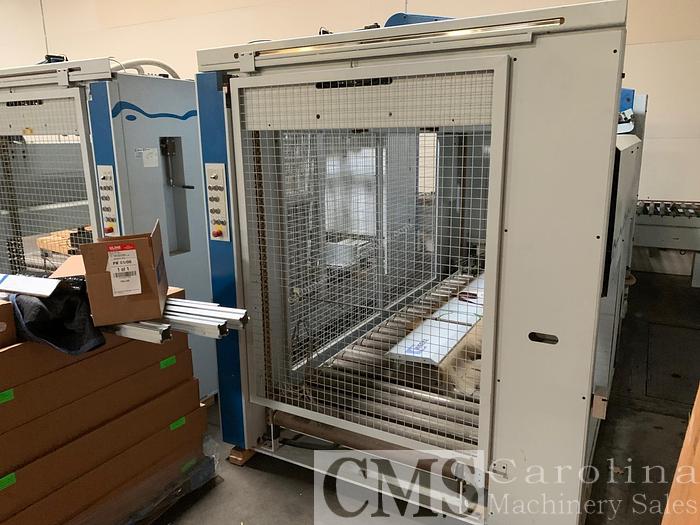

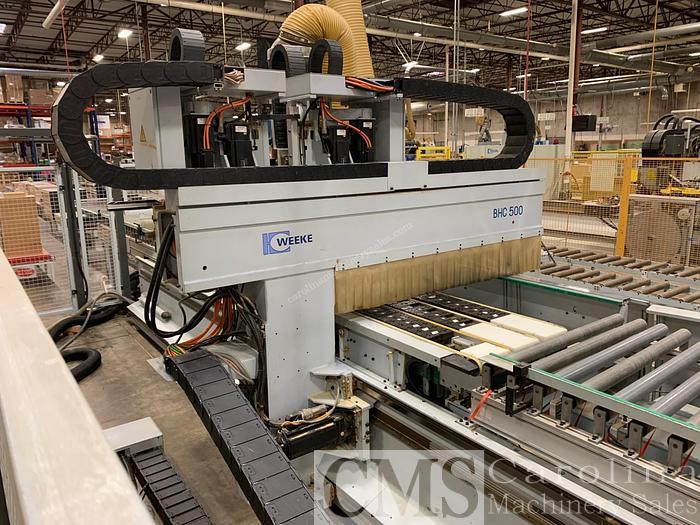

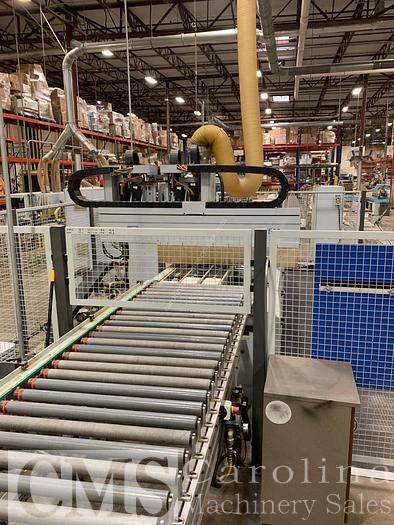

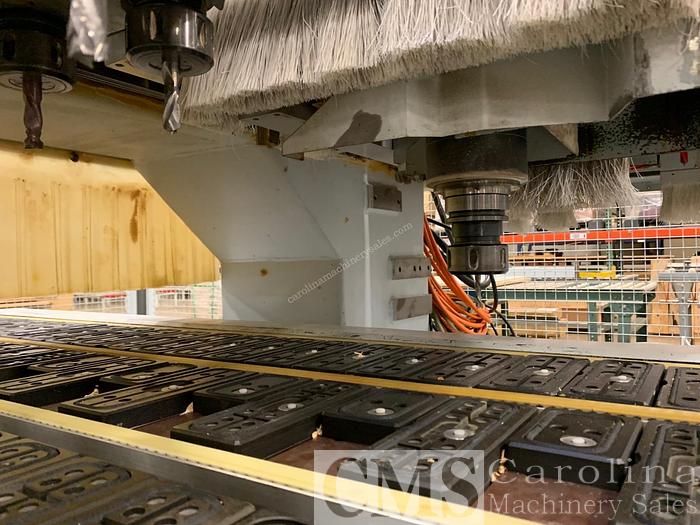

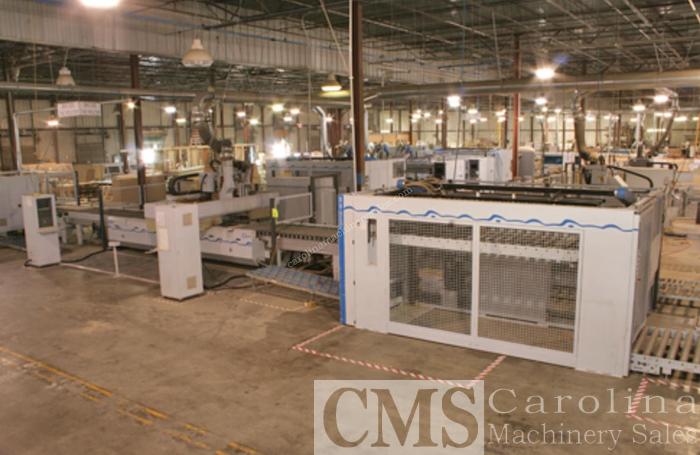

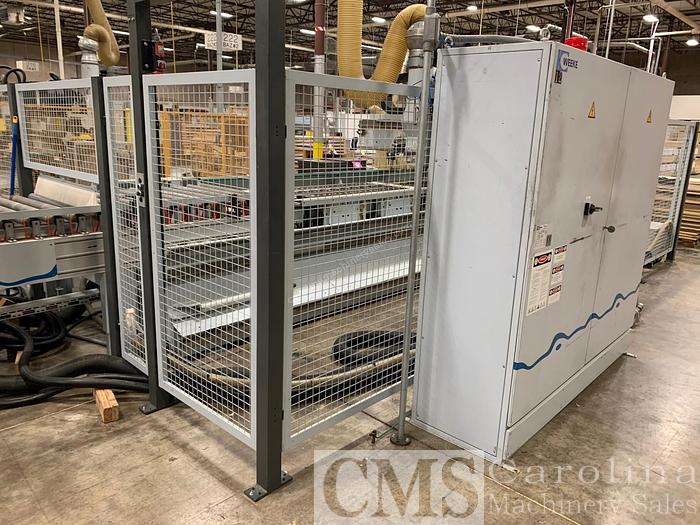

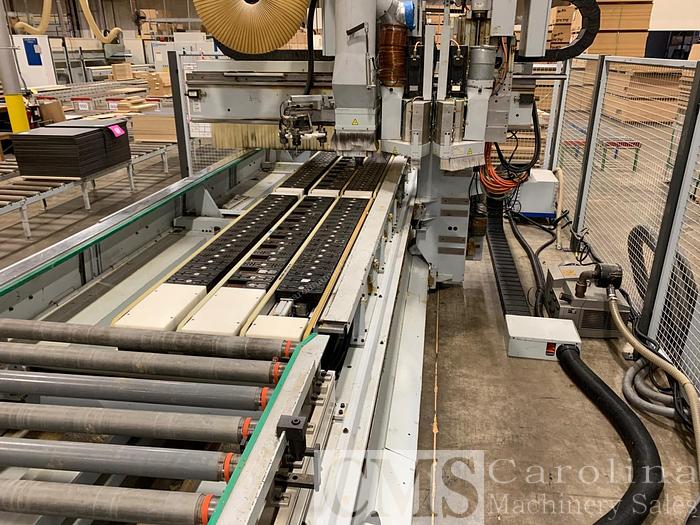

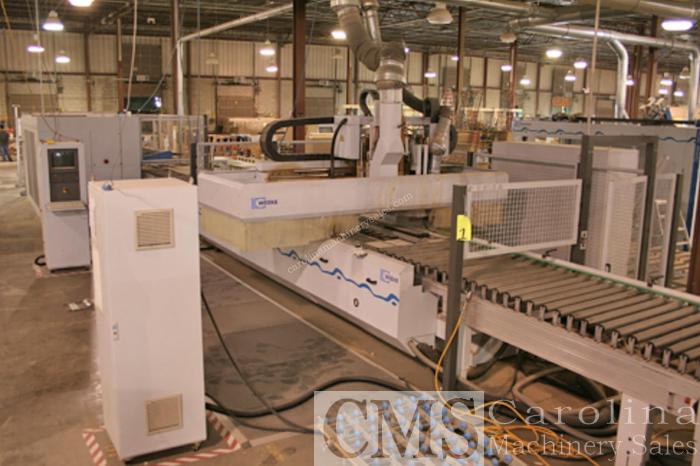

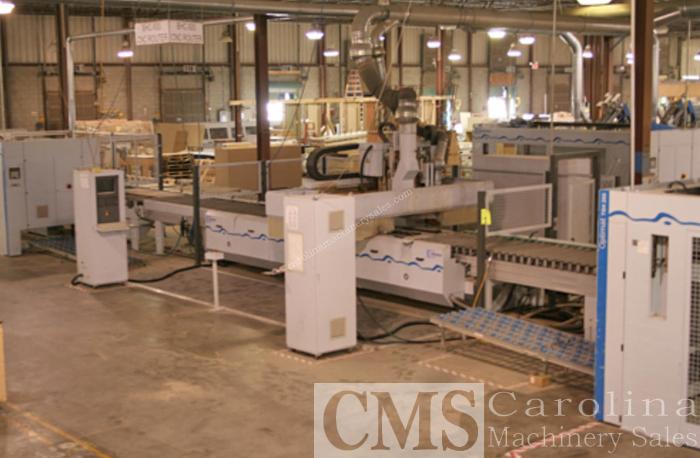

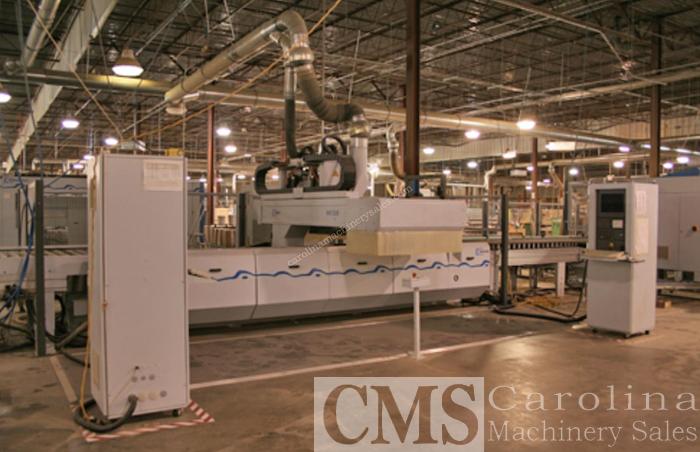

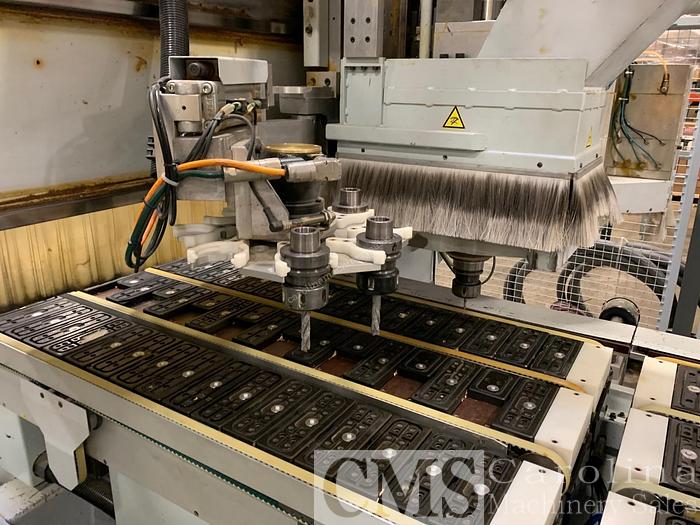

This system is used daily and available for inspection. Manufacturer specs (to be confirmed) WEEKE CNC MACHINING CENTER LINE Including Bargstedt Type Optimat TSH200 Panel Unstacker/Feeder - Panel Length Range 120" Maximum - 8-11/16" Minimum, Panel Width Range 48" Maximum - 8-11/16" Minimum, Panel Thickness Range 1-9/16" Maximum - 1/2" Minimum, Maximum Stack Weight 7,716 Lbs. Bargstedt Type TFR60 Transfer Roller Conveyor Weeke Type Profiline BHC-500 CNC Machining Center - Part Size Capability; Length 120" Max./13.7" Min., Width 39.3" Max./5.9" Min., Height 1.1" Max./.6" Min., Axis Stroke 169"-X, 65.9"-Y, 5.3"-Z, Working Length 128", Working Width 40", Maximum Panel Thickness 2", 9-KW Liquid Cooled Router Motor, Router Spindle Speeds 1200-18,000 RPM, HSK63 Spindle Taper, 8-Position ATC, Vertical Drilling Spindles 25x2, Vertical Drilling Speeds 1500-5000 RPM, Horizontal Drilling Spindles 8, (4) Panel Support Benches Each w/ (10) Vacuum Pods, Vacuum Power Supply, Weeke 2000-IPC Windows Based Operating Control System Bargstedt Type TFR60 Transfer Roller Conveyor (2004) Bargstedt Type Optimat TSH200 Panel Stacker, (2003), Panel Length Range 120" Maximum - 8-11/16" Minimum, Panel Width Range 48" Maximum - 8-11/16" Minimum, Panel Thickness Range 1-9/16" Maximum - 1/2" Minimum, Maximum Stack Weight 7,716 Lbs.
