SCMI 5-Axis CNC Router

Location

Southwest USA

orCall 704-288-1904

Specifications

ManufacturerSCMI
Model5-Axis CNC Router
Year2006
Stock Number008053

Description

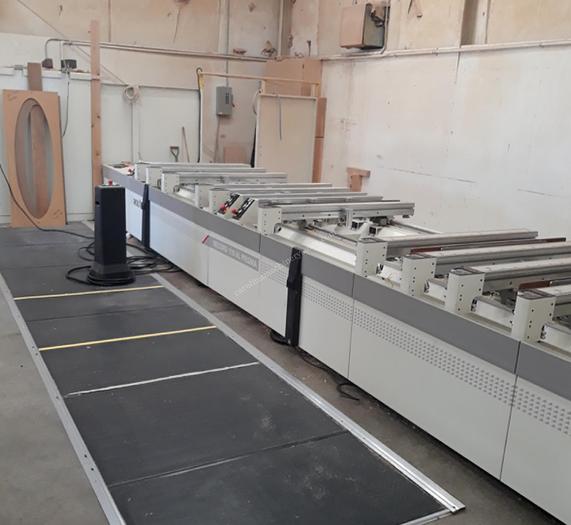

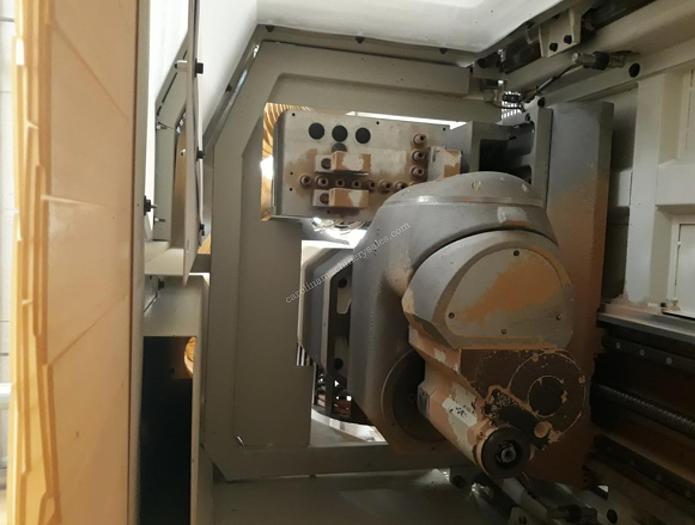

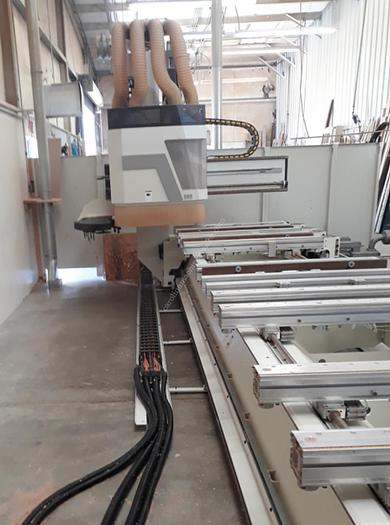

This machine has low hours and is ready to ship. 2006 SCMI Record 110 Working capacity "X" axis 240.5" (6,110 mm), "Y" axis 51.4" (1,306 mm), "Z" axis stroke 17.3" (440 mm), 7.8" (200 mm) max. material thickness Positioning speed "X" axis 262 FPM (80 MPM), "Y" axis is 180 FPM (55 MPM), "Z" axis is 98 FPM (30 MPM) Worktable (10) TVN Tubleless adjustable panel supports with pneumatic locking & LED position indicators, (2)vacuum pods each suport.(10) pneumatic pop-up front stops, (2) side stops & (2) center stops create (4) independent working zones; guided set-up assistance with LED's according the program selected Boring unit 2.3 HP (1.7 kW) motor - 4,000 RPM; (12) Independent vertical boring spindles with (6) spindles in "X" axis & (6) spindles in "Y" axis;(6) horizontals spindles with (2+2) in "X" axis & (2+2) in "Y" axis; (1) "X" axis grooving saw for max 120 mm dia. blade, 3.500 - 7,500 RPM. Machining unit (1) 11 HP (8.5 kW) "5-AXIS" electro-spindle router with HSK F63 adaptor, rotation speed from 900 - 24,000 RPM,Constant torque achieved at 12,000 RPM; controlled by static inverter for stepless speed & rapid shutdown rotation. (1) Rapid 12-position ATC plate tool changer; center distance between tools is 104 mm (4.11"), max. tool weight is 8 kG (17.6 Lbs)
