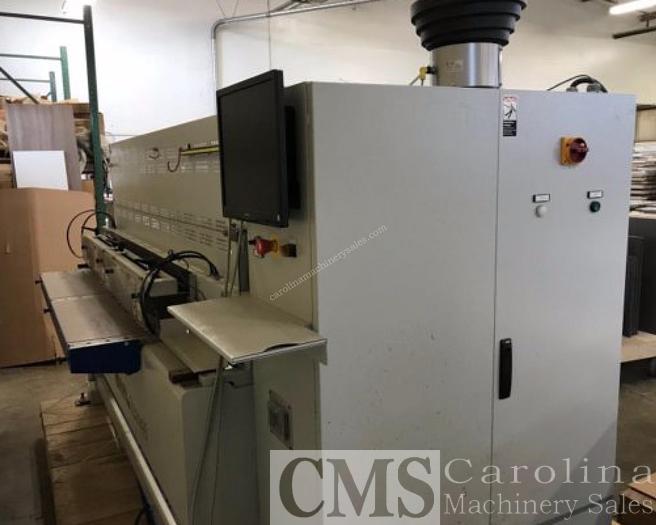

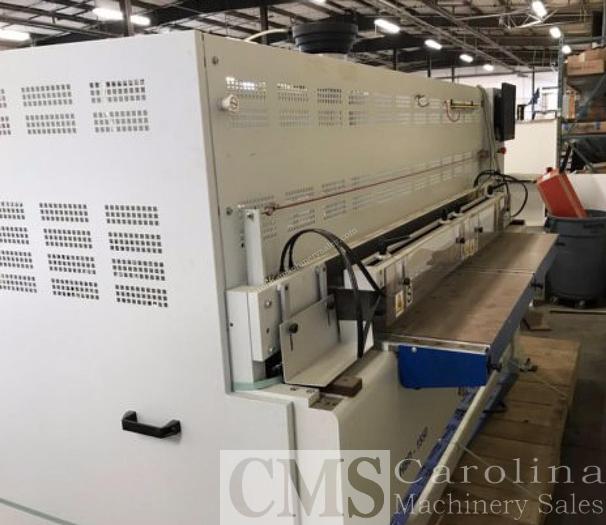

OMAL HBD 1550

Location

Texas

orCall 704-288-1904

Specifications

ManufacturerOMAL
ModelHBD 1550
Year2014
Stock Number007979
Voltage220V, 60Hz, 3Ph

Description

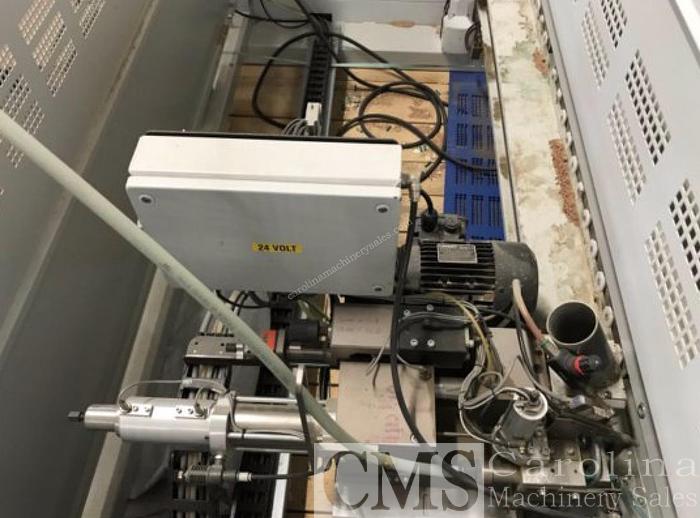

This machine is still under pwoer and ready to be removed from service. Manufacturer specs (to be confirmed) Four working areas Auto selection of the working reference (left, center left, center right, right) Center and side reference fences excludable Four double clamps to hold panels either vertically or horizontally for edge or face processing Glue injection system with precision metering of the glue plus checks to make sure glue is shot Standard set up for 8 x 35mm dowel The OMAL “SURE SHOT” revolver system guarantees a dowel is inserted every time! Fiber optic sensor to check if next dowel is ready Programmable in X axis – equipped with brushless motor & alpha gear reducer for precise and quick positioning Movement of the carriage is on linear rails with square guides and transmission by rack and pinion. 10′ long part using alternate referencing Single or double drill, glue and dowel insertion unit(s) Two way clamps hold panels horizontal and vertical for face boring
