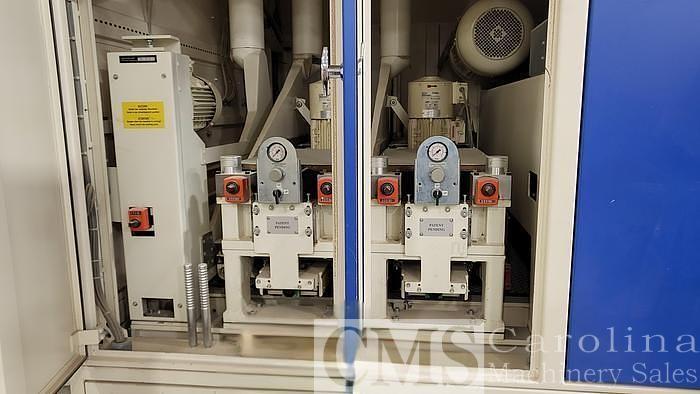

2005 Heesemann LSM 8/3-OSR

HEESEMANN LSM-8/3-OSR Wide Belt Finishing Sander

52" and (3) Heads; Equipped with: (1) longitudinal segmented platen head. and (2) Orbital Platens

Machine equipped with HEESEMANN's patented "CSD" selective pressure adjustment system, sensors placed every 16 mm (5/8") The computer control will hold a maximum of (20) programs.

1st Head: Longitudinal segmented platen head.

• Segmented Polishing Platen, 20 & 27 HP dual speed motor.
• Electronically controlled segments to conform to panel size
• 2620 x 1350 mm (91.4 x 53.2") Sanding belt.

2nd & 3rd Heads: OSR Dual orbital action head with

• (1) high-speed orbit on sanding pad, powered by 3 kW (4.5 HP) motor.
• Secondary oscillation movement of platens powered by 1.5 HP motor. Upstream and downstream vacuum chutes on each head for dust localized dust pickup.
• Platens feature "quick change" abrasive material; Both orbital heads with variable speed inverter drives.
• Out feed Rotary Brush with cleaning brush loading with single end adjustment , 6" max. dia., 3.4 HP motor.
• Variable feed speed from 13 to 82 FPM, 6.5 HP feed drive.
• In feed and out feed Scissor Lift and Control box shown are not included.
• Motorized thickness opening 1/4" to 3-5/32" max. -
• Power Consumption: 63 KW, 75 Amps.
• Separate display console for CSD control.
