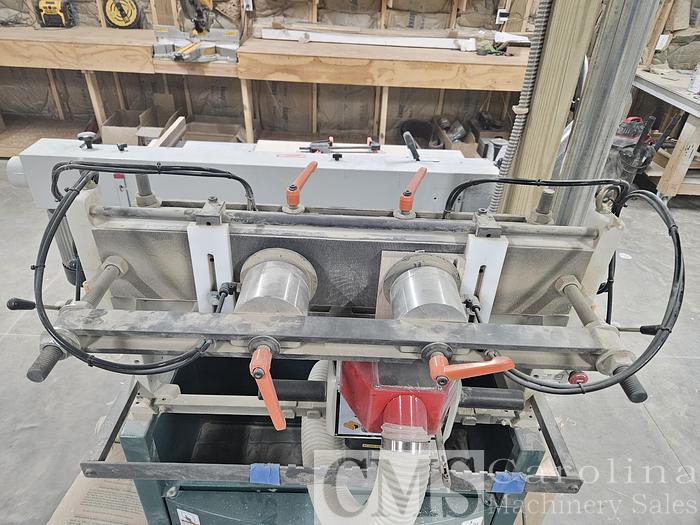

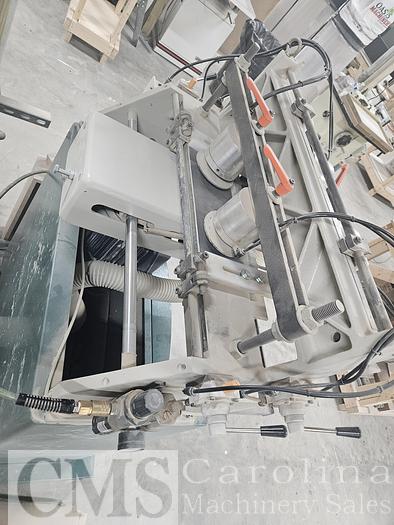

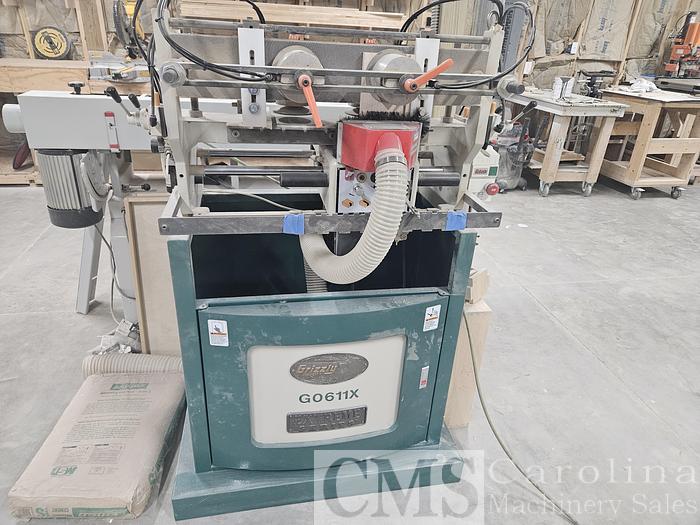

Grizzly G6011X Dovetail Machine

GRIZZLY SPECIFICATIONS:

• Motor: 1 HP, 110V/220V (prewired 220V), single-phase, 10A/5A
• Number of spindles: 1
• Spindle speed: 18,500 RPM
• Dovetail bit: 10° angle x 5/8" long
• Dovetail shank: 1/2"
• Maximum dovetail height: 3/4"
• Minimum dovetail height: 3/16"
• Maximum thickness: 2-3/8"
• Minimum thickness: 13/32"
• Maximum stock size: 16-1/2" W x 59" L
• Minimum stock size: 2-3/8" W x 7-7/8" L
• Table size: 24" W x 7-3/4" L
• Floor to table height: 46-7/16"
• Overall Dimensions: 38-5/8" W x 26-1/2" D x 56-7/8" H
• Approximate shipping weight: 539 lbs.

FEATURES:

• Precision-milled cast-iron table frame
• Cast aluminum carriage
• Steel stand
• Hardened and ground chrome steel slide ways
• Ball-bearing linear guides
• Four-way dovetail template
• Micro-adjustable spindle head
• Workpiece stops
• Quick air-cylinder clamp, air filter/regulator/lubricator with pressure gauge
• 4" dust port
• Spring-loaded carriage for smooth operation
• Magnetic switch with thermal overload protection.
