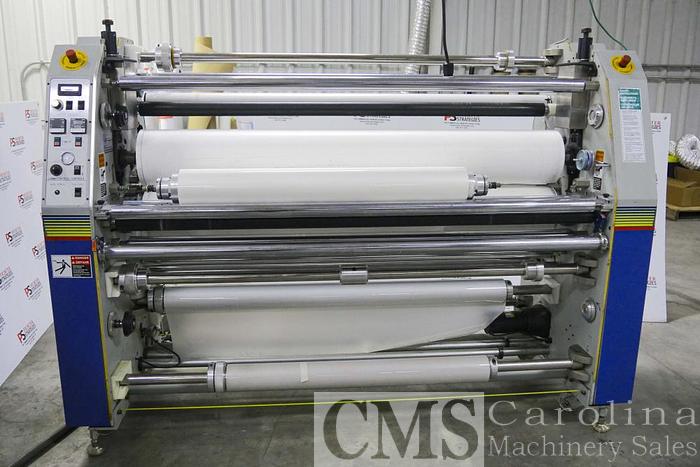

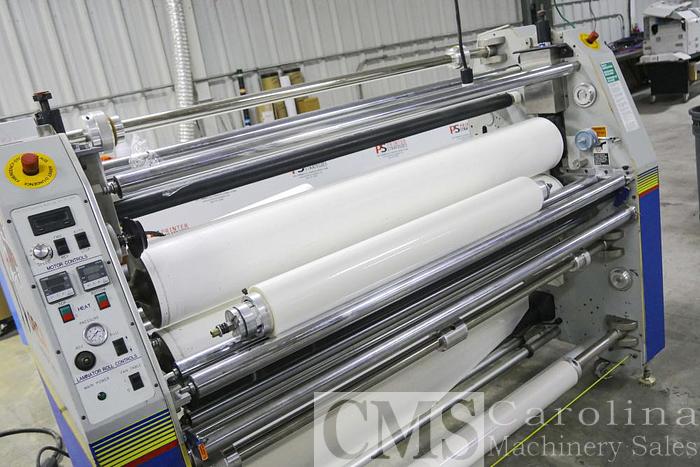

GBC Pro-Tech Orca III 60" Large Format Hot / Cold Laminator

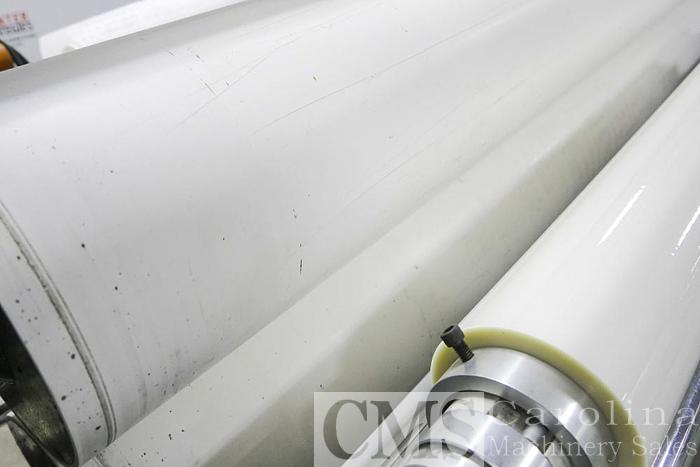

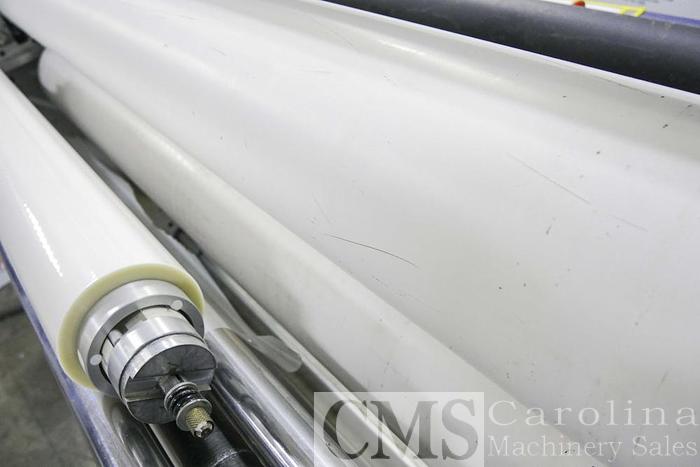

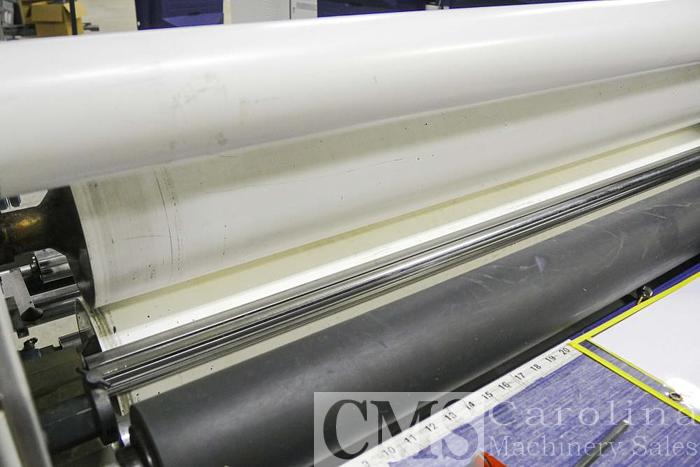

Laminating Rolls: 61" (155 cm) roll face with thermally conductive high release silicone surface; upper and lower main rolls internally heated; temperature controlled by state-of-the-art infrared sensors and digital PID controllers

Laminating Opening: 1.5" (3.8 cm) maximum opening controlled with dual air cylinders.

Laminating Material Uses heat activated and pressure-sensitive materials 0 - 55" (0 - 140 cm) wide on a 3" (7.6 cm) ID core

Laminating Speeds 0 to 14.5 fmp (0 to 4.5 mpm)

Post Lamination: Fanless cooling system provides uniform, filtered air for thermal shock without exposure to dangerous fan blades.

Vinyl Transfer Complete roll to roll transfer, lamination, and edge trimming in one pass

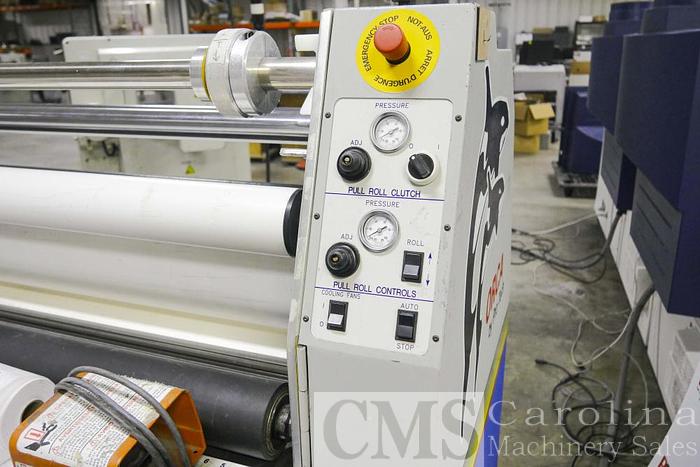

Safety Features • Two emitter-receiver photoelectric systems protect rolls from damage. • Emergency kick cables front and rear. • All electrical and moving mechanical parts are located in bolted cabinets • Four emergency stop buttons

Installation Requirement 220 to 240 VAC, 50/60 Hz, 55A. 32 A per phase.

Air: 2 cfm at 100 psi, minimum(0.5 m3 at 700 vPa)
