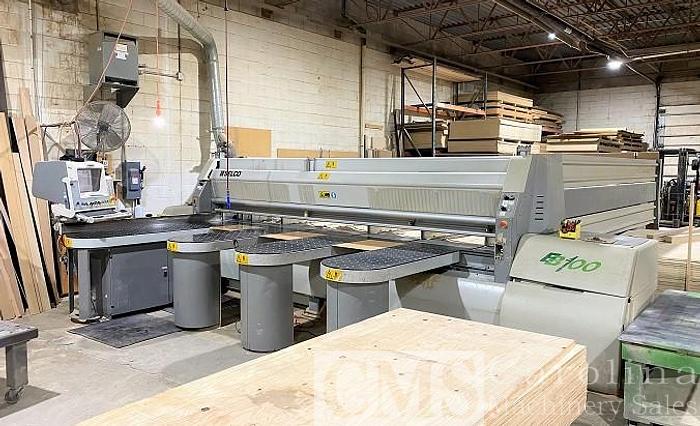

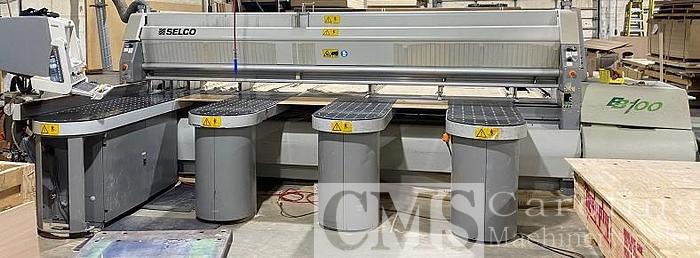

2004 Biesse Selco EB 100



orCall 704-288-1904


ModelSelco EB 100
Stock Number010853


Capacity overall cutting length 3200 mm (128").

Cutting height 100 mm saw blade projection.

18 HP main and 3.6 HP scoring motor.

Modular roller rear machine table.

Side aligning device for squaring ripped strips out to 74".

Variable saw carriage travel speed 0-328 FPM.

328 FPM return.

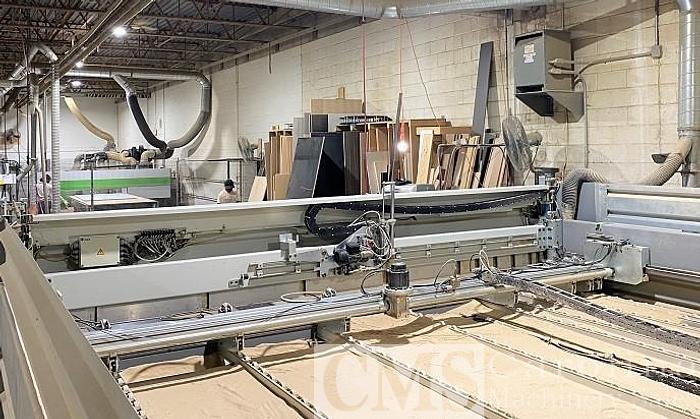

Electronically controlled overhead program fence.

Rack & pinion driven.

Forward speed 196 FPM.

Return speed 196 FPM.

6 clamps (open up to 100 mm), of which (2) are closely spaced in crosscut area for strip handling and the other (4) are at equal distance in rip cut area.

AC Servo motor drives on both saw carriage and pusher fence.

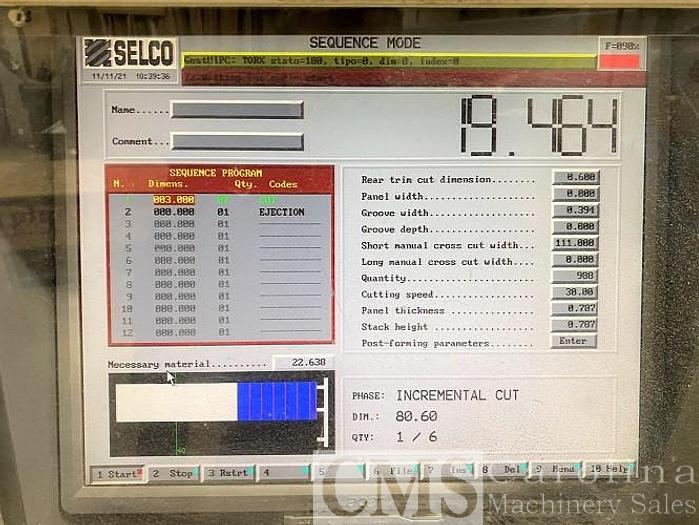

"Gateway" PC controller w` monitor and >assist line> w`LED readout integrated into high tech look operator control panel (displays cutting dimensions & patterns).

Data input by keyboard or direct downloading from office PC.

Side Crosscut aligner.

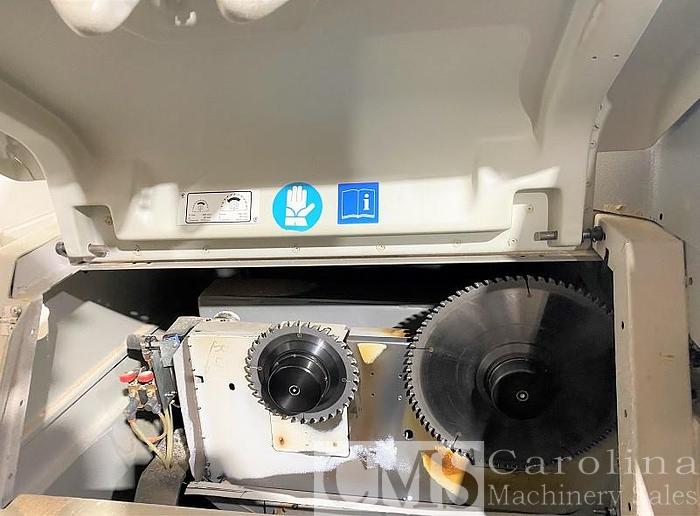

"Quick Change" saw blade replacement system.

(3) front mounted air floatation tables with patented rounded front for moving panel from rip to crosscut position (24" x 79" each).
