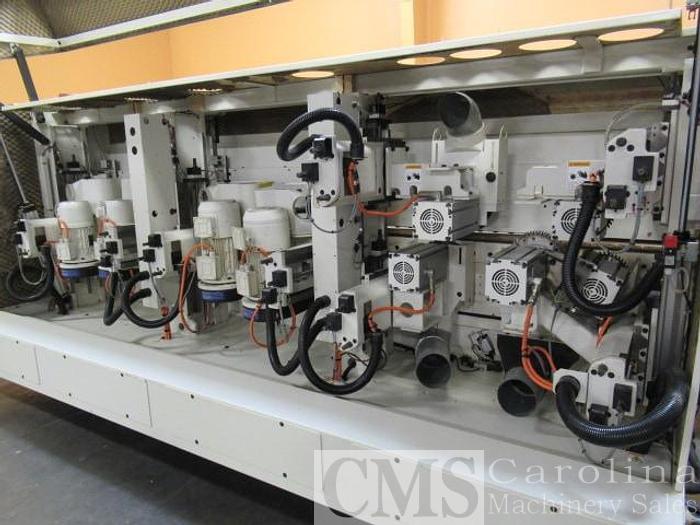

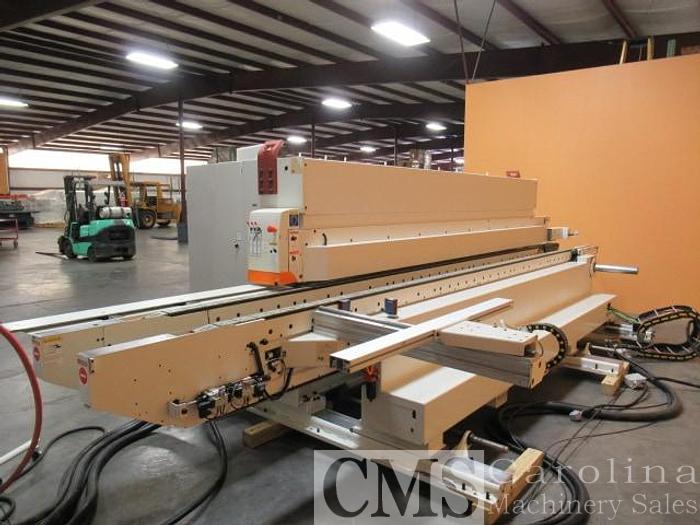

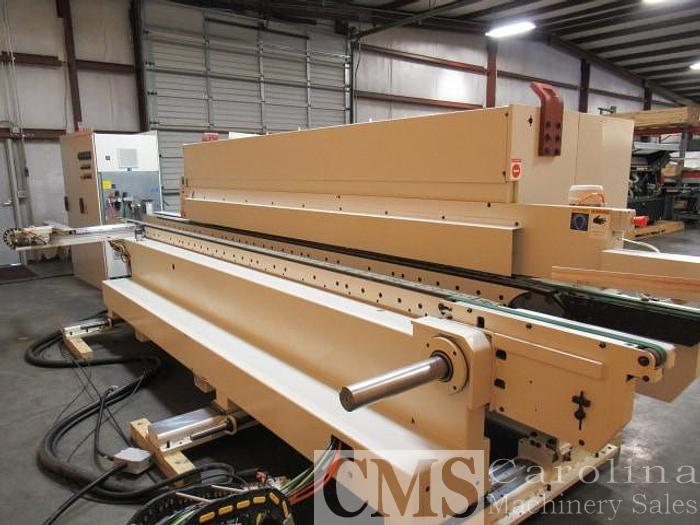

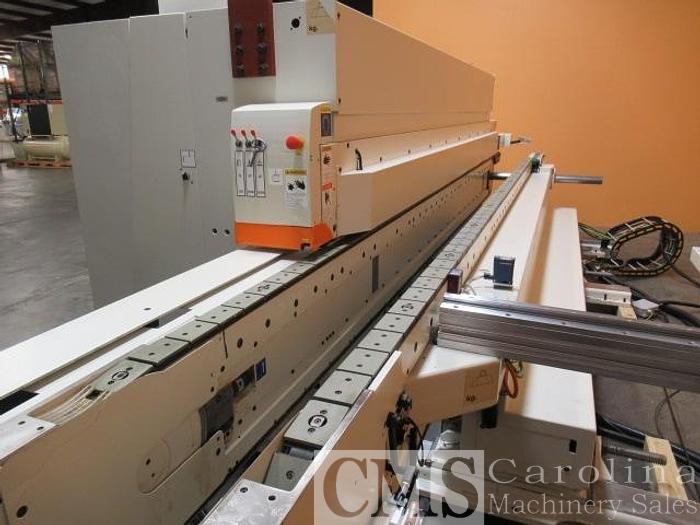

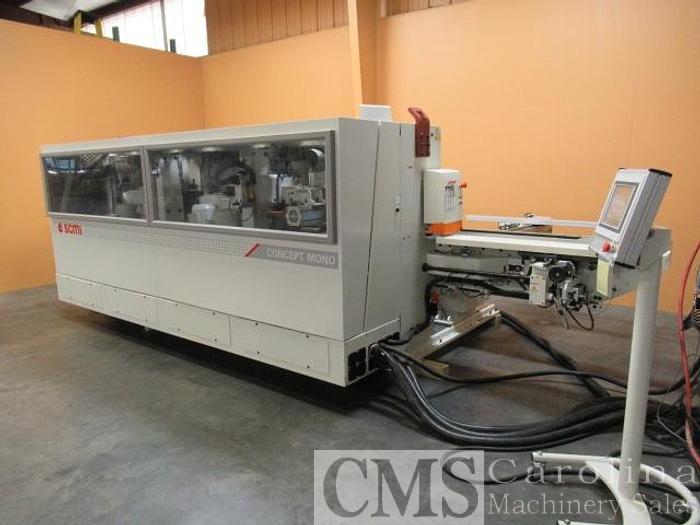

2008 SCMI Concept NT-M Single End Tenoner

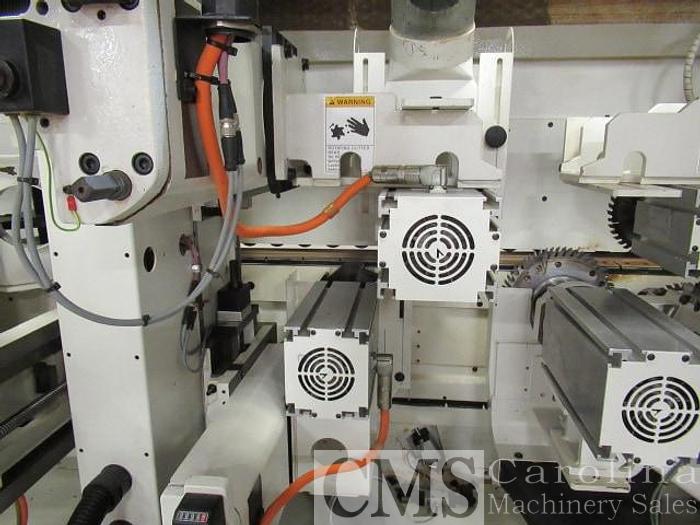

Top And Bottom Scoring: 4hp

Trim/Hog: 10hp

Top And Bottom Tenons: 10hp

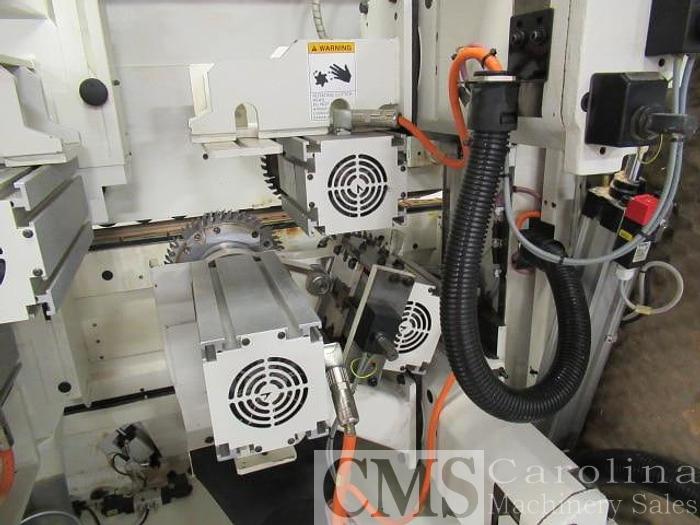

Coping Unit With 40 Mm Spindle (6-3/4″ Under Nut): 8.5hp

Coping Unit With 40 Mm Spindle (6-3/4″ Under Nut): 8.5hp

Sand/Cope Unit With 40 Mm Spindle (6-3/4″ Under Nut): 8.5hp

Sand/Cope Unit With 40 Mm Spindle (6-3/4″ Under Nut): 8.5hp

Variable Speed Feed (16 To 96 Fpm): 6hp

Max Working Width: 800 Mm

Min Working Width: 170 Mm

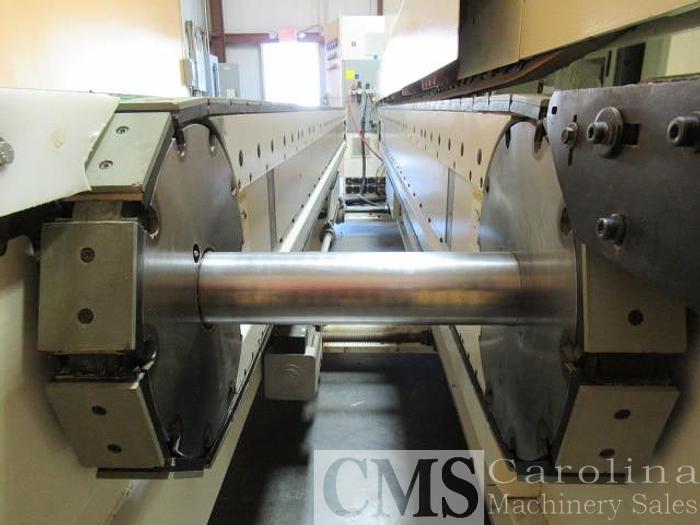

Min Working Width With One Chain: 55 Mm

Max Working Height: 100 Mm

Equipped With:

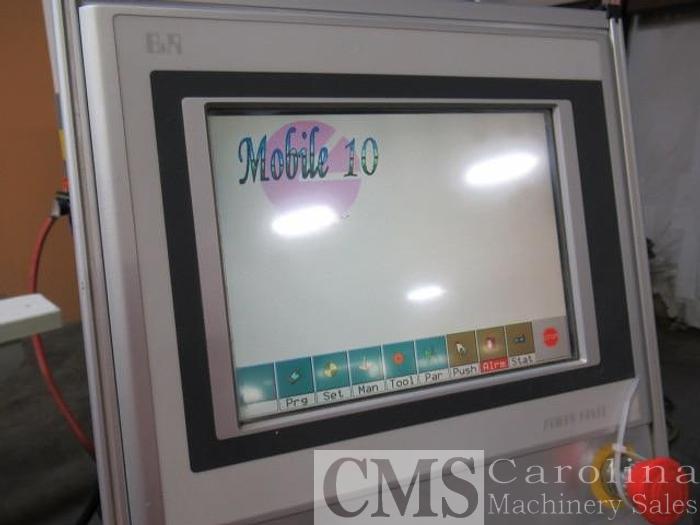

“Mobile 10” Touchscreen Screen, Utilizes Encoders For Reference On Where To Position All Units In The X And Y Axis

Manual Digital Counters For Tilting

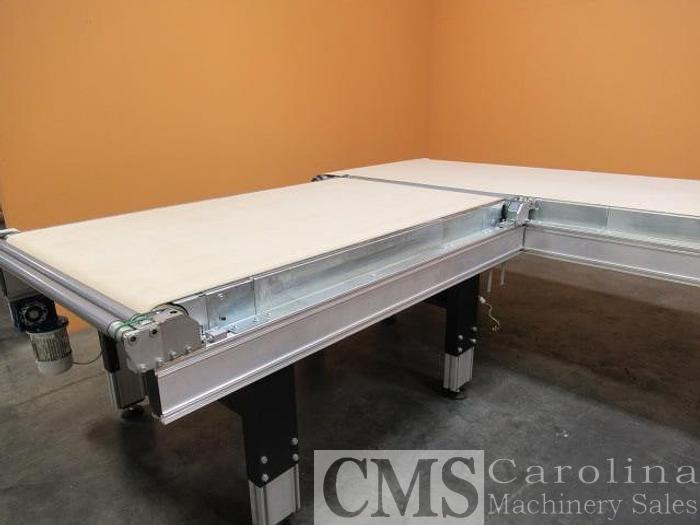

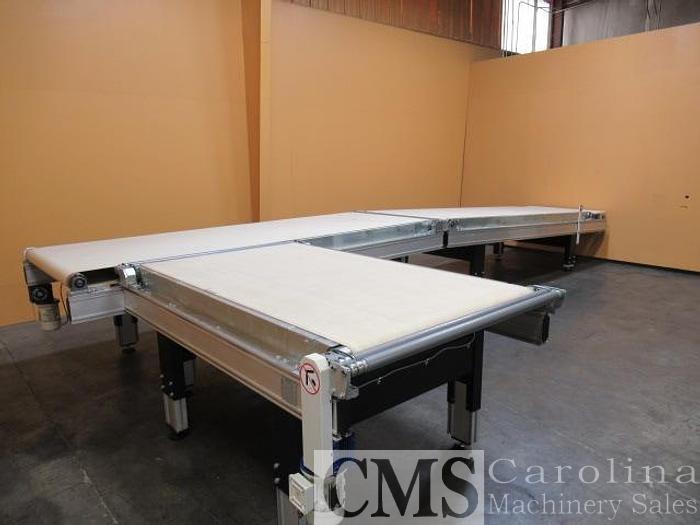

Mahros Return Conveyor
