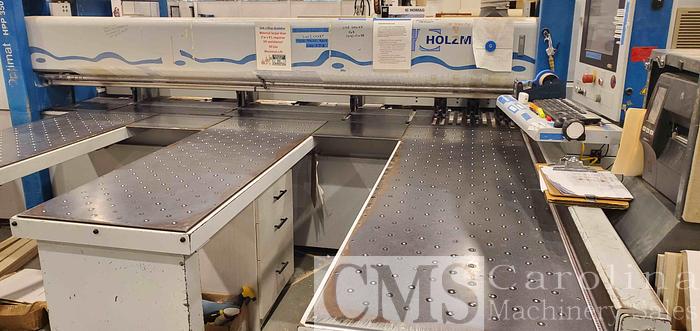

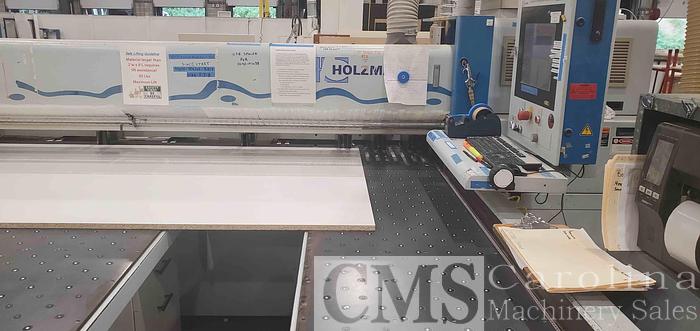

2004 Holzma HPP 350 Panel Saw

Location

Central

Sold

Specifications

ManufacturerHolzma
ModelHPP 350 Panel Saw
Year2004
Serial Number0-240-15-2909
Stock Number010568

Description

HOLZMA HPP 380 31/31 FRONT LOAD AUTOMATIC PANEL SAW

Specifications:

122" (3,100 mm) Rip cutting capacity & pull back

3.74" (95 mm) saw blade projection

18 HP (13.5 kW) Main saw motor and 3 HP (2.2 kW) scoring motor; scoring saw adjustment via "CADMATIC 4.0" control.

Saw Carriage:Variable saw carriage travel speed from 16 - 426 FPM (5 - 130 MPM), constant return of 426 FPM (130 MPM).

Pusher Fence:Electronically controlled overhead program fence, equipped with (6) clamps that open up to 100 mm (3.9").Rack & pinion driven on both sides, forward speed of 262 FPM (80 MPM), return speed of 262 FPM (80 MPM).

Operator & Machine Control:

HOLZMA Power Control with "CADMATIC 4.0" + "Windows XP" operating system; virtually unlimited cutting dimensions memory.TFT 17" Flat Screen monitor, REAL-TIME moving graphics; panel grooving & numeric display.Industrial keyboard, 1.44MB Floppy & DVD R/W drives, capable of online operation via RS 232 or USB port for possible link to an office PC.

Complete with:Automatic "CENTRIC" side aligner with front & rear forks, holding ripped strips squarely against the right angle fence.

(1) Front air flotation table, 86" x 25" (2,160 mm x 650 mm)

(2) front air flotation tables, 67" x 25" (1.700 mm x 650 mm)

Rear support rails with non-marking roller modules.
