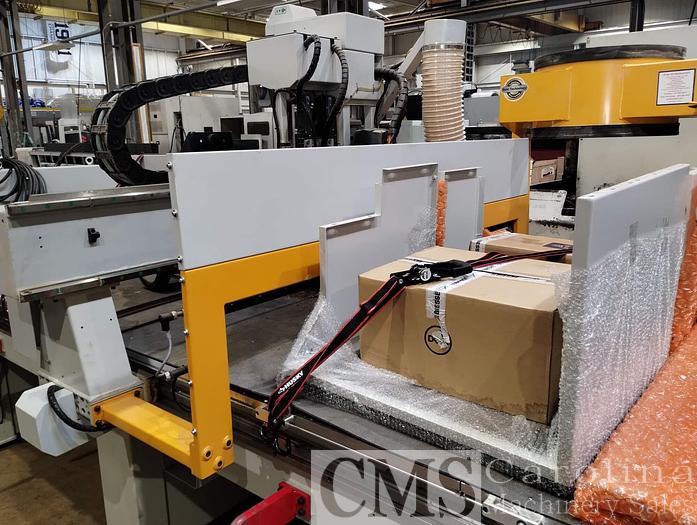

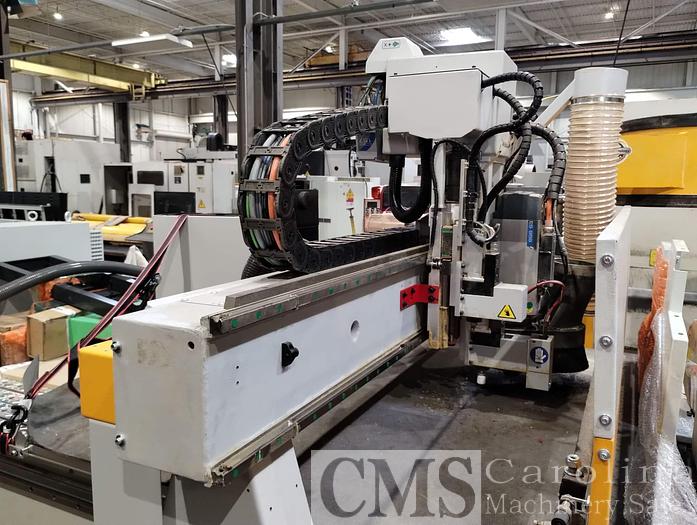

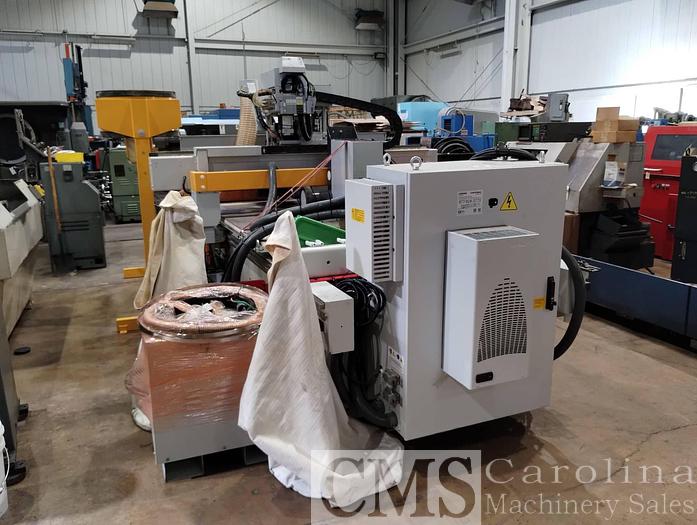

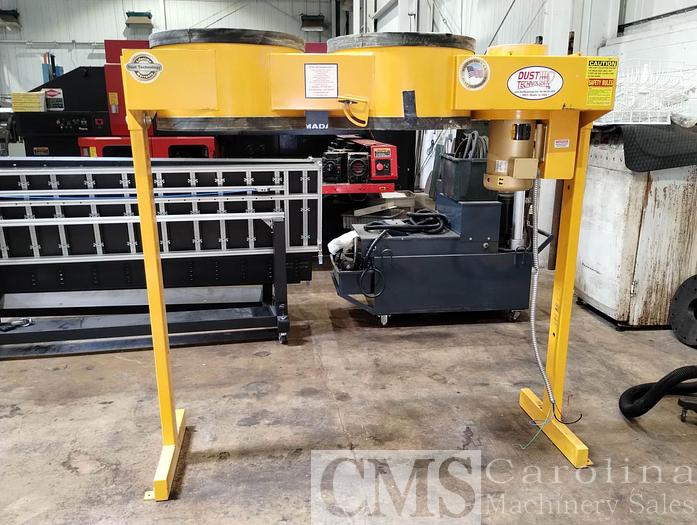

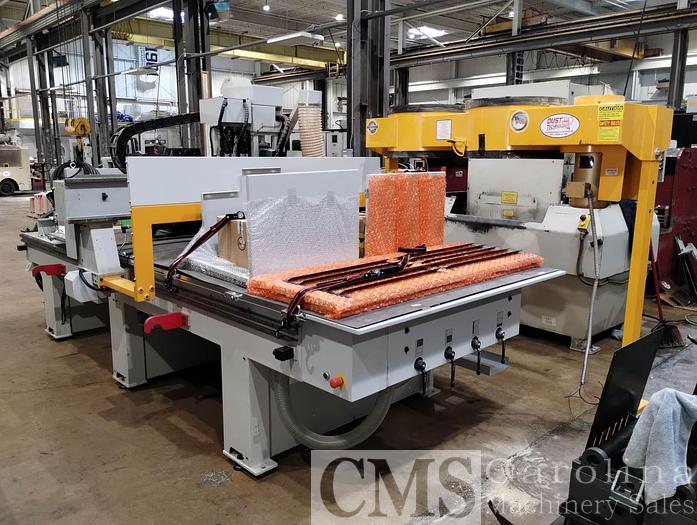

2021 Biesse Rover J 1530

Table Size: 5’x10′

Working Fields: X – 121, Y – 62, Z – 7.87

Cutting Head – 6.7 HP Spindle

175 CFM Vacuum Pump

Feed Rates

X Axis: 885″ IPM

Y Axis: 885″ IPM

Z Axis: 492.13″ IPM

12HP Electrospindle with ISO 30 Adaptor and Air Cooling

Spindle Speeds: 1,000 – 24,000 RPM

Working Dimension – 216x172x87

Equipped With:

250 m3’h Rotary Vanes Vacuum Pump

Biesse BH660 Control System

Side Rack Tool Changer for ISO or HSK Tools

Automatic Lubrication System

Autotransformer for Voltages different From 380-400-415V

Blade Type – Oscillating Knife

Cut Width-Maximum: 62 ”

Cutter Type – Router

Display Panel & Controls – Barcode Reader,

Handheld remote, PC Based Numerical Control with Stand

Specs from OEM Available
