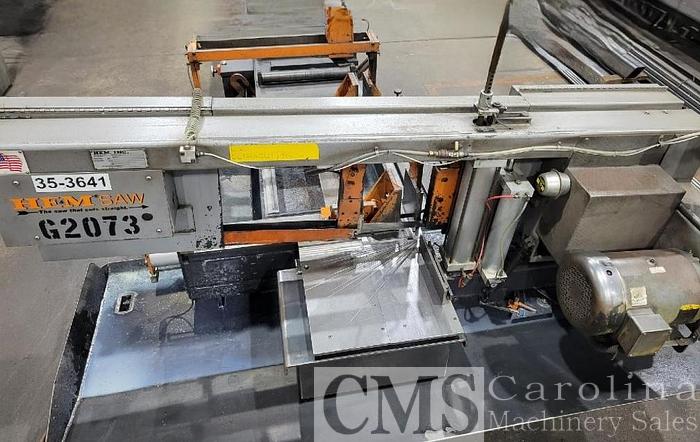

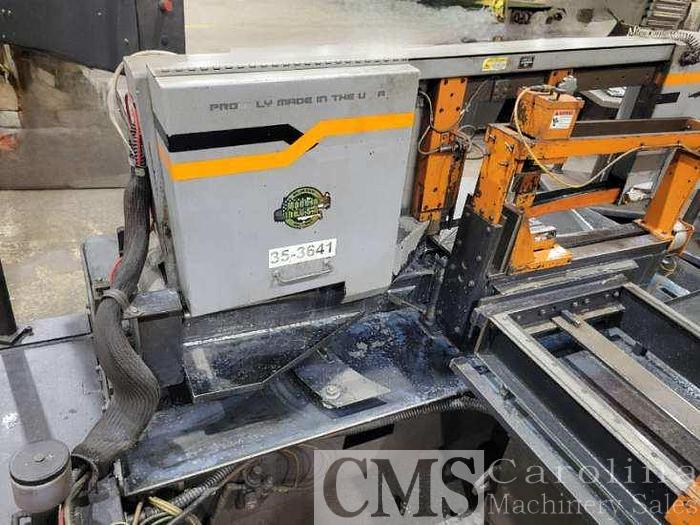

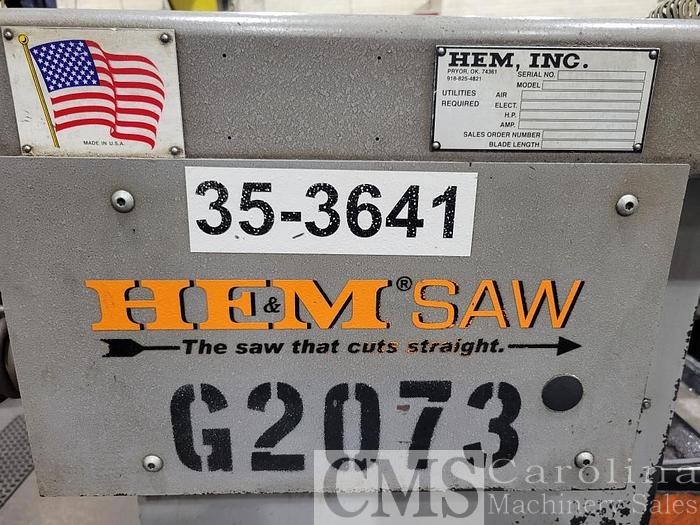

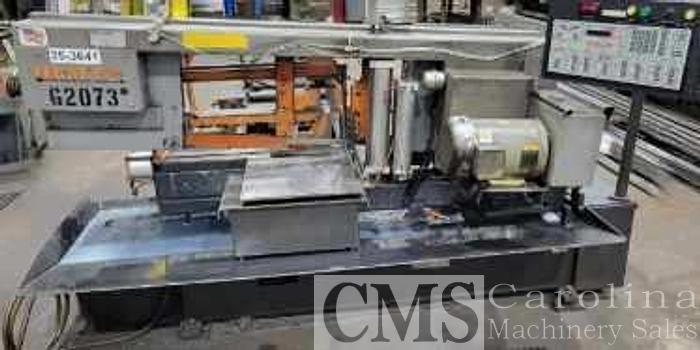

Hem Saw Cyclone AC Metal Cutting Horizontal Bandsaw

Manufacturer Specs:

Hem saw: Pivot Style, Miter Arm, Horizontal Band Saw

Model: Cyclone A-C

Saw Type: Horizontal Pivot Miter Band Saw

Motor: 7.5 HP

Capacity: 22" W x 16" H @ 90°

15" W x 16" H @ 45°

Blade: 1-1/4" x 16'0" x .042"

Operation: Automatic

Bar-Feed: 0-24" Stroke Air (Multiple Index)

Standard Features

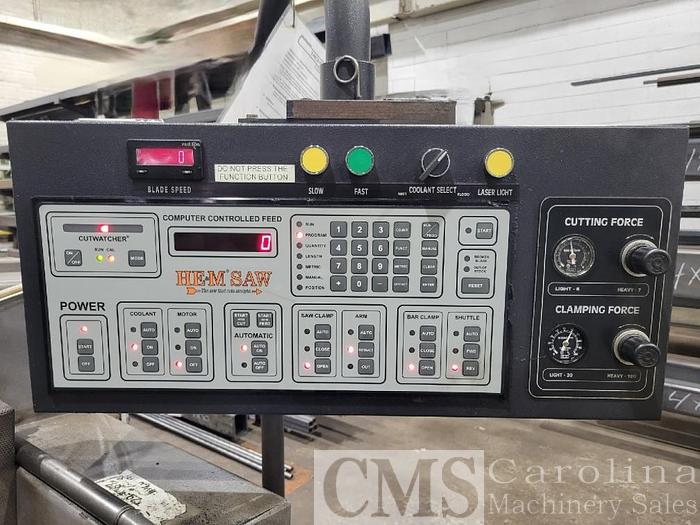

Easy View Control Console – All Function

Variable Frequency Controller

Computer Controlled Feed system (CCF)

20" Discharge Support

Adjustable Main & Feed Vise

Two Hold Down Fixtures for Vises

Manual Guide Arm Adjustment

Cut Watcher System

Adjustable Blade Speed w/ LED Readout

Carbide Blade Guides

Manual Blade Tension

Adjustable Feed Rate & Cutting Force

Built-In Coolant System w/ Wash-Down Hose

Mechanical Digital Readout & Alignment Bar on Bar-Feed

Air Machine (85 PSI, 4-6 CFM Minimum Air Requirement)

220V/3PH or 440V/3PH Electrical Motor Requirement (This is Not a Dual Voltage Machine)

1800 rpm, ball bearing
