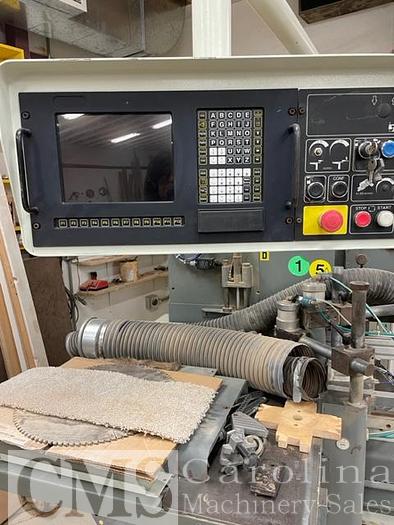

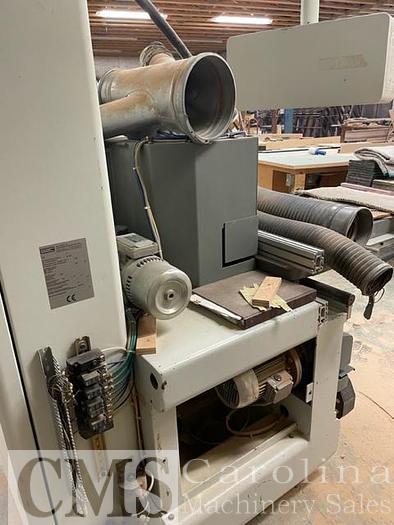

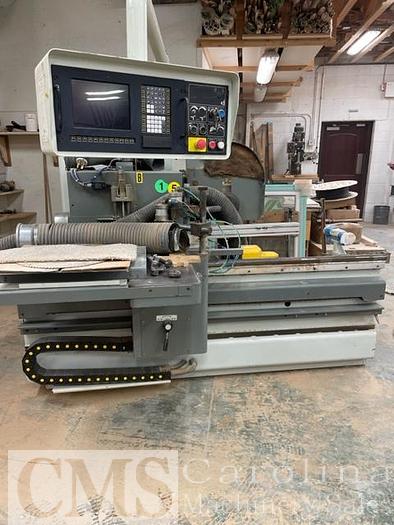

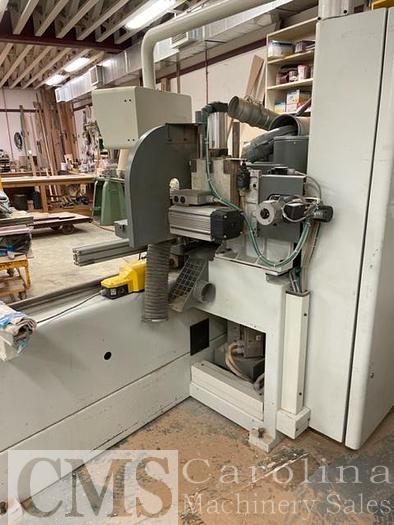

2002 SAC T4 NC Controlled Tenoner

Manufacturer’s Spec.

Single End Tennoner (NC Controlled) 230V/60Cy/ 3Ph *PLC Controlled with trim Station. *Stackable cope station and reciprocation tenon table. *Trim station: 4Hp, 3000RPM Motor, 30mm dia arbor, 3 1/2" max part thickness *15 3/4" mas blade dia. *5 1/8" horizontal blade, 4 1/2" dia dust outlet with full blade guard *Cope head:7.5Hp, 3500RPM Motor, 12 1/2" stackable spindle length x 50mm *Programmable spindle height adjustment with (250) height settings. *10 13/16" spindle travel, 13 3/4" max tooling dia, 6 1/4" dia dust outlet with hood. *Reciprocation Tenon Table: Automatic advance & return cycle, 10-33FPM var    1.5Hp motor, 12" x 35" table. *2- adjustable pneumatic overhead material holddowns, anti-splinter block to prevent    tear out, fence line with multiple flip stops and +-/-60deg miter adj. *PLC Controller with (100) programs to program specific working cycles for auto-     matic change of tool position and controls all machine functions for automatic     sequencing or specified lot sizes , LCD monitor with keypad entry provides     simultaneous display of work program, part description & tooling position,      controls on swivel pendent. *Emergency stop, magnetic starters with overload protection.

220 volt 3 phase
