USNR M6 Millexpert Optimizing Edger Controls

This system was removed last year. Controls include:

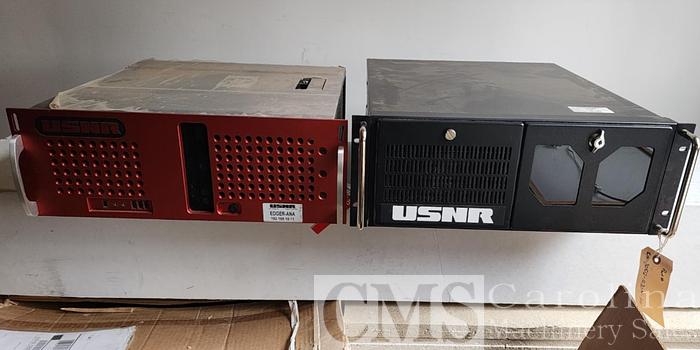

• USNR M6 millexpert computer system for edger.
• Installed 2010 and took out December 2022.
• (1) Windows 7 analize computer and (1) data acquisition computer.

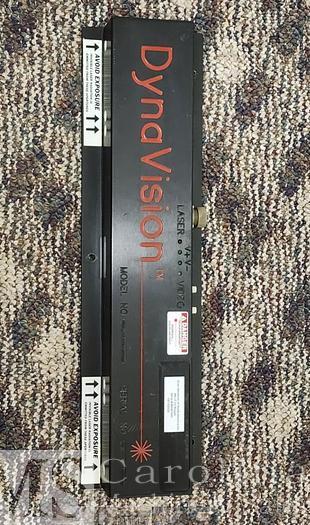

• (17) M6 Dynavision scanner heads

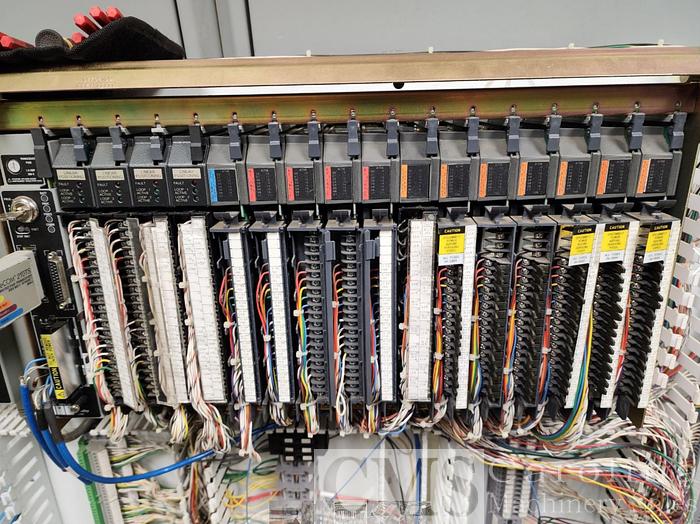

• Allen Bradley PLC-5/40E with (5) 1771 input cards and (7) output cards, (4) 1771 linear positioning cards.
• (3) TT5RBU0240 24” stroke temposonic wands
• (4) 60” stroke TTSRBU0600 wands
• (7) Moog model 641F229C valves

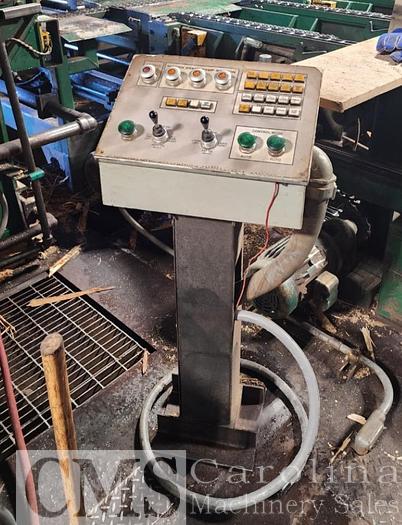

• (2) Operator panels
