2002 Komo VR 512



orCall 704-288-1904


ModelVR 512
Serial Number42059-09-01-02
Stock Number010262


Table Configuration:

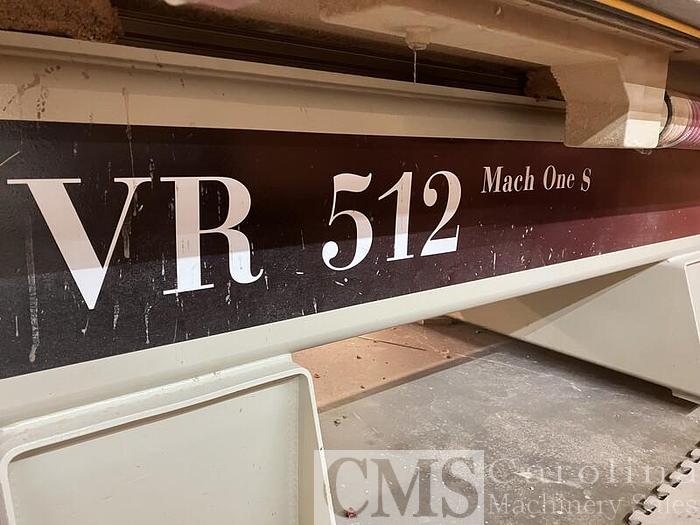

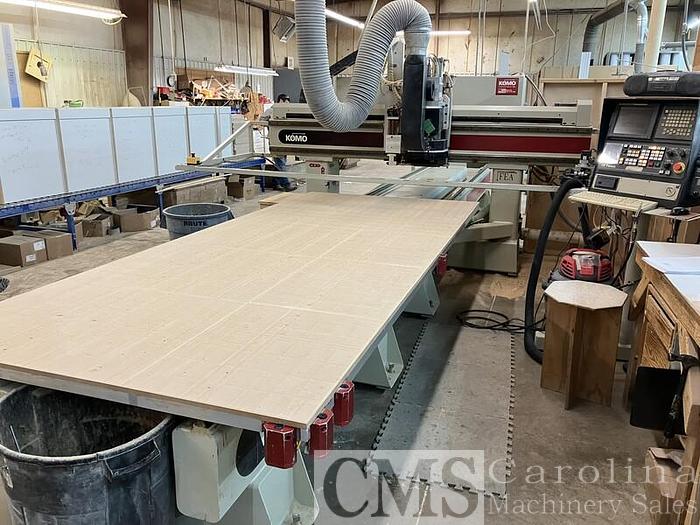

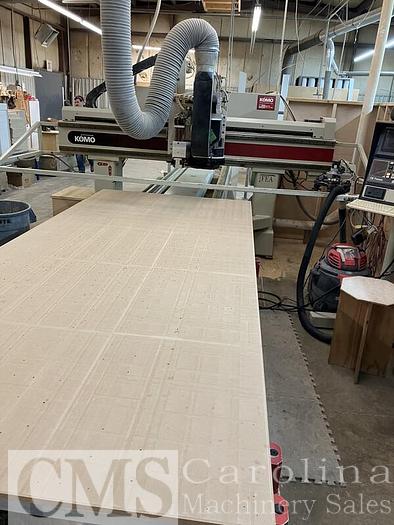

• KOMO VR 512 Mach I CNC Router

• 60 x 144" Cast aluminum machined vacuum table

• Table has been designed for High Flow vacuum pump

• Ideal for nested based manufacturing

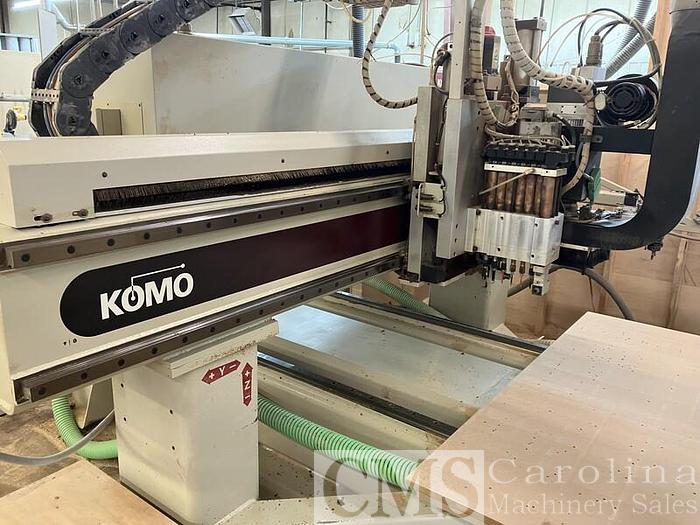

• Heavy Duty fixed Gantry Bridge

• A-Frame style Gantry Support legs

• Pop up part locating pins (set of three pins)

Head Configuration:

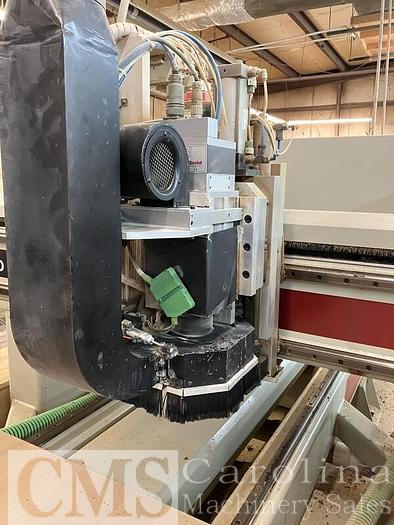

• 12 HP High Frequency 4-pole Router Spindle

• Programmable spindle speeds from 9,000 - 18,000 RPM

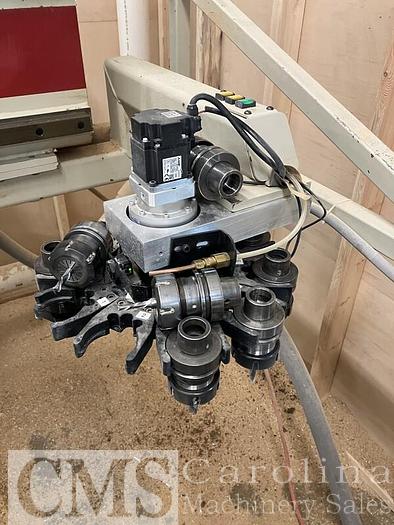

• 8-Position Dynamic tool changer with BT-30 tool holders

• (6) Vertical drill spindles on 32 mm centers

• (4) Horizontal boring spindles with 1 + 1opposing in the X-axis and 1 + 1opposing in the Y-axis


• All axes are positioned by AC Servo Drives

• Heavy Duty Profiled machine rails and bearing trucks

• Preloaded precision ball screws for positioning

• Automatic Lubrication system to all bearings

• Rapid travel speeds of 1,250 IPM on both the X and Y-axes

• Travel speeds of 600 IPM on the Z-axis

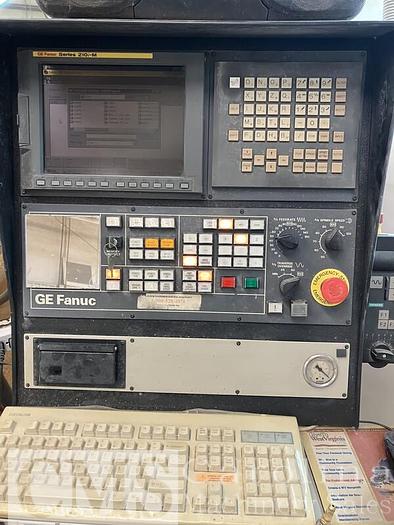

• FANUC 210i PC Front end Controller

• Windows Operating system

• RS-232 Serial interface

• 3-axis simultaneous control

• Feed rate override

• Spindle speed override

• Hand help pendant

• Remote operating pedestal with vacuum and cycle start buttons, pop up pins, as well as emergency stop.
