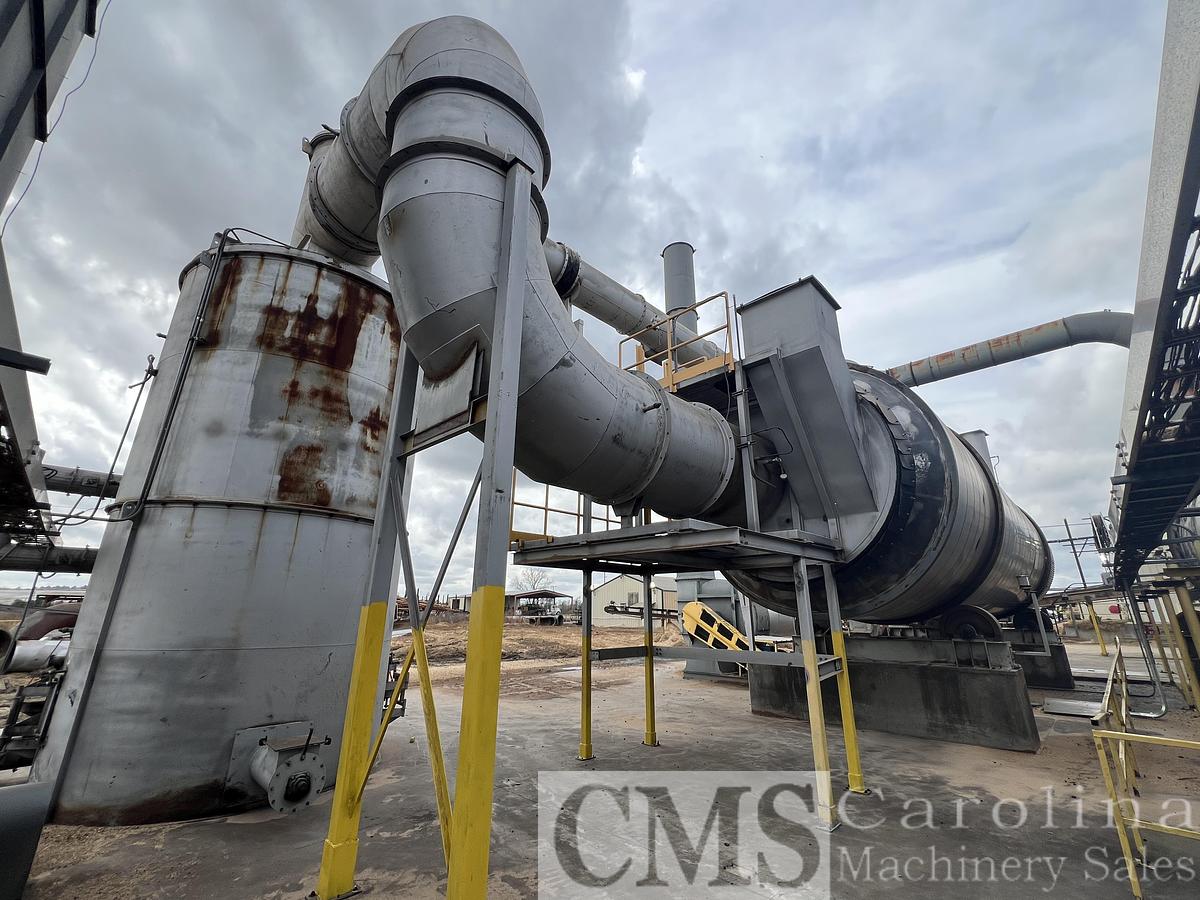

Player Design 12x50 Drum Dryer with Burner

Location

Southeast USA

orCall 704-288-1904

Specifications

ManufacturerPlayer Design
Model12x50 Drum Dryer with Burner
Stock Number009894

Description

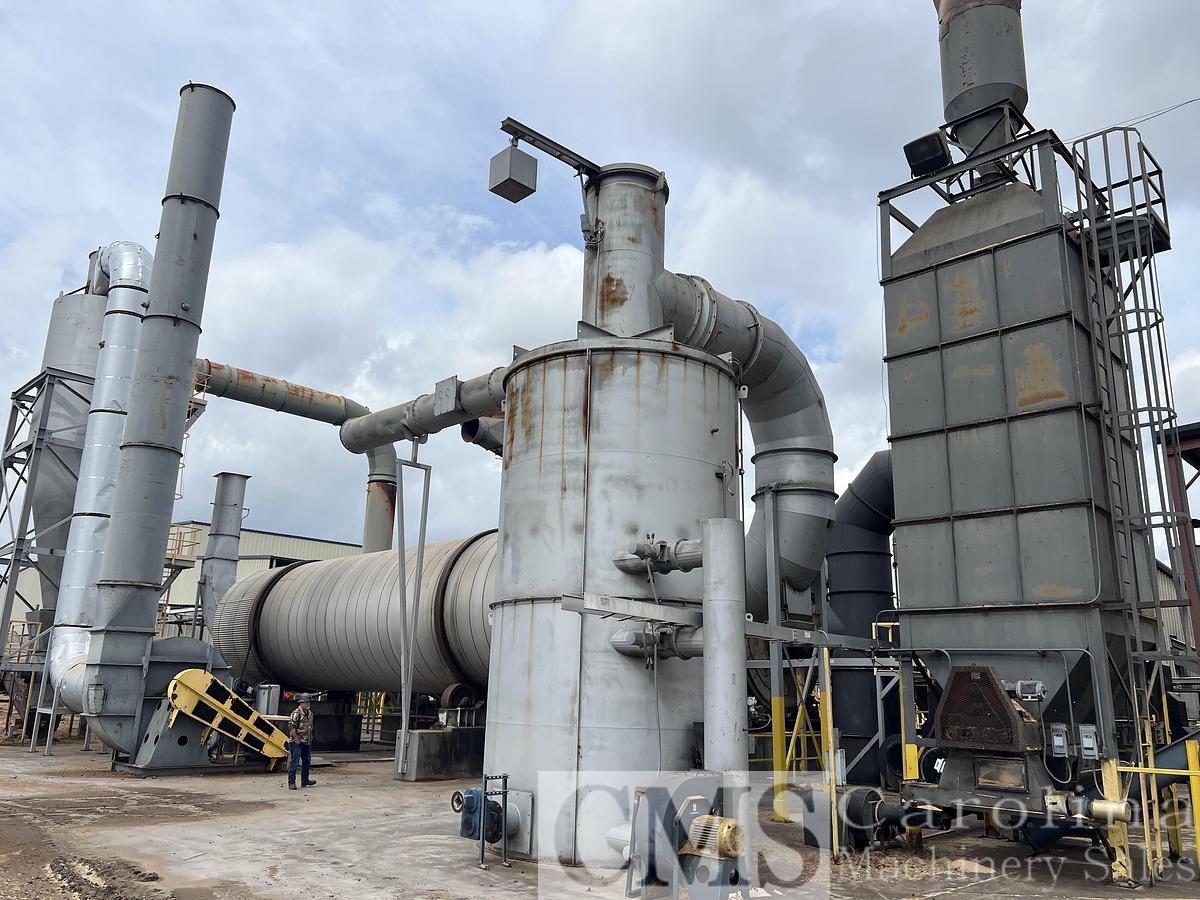

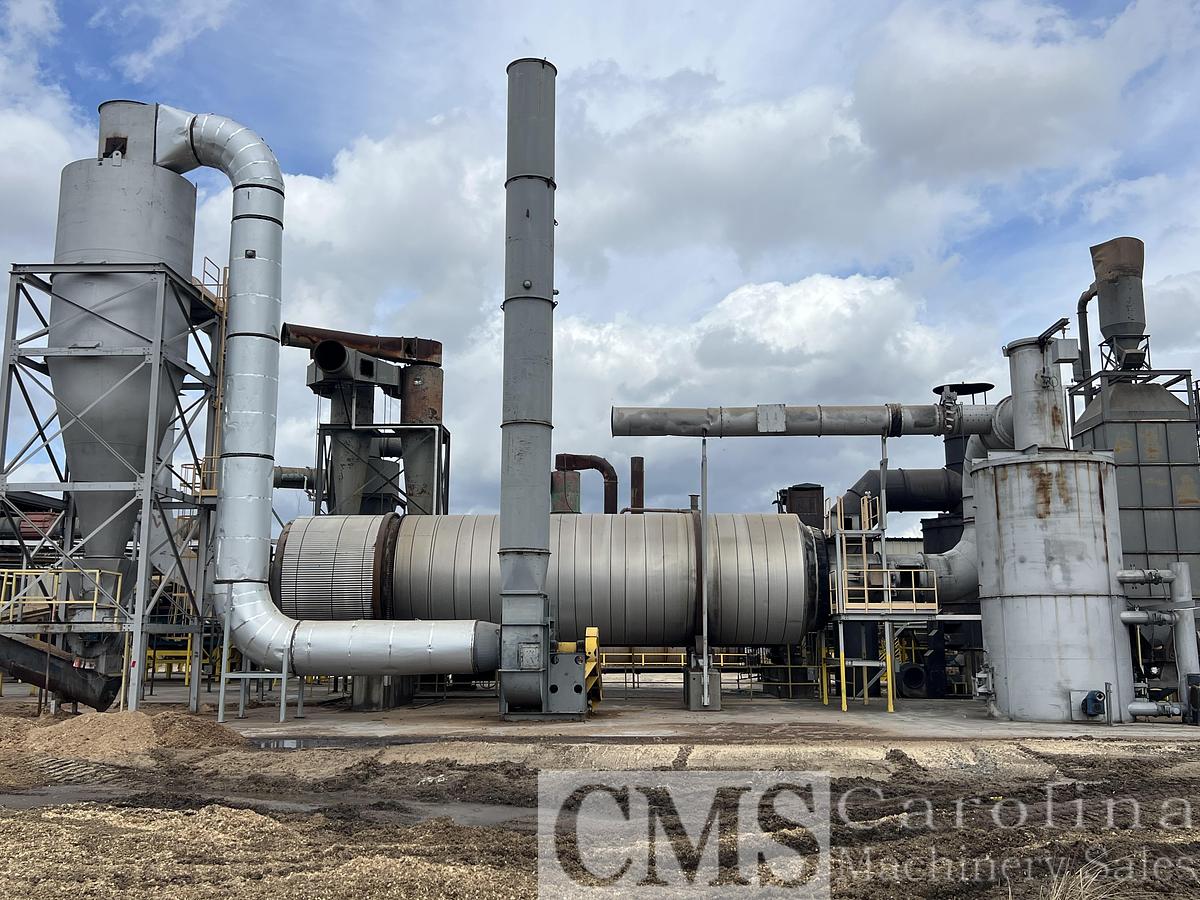

Complete Player Design Drying System

  • (2) Touch Screen Controllers
  • (1) PLC Control Box

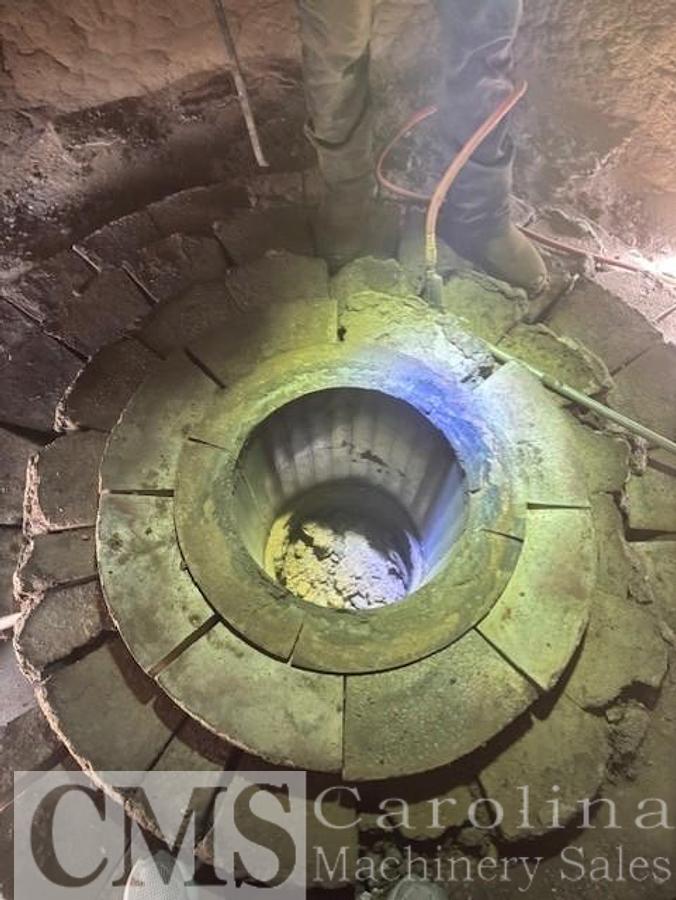

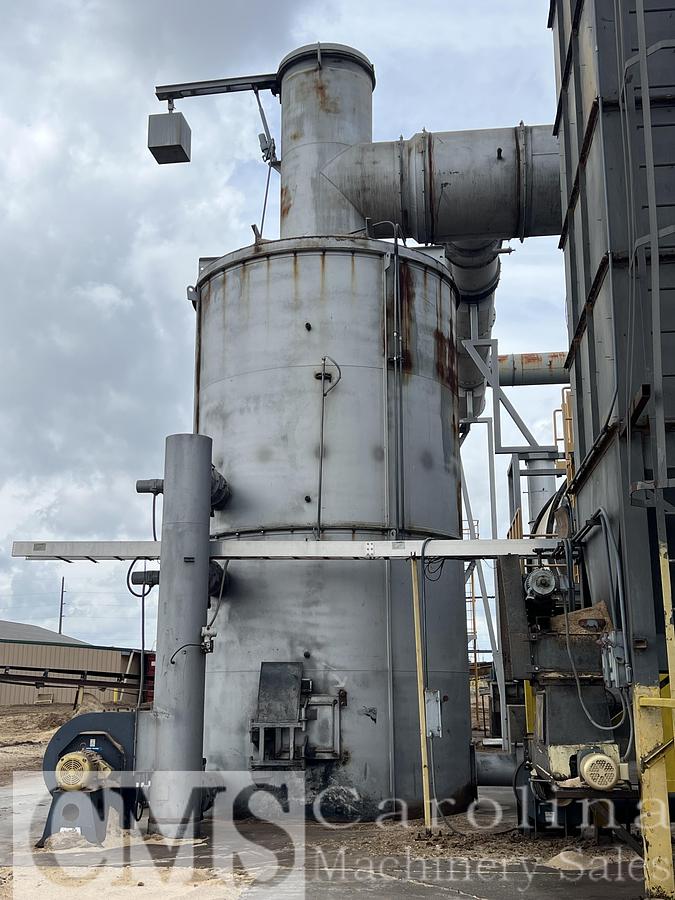

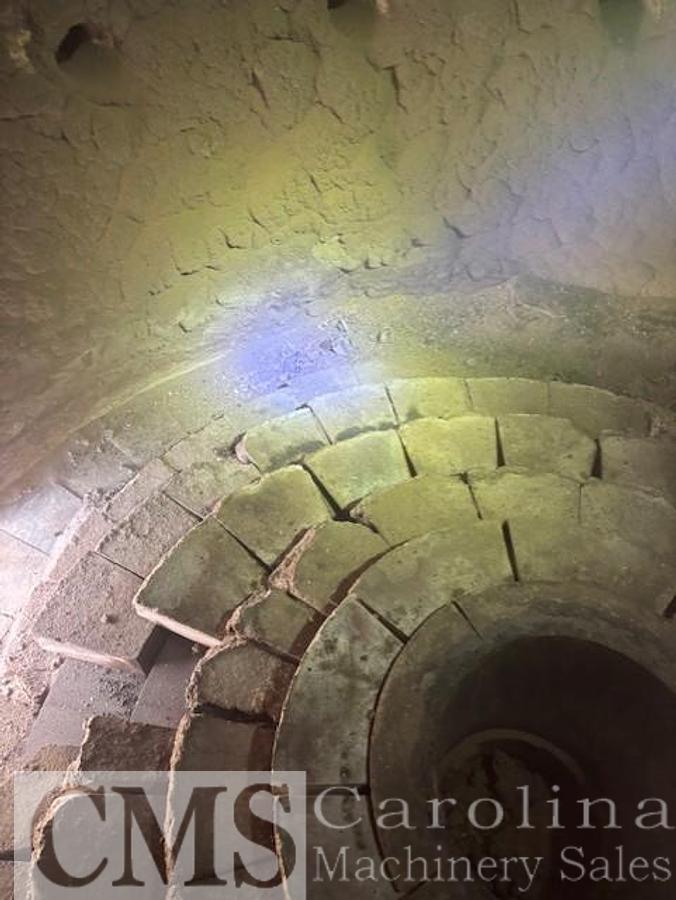

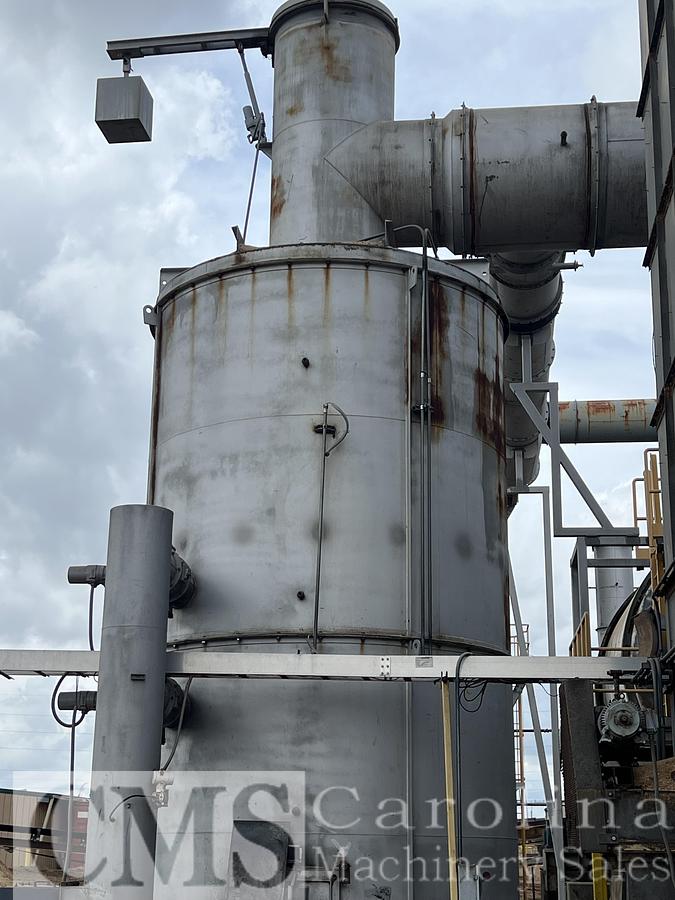

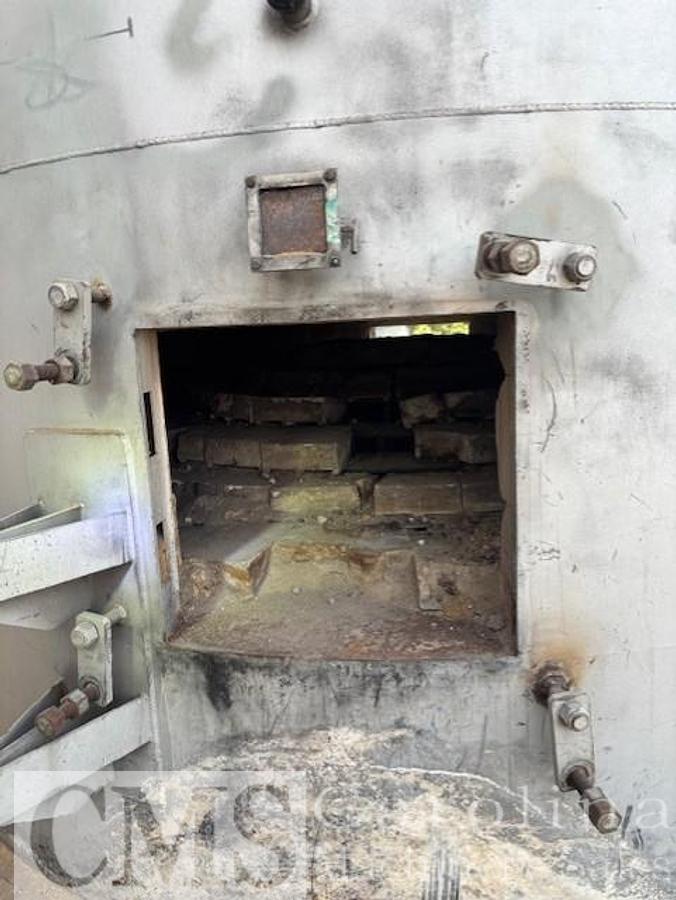

  • (1) 12’ X 20’ Burner – 25 million BTU capacity with tempered sight glass that can run green chips/dust
  • (1) Burner Auger , Gearbox, and Motor
  • (1) Burner Blower Fan Assembly and Motor

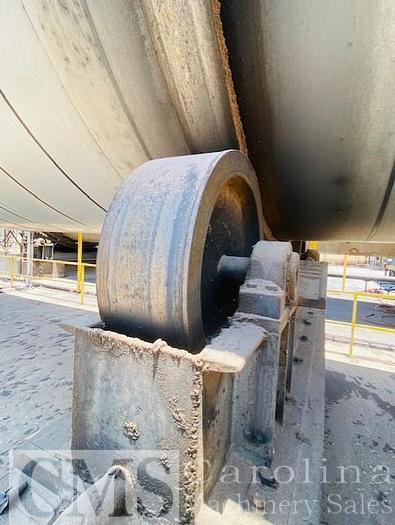

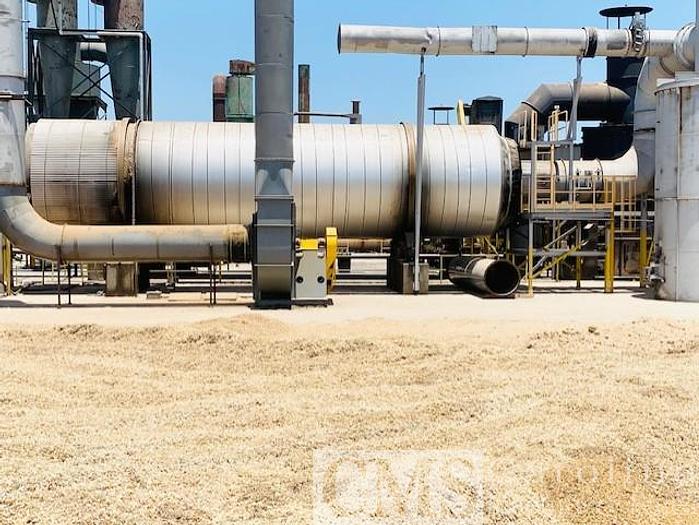

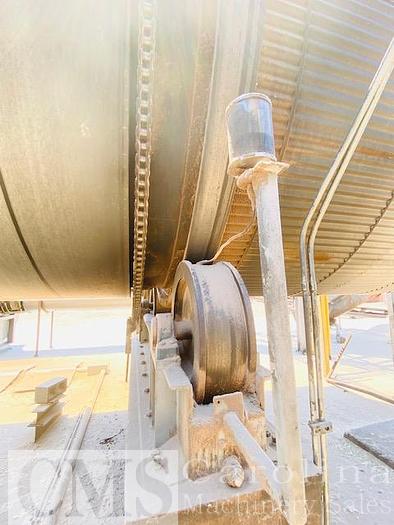

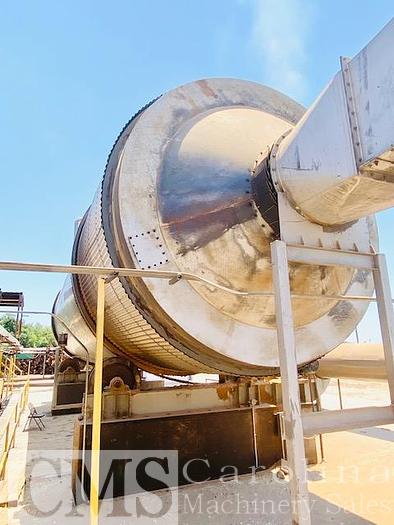

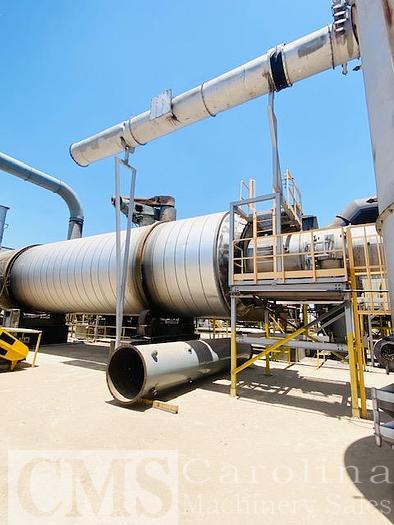

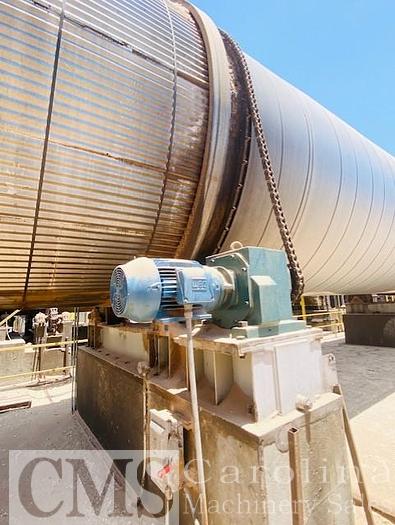

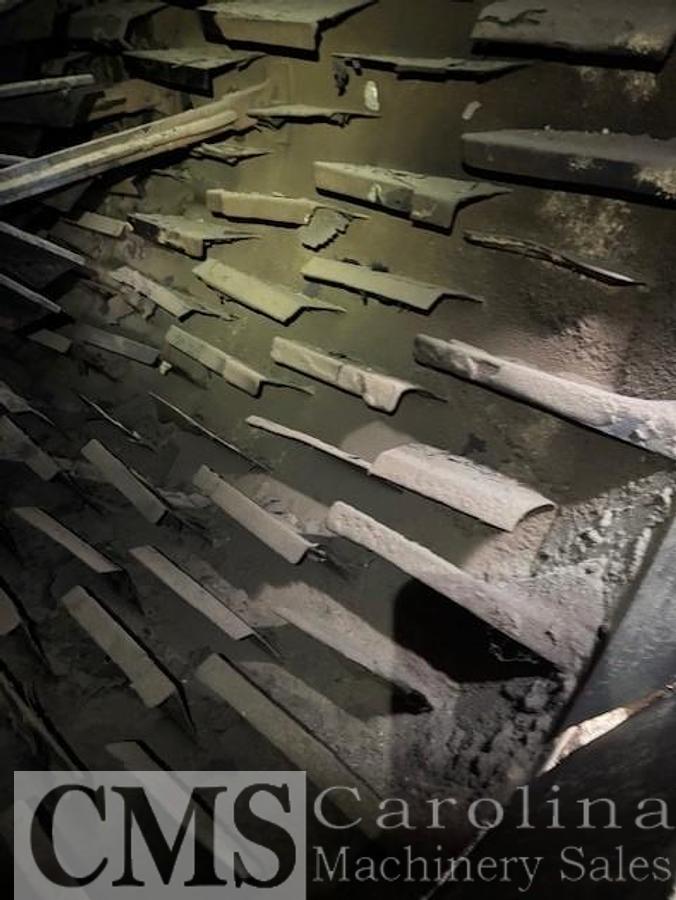

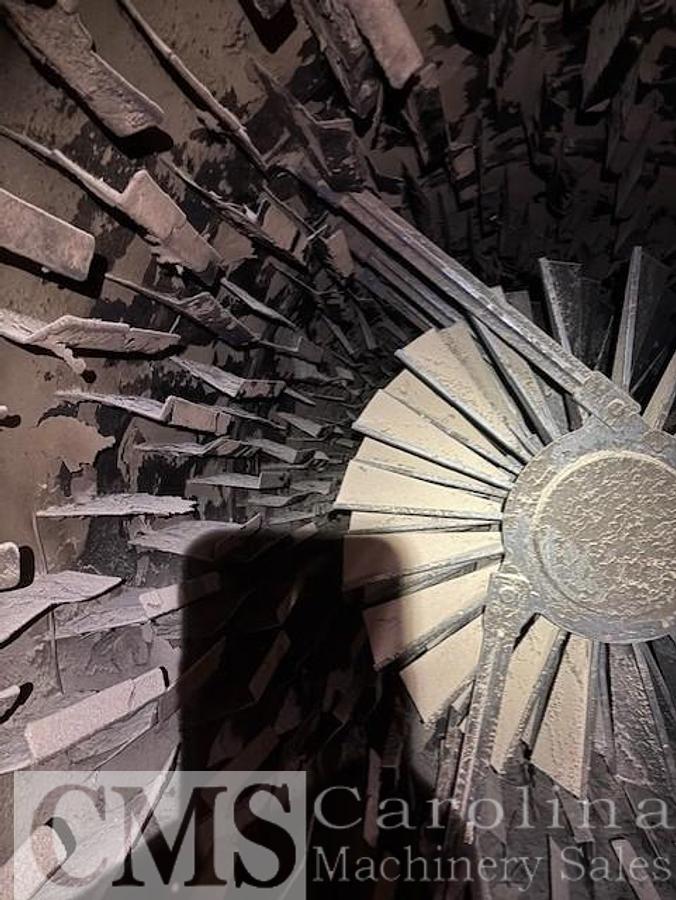

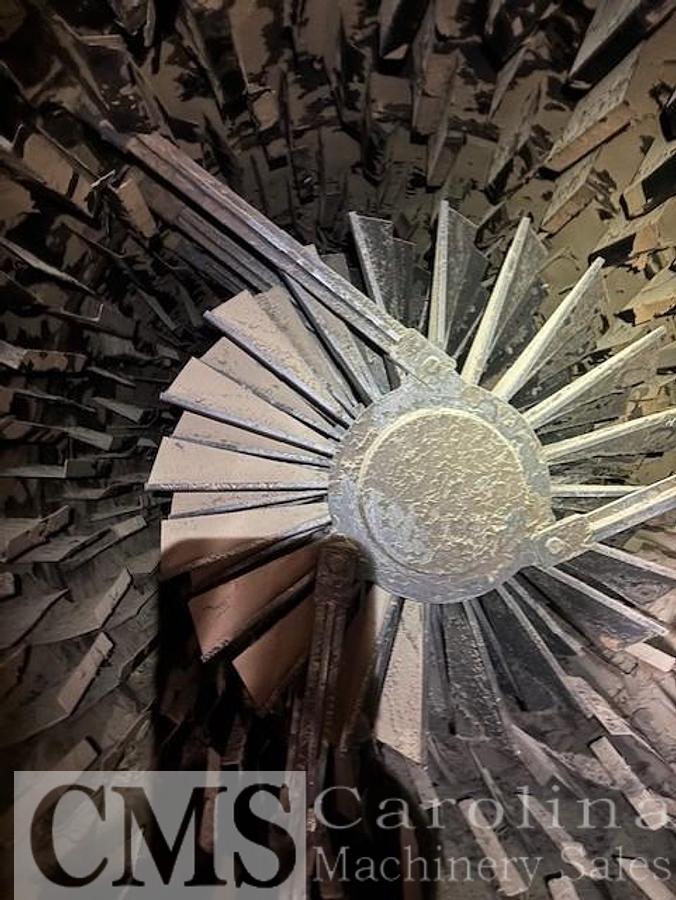

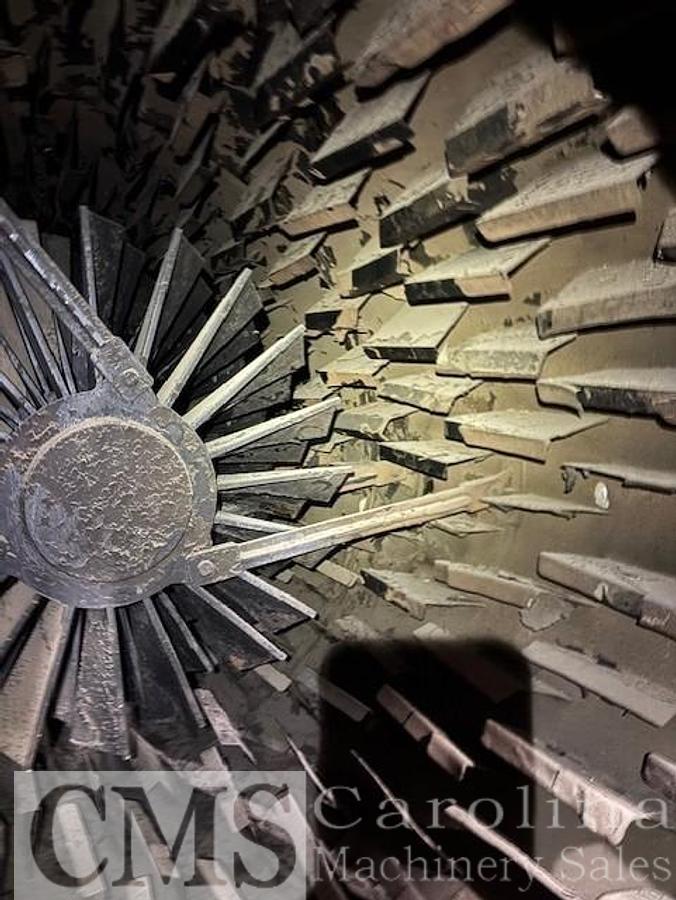

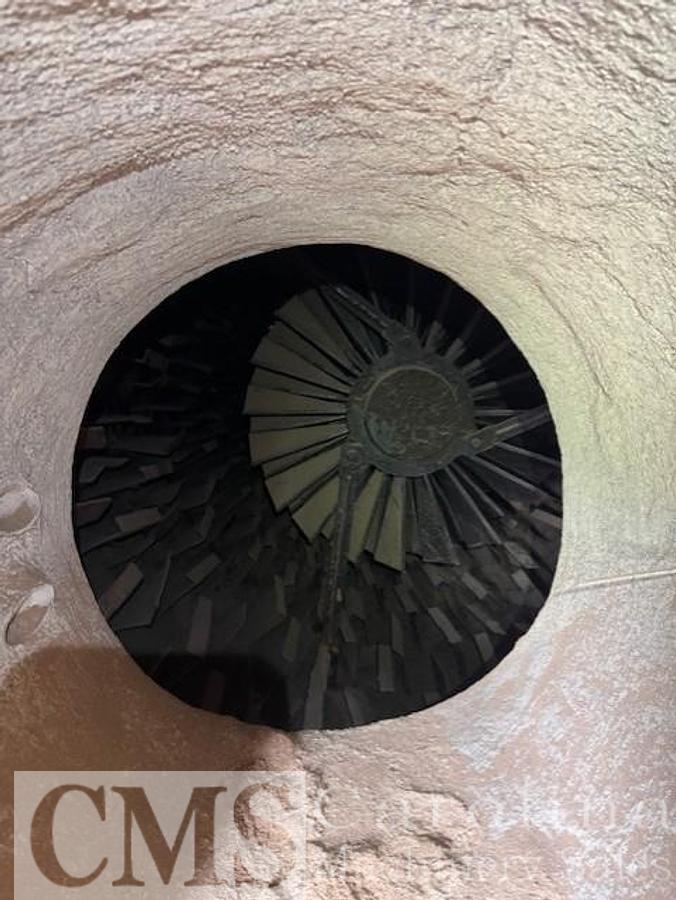

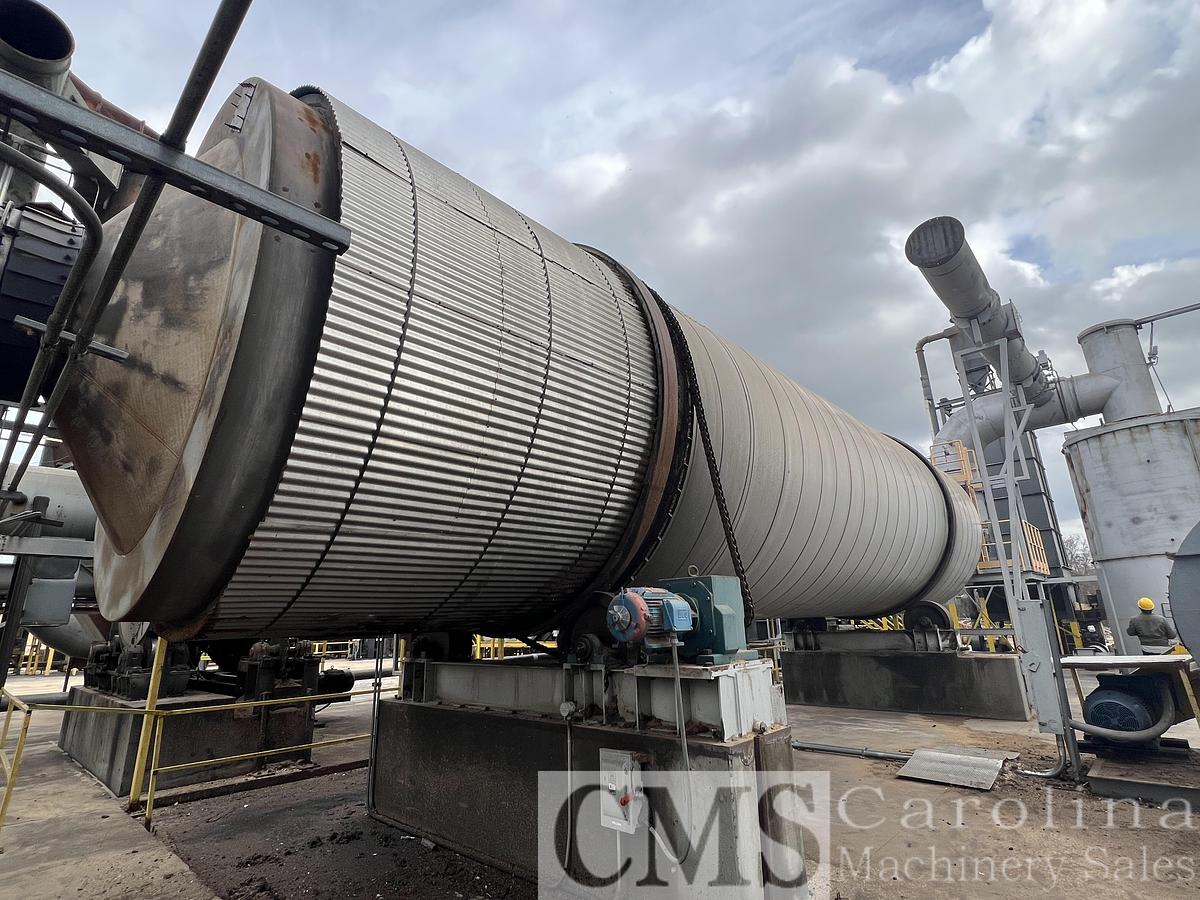

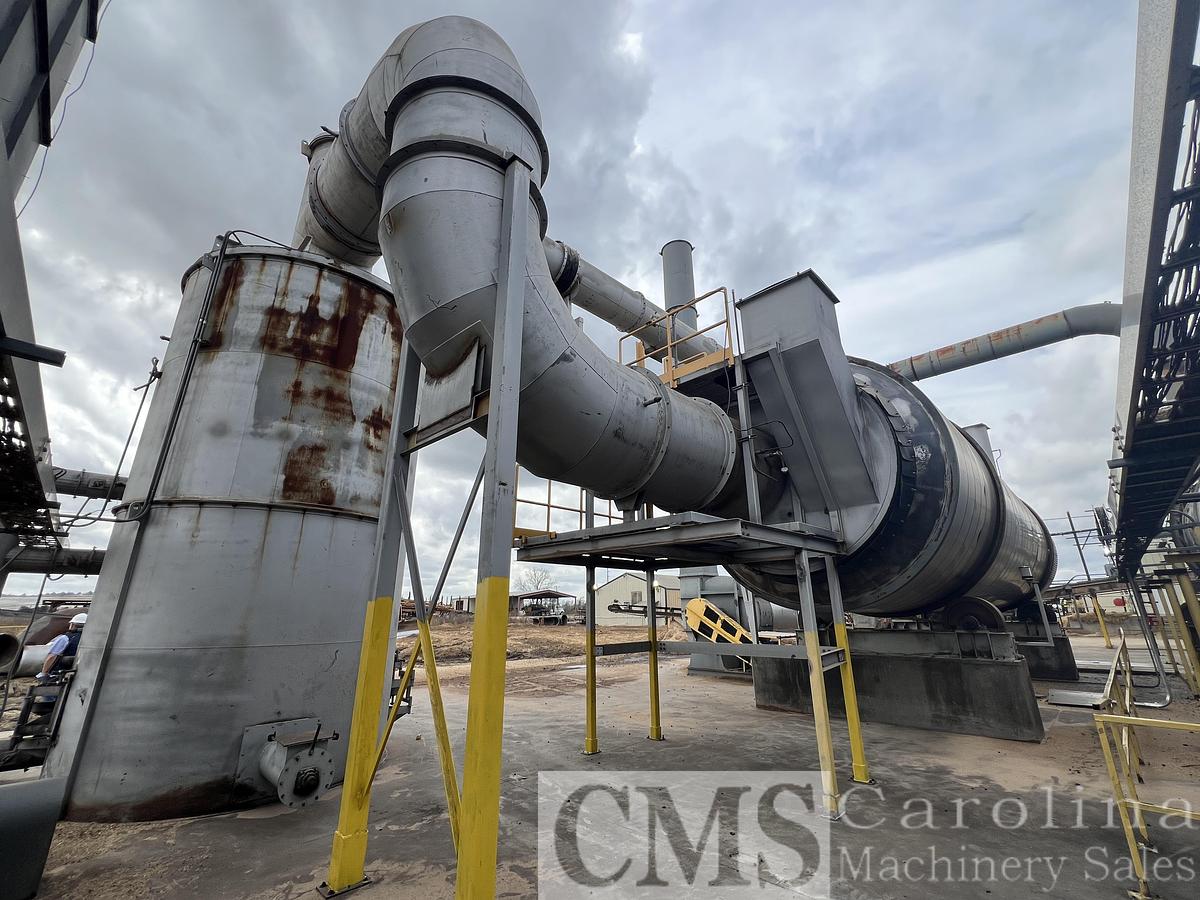

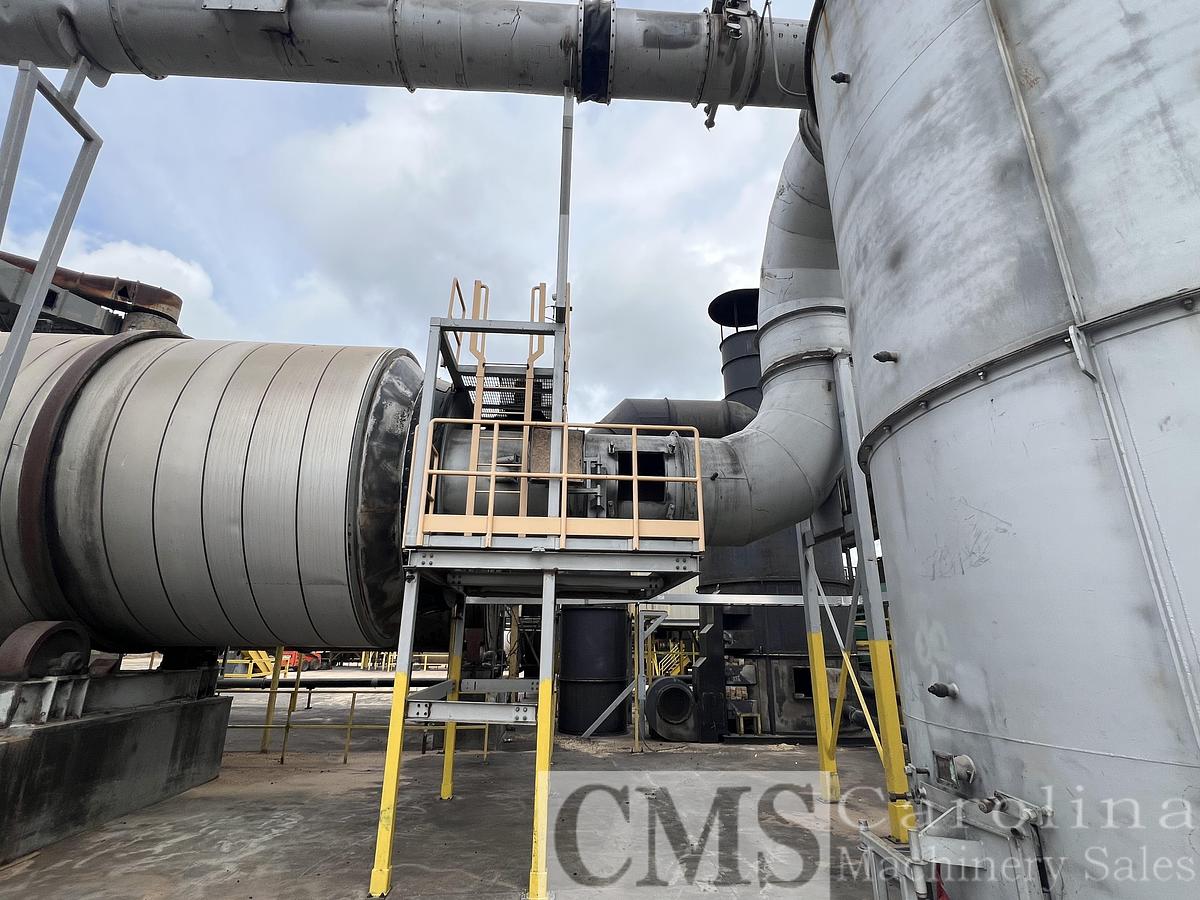

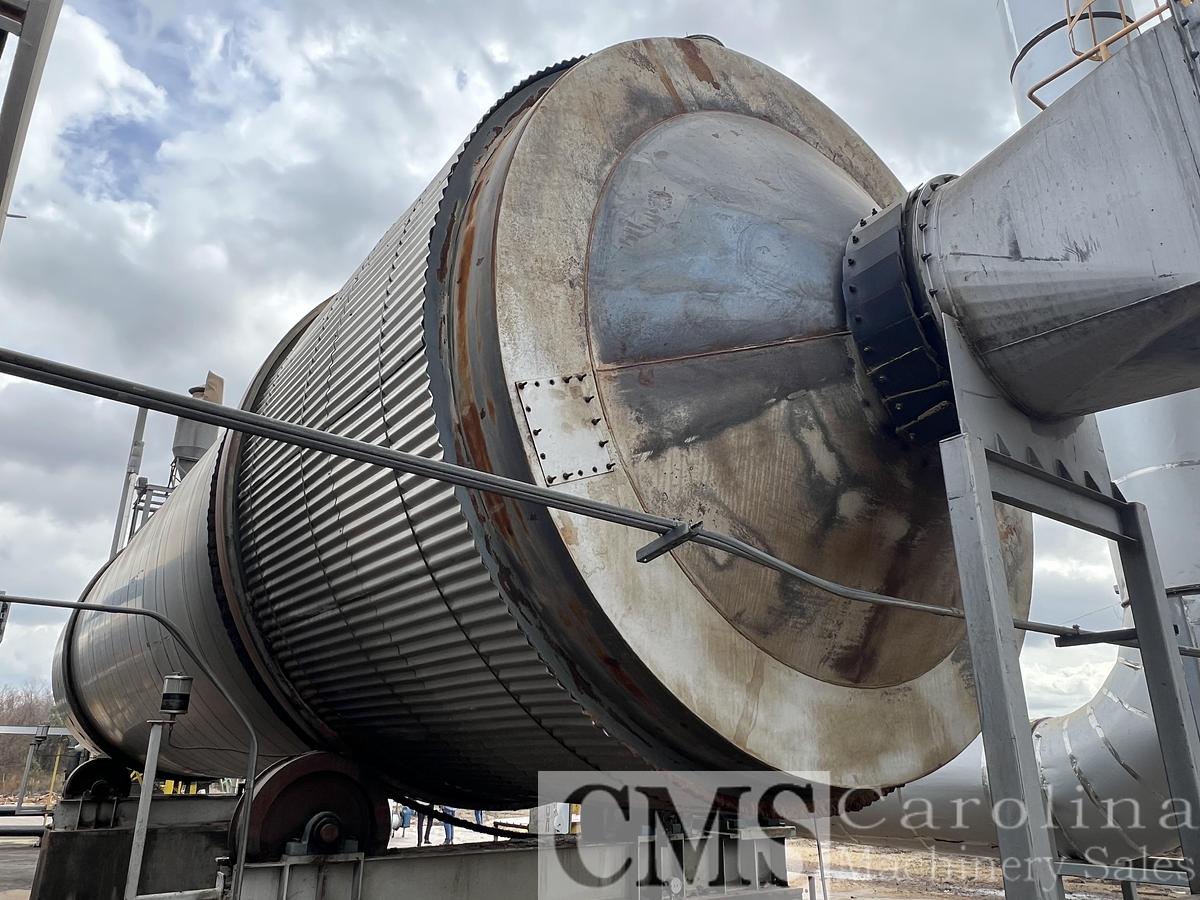

  • (1) Player Single Pass Insulated Dryer Drum (12x50), 8” T section track, 28” Trunnions, Drive lubrication system, Sprocket, Chain and Gearbox / Motor (Drum rated for output material volume of 16,000 lbs per hour)

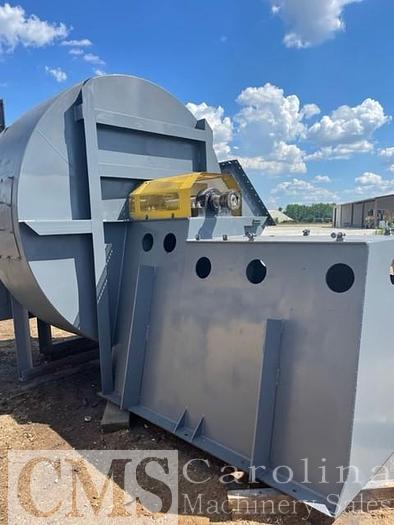

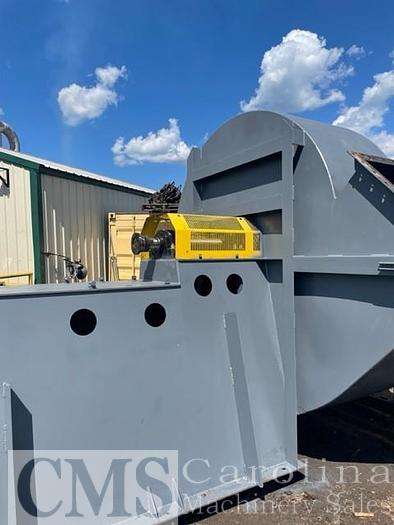

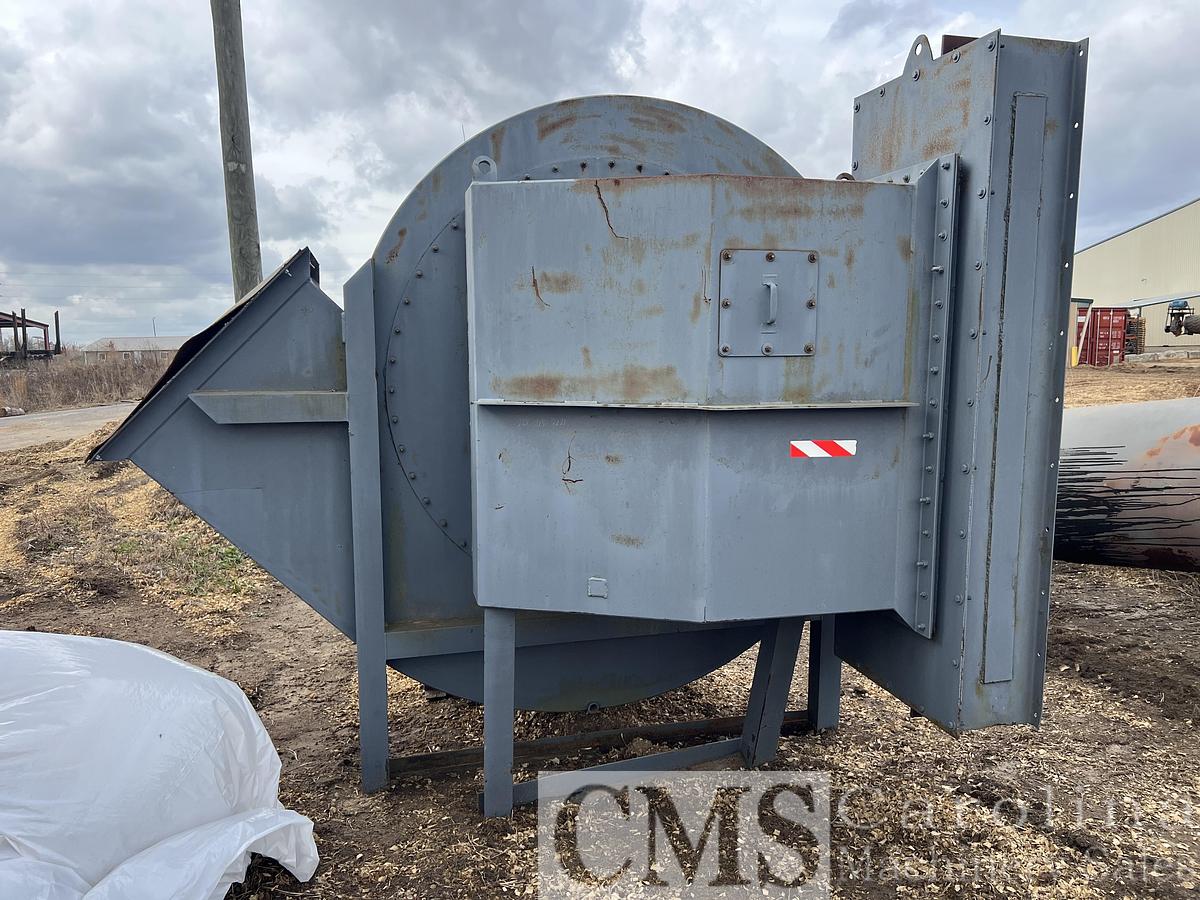

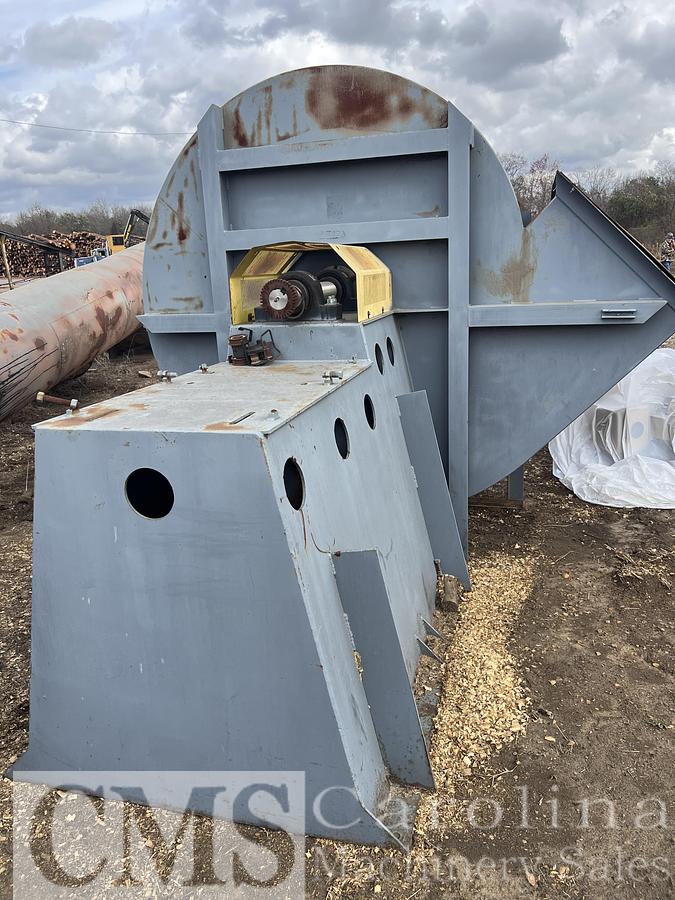

  • (1) Air Pro 48” Overhung Fan Assembly (ID Fan) (No Motor) ---- (Part# 12113601, Type-IERS615, Serial# 21136,)
  • (1) 200 HP motor for ID Fan
  • (1) Beck- Damper Adjustment Arm/Gearbox (ID fan comes with opposed blade inlet damper with a 300 ft-lb Beck actuator and armature) ---- (Model 11-209-155212-04-01---- 120V 1PH / 110VA )

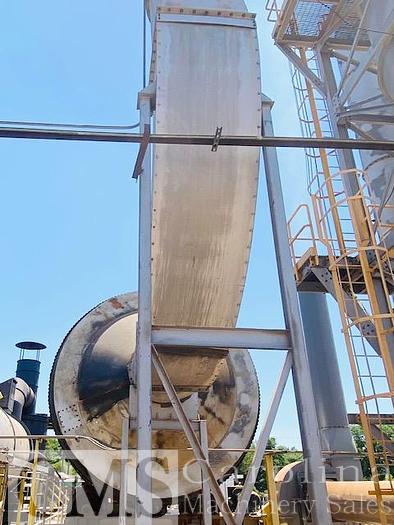

  • Piping and dampers for piping
  • Missing approximately 20’ of Dryer Drum Discharge piping
  • Missing approximately 20’ of Dryer Drum Recycle piping
  • System was rated at approx 9.25 Tons/hour
