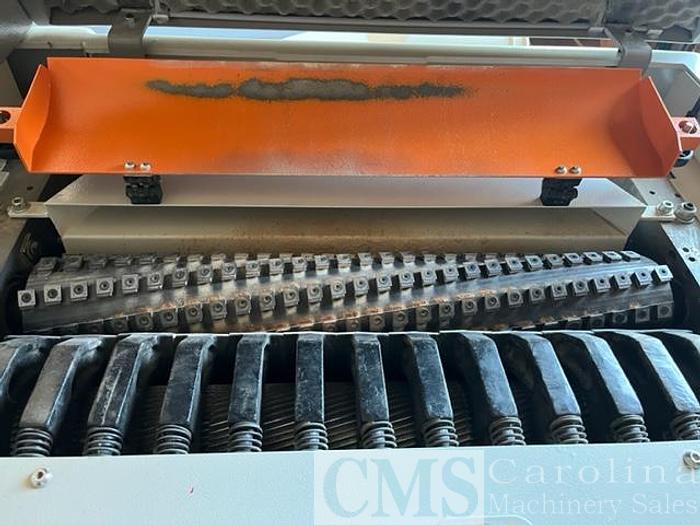

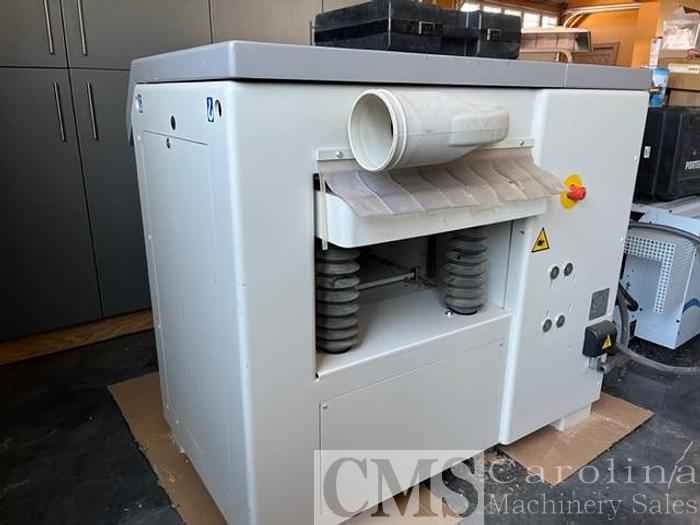

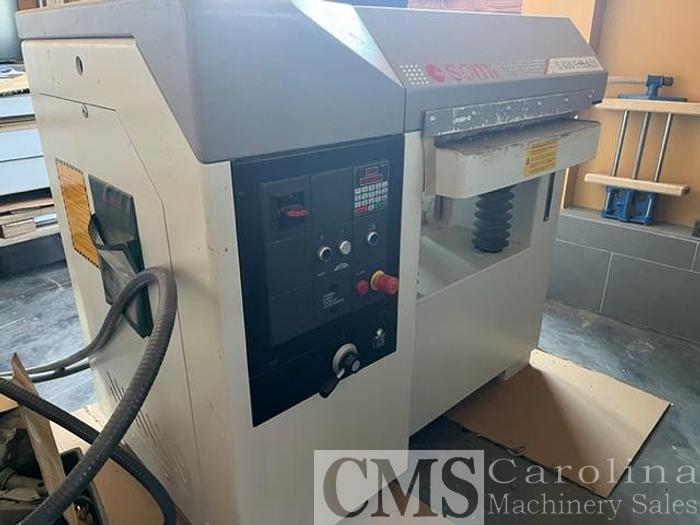

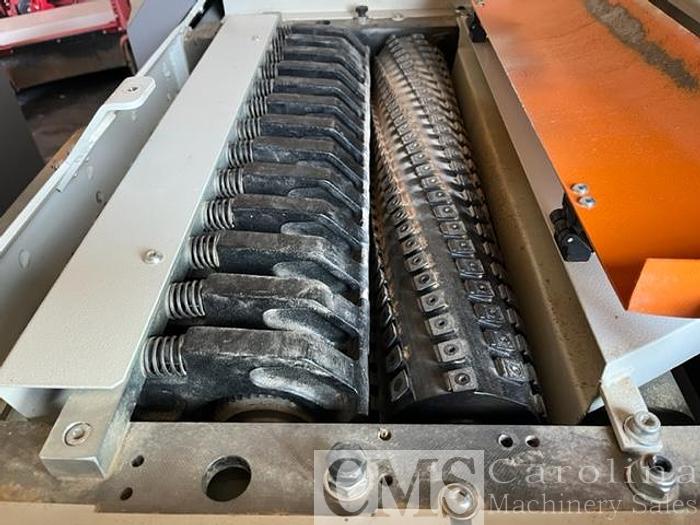

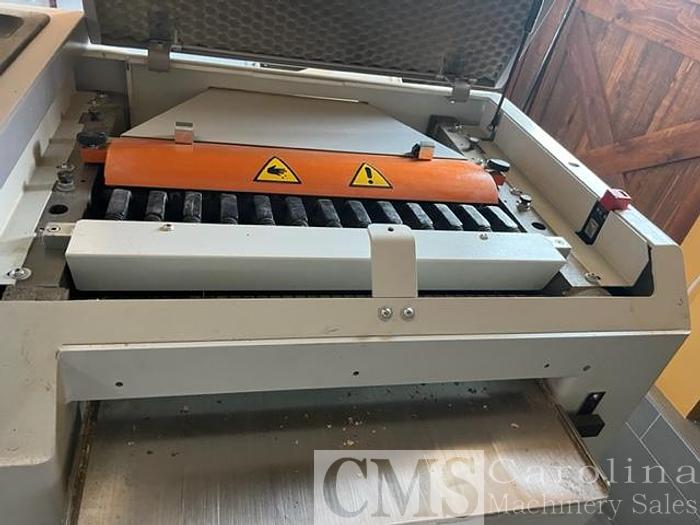

2006 SCMI S 630 Planer With Spiral Heads

Location

Midwest

orCall 704-288-1904

Specifications

ManufacturerSCMI
ModelS 630 Planer With Spiral Heads
Year2006
Stock Number009796

Description

  • Motor Horsepower: 12 HP
  • Working Width: 24 3/4” (630mm)
  • Working Height: 1/8” – 11 ¾” (3-300mm)
  • Max. Depth of Cut: 5/16” (8mm)
  • Minimum Length of Stock: 10 ¼” (260mm)
  • Cutter Head Diameter: 4 ¾” (120mm)
  • RPM: 4500 RPM
  • No. of knives: 105
  • Knife Dimensions: 15mm x 15mm x 2.5mm
  • Table Size: 24.75” x 39.4” (630mm x 1000mm)
  • Feed Speeds (Variable): 4 - 20 m/min (13 - 65 FPM)
  • Infeed Roller: Steel sectional, power driven
  • Outfeed Roller (x 2): Rubber, power driven
  • Dust Hood Diameter: 150mm
  • Noise Level (dB): 70
  • Overall Dimensions (L,W,H): 51" x 40" x 45”
  • Shipping Weight: 2,710 lbs
  • Net Weight: 2,550 lbs
  • Electrical Requirements: 230V
  • Dust Extraction: 980 CFM
