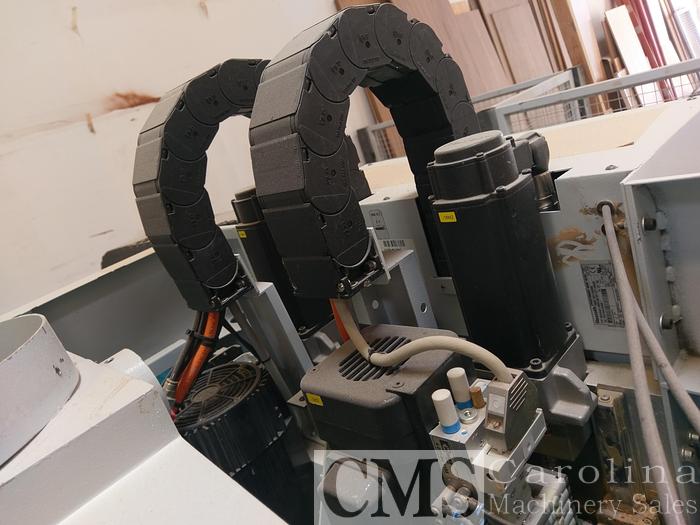

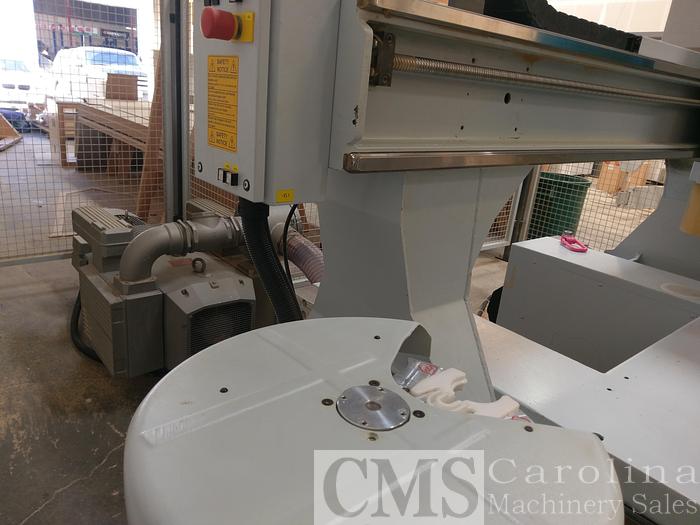

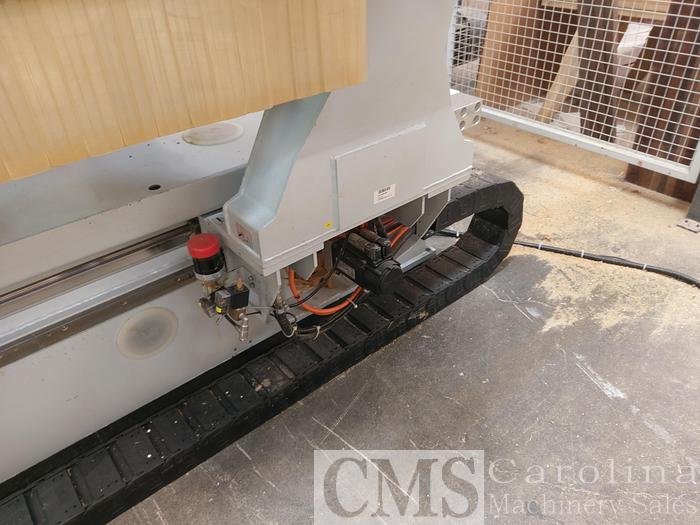

2006 Weeke BHP 200 Flat Table CNC Machine with ATC & Boring:

Location

West Coast, USA

orCall 704-288-1904

Specifications

ManufacturerWeeke
ModelBHP 200 Flat Table CNC Machine with ATC & Boring:
Year2006
Stock Number009691

Description

2006 WEEKE BHP 200 Flat Table CNC Machine with ATC & Boring:

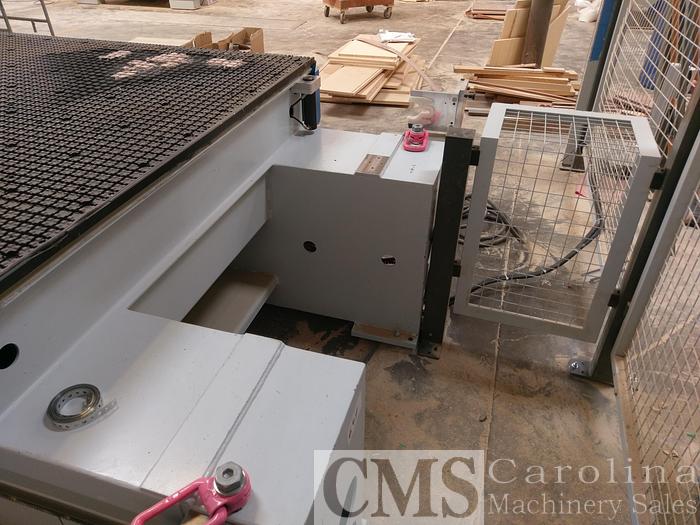

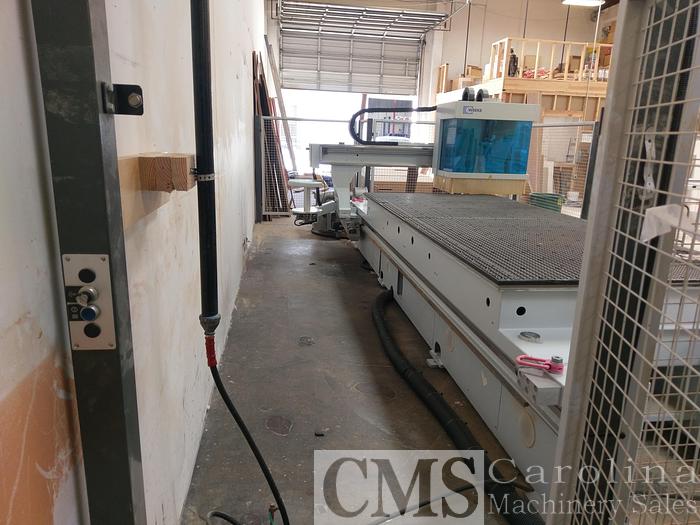

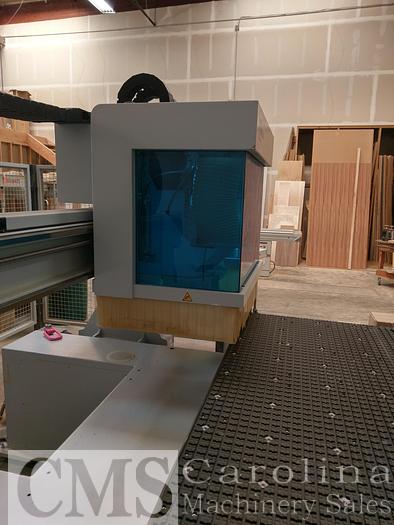

5′ x 12′ Bridge Gantry” machine; vacuum table for nested base processing

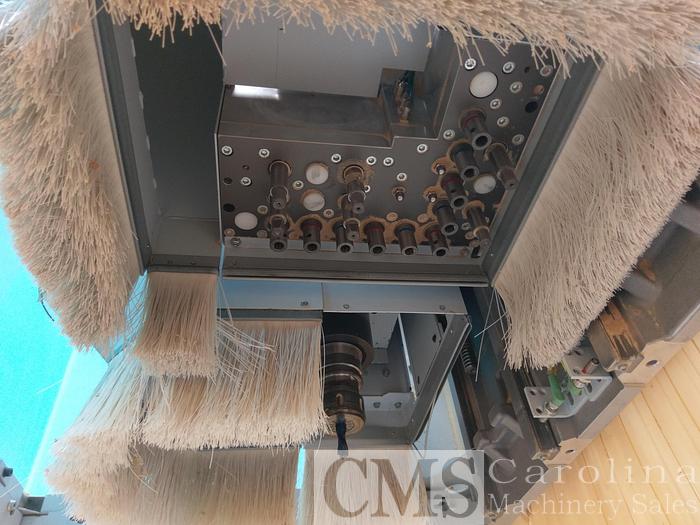

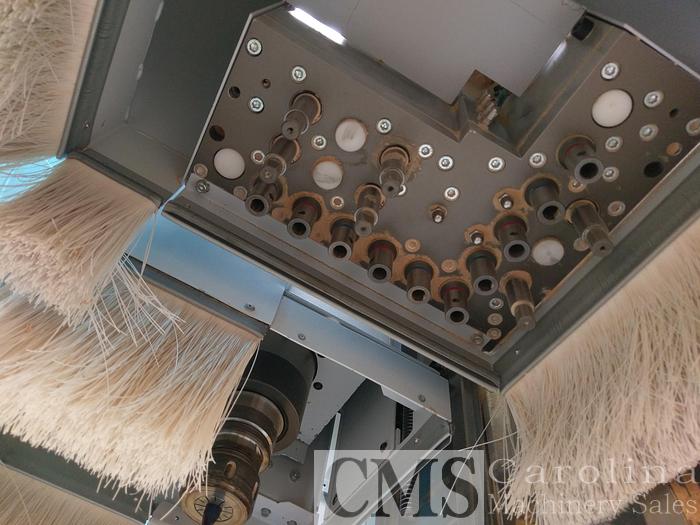

  • Number of vertical drilling spindles 10
  • Vertical drilling spindle power 1.5 kW
  • Vertical drilling spindle speed 1,500 to 7,500 rpm

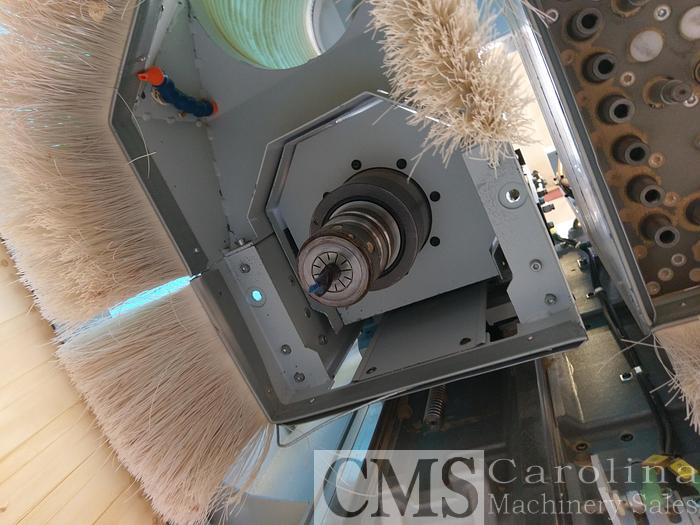

  • ATC router spindle power (power constant from 9000 rpm to 18000 rpm) 9.0 kW; 12.0 HP
  • ATC router spindle speed 1,200 to 24,000 rpm
  • Tool magazine capacity 8 tools
  • HSK63 tool holders supplied 2
  • Collets for HSK63 tool holders 2

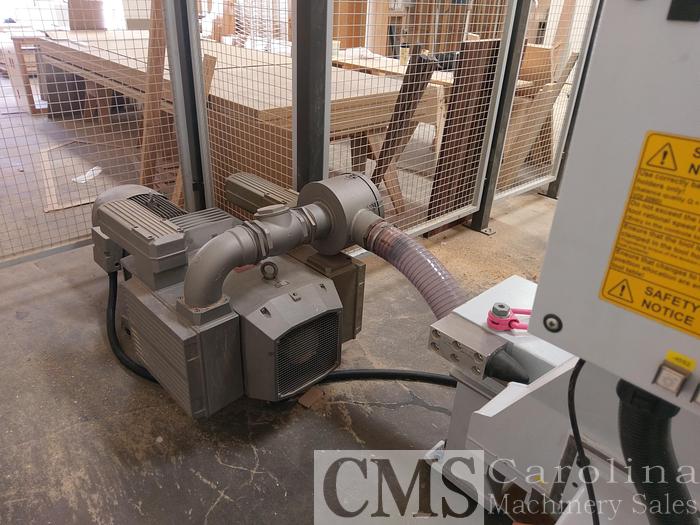

  • Vacuum pump capacity 1×500 M3/hr
  • Working length 3700 mm/145.6
  • Working width 1550 mm/61.02
  • Max. drilling depth for through holes 55 mm/2.166
  • Axis stroke/positioning speed
  • X-axis 4750 mm/50 M/min
  • Y-axis 1960 mm/40 M/min
  • Z-axis 230 mm/20 M/min
