2006 Thermwood CS 45 CNC 5 X 10

5'X10' THERMWOOD MODEL CS45 3-AXIS CNC ROUTER

Year 2006

460 Volt three phase, 60 hz 32 amps

Fixed table moving gantry router design

Table size 60" x 120"

All axis ball screw drive with feed rates up to 1,200 inches/min

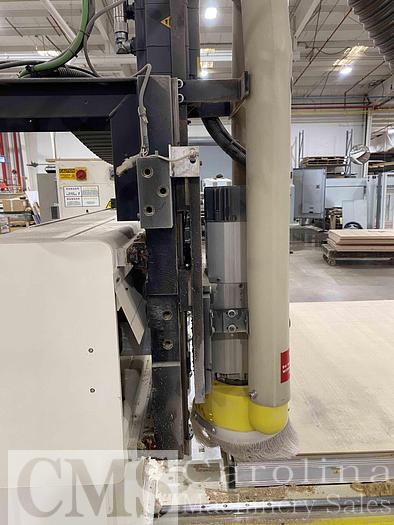

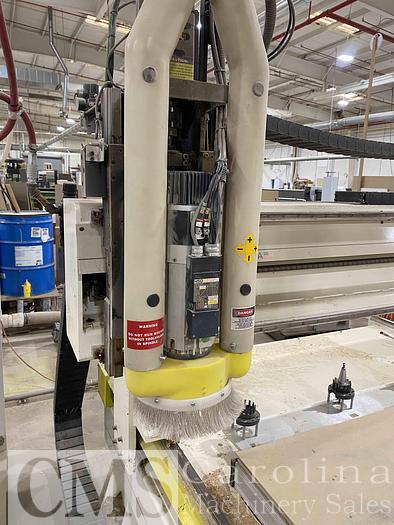

(1) Vertical HSD air cooled Electro-router spindle

10 Hp inverter driven motor with spindle speed range 3,000 to 24,000 rpm

ISO-30 spindle mount

(1) 5 space at the head ATC (Automatic Tool Changer)

Max tool diameter 2" with a max 3" tool length at front ATC

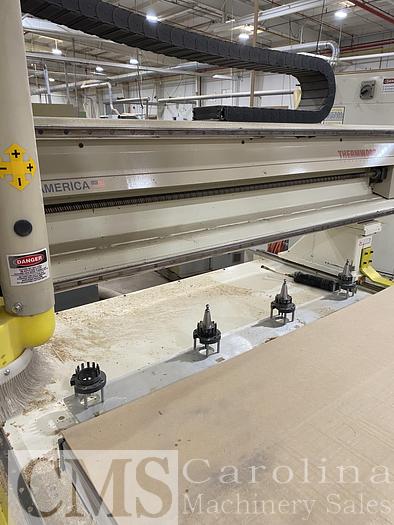

(1) Rear table mounted 7 space ATC (Automatic Tool Changer)

Automatic tool length measurement pad mounted on the right hand carriage

(The pad automatically measure the tool length in the router head)

Automatic machine lubrication system

Heavy duty ball screws drive system with THK linear bearings

Table work height 31-1/2"

Side and front pneumatic pop up location bars

Hand held machine positioning and controller unit

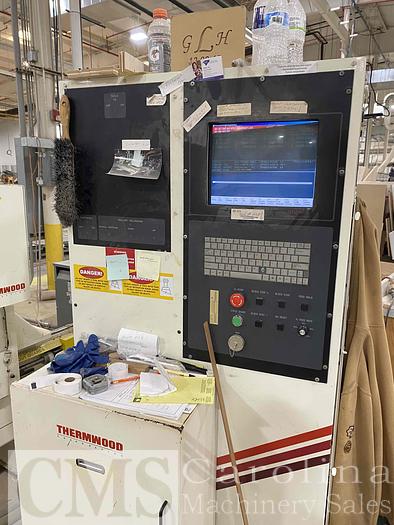

Freestanding computer and printer control cabinet

Color display with keyboard

Air conditioned electrical cabinet system

Mircosoft Windows XP Professional computer operating system

Thermwood Gen2 Super Control

Intel Pentium 4CPU 3.00 Ghz

512 MB of RAM

(6) ISO-30 tool holders with 1/8", 1/4", 5 mm, 3/8" and 1/2" collets

The software and controls are preloaded into the machine
