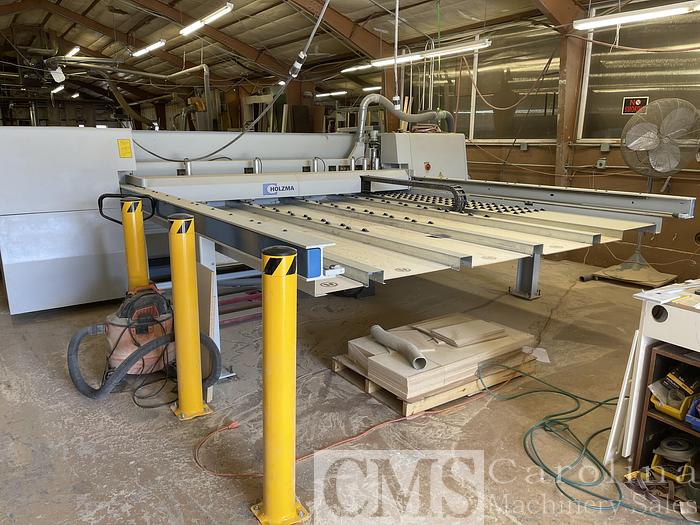

2004 Holzma HPP 280/31/31





ModelHPP 280/31/31
Stock Number009649


Specifications from manufacturer:

126" (3,200 mm) Cutting length & pull-back; 2.8" (72 mm) saw blade projection, 10 HP (7.5 kW) - 4,700 RPM main saw motor, 350 mm main saw dia;

1.5 HP (1.1 kW) - 5,100 RPM scoring motors, 200 mm scoring saw dia.; NC controlled scoring saw adjustment from "CADMATIC" control.

Saw carriage: Variable travel speed from 16 - 262 FPM (5 - 80 MPM), constant return of 262 FPM (80 MPM).

Pusher Fence:

Electronically controlled overhead program fence, rack & pinion driven on both sides; forward speed capacity from 0 - 197 FPM (0 - 60 MPM);

5) Gripper clamps, 1st (3) clamps with (2) fingers & others with (1) finger; clamps open up to 3" (76 mm).

Operator & Machine Control:

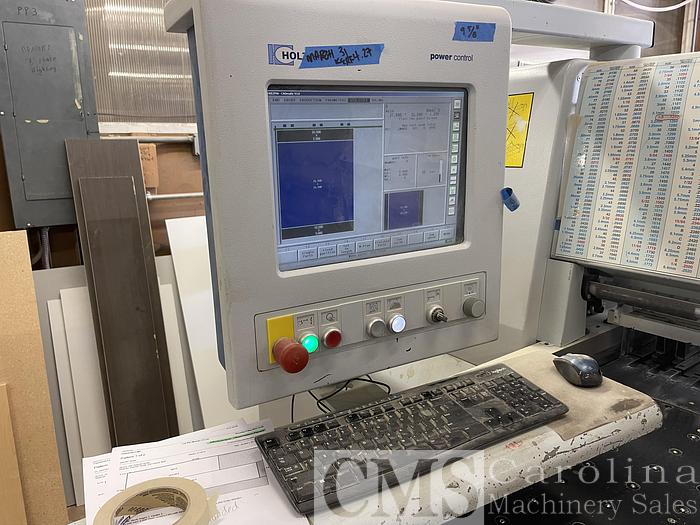

PC Front-End with: HOLZMA "CADMATIC 3" Power Control + Windows Operating System "designed for industrial environments"; virtually unlimited cutting dimensions memory;

17" TFT Flat screen monitor, DVD drive, RS-232 port, USB port, analog modem, online operation from an office PC is possible.

"Real-Time" Cutting sequences with 2-D moving graphics; high-tech error diagnostics with true photos & video clips for immediate identification of the source problem.

Complete with:

HOLZMA Patent: Automatic "CENTRIC" full cutting length side pressure device with front & rear forks holding ripped strips squarely against the right angle fence (reduces cycle time ...25% compared to conventional systems).

"POWER-LOCK" quick-change saw blade system; (3) front air floatation tables 72" x 25-1/2" (1,829 x 648 mm).


It comes with 3 sets of triple chip w/scoring blades, and 1 plywood blade

Operating manuals included
