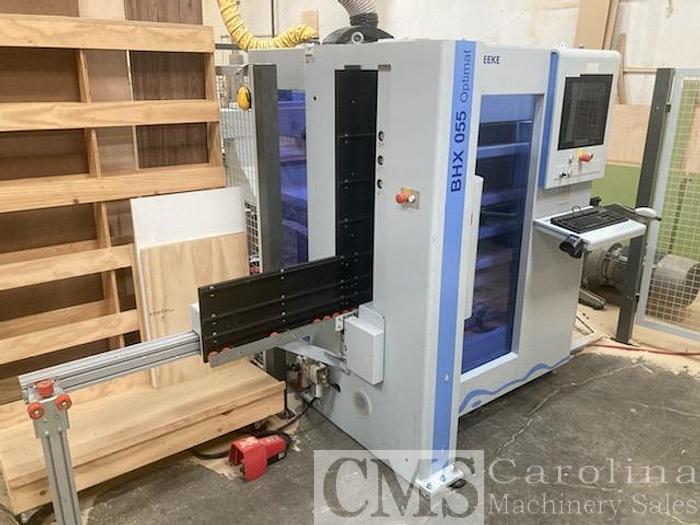

2011 Weeke BHX 055 vertical machining Center

Location

California

orCall 704-288-1904

Specifications

ManufacturerWeeke
ModelBHX 055 vertical machining Center
Year2011
Stock Number009571

Description

WEEKE BHX 055 CNC MACHINING CENTER (VERTICAL W/ATC):


Added/included: Disconnect, a transformer, a new y axis screw, label scanning, and 3d simulator.


-- Specifications:

Flexible "Vertical" Machining Center that uses less than 5 meter² of valuable floor space in addition to an innovative panel handling system.

-- Working Cap.:

Max. workable part size for "X" axis is 120" (3,050 mm), "Y" axis 33.4" (850 mm), and max. part thickness 2.4" (60 mm).

Min. worktable part size for "X" axis is 7.8" (200 mm), "Y" axis 2.7" (70 mm), min. part thickness of .47" (12 mm). Automatic infeed & outfeed from the LH or RH side.

-- Positioning Speed:

The BHX 055 can reach movement speeds of 164 FPM (50 MPM) in "X" & "Y" axis & 50 FPM (15 MPM) in "Z" axis with total safety, providing an unmatched working capacity.

-- Boring unit:

(1) 3 HP (2.3 kW), variable speed from 1,500 - 7,500 RPM motor, (13) independent spindles with (8) spindles in "X" axis & (5) spindles in "Y" axis.

(6) Horizontal spindles with (2+2) in "X" axis & (1+1) in "Y" axis;

Boring block has "QUICK CHANGE" vertical spindle system,


Weeke "POWER CONTROL PC 85" + Windows + WoodWOP 6.0 operating system; "IntelCore 2 DUO" Processor;

17" TFT Monitor;
