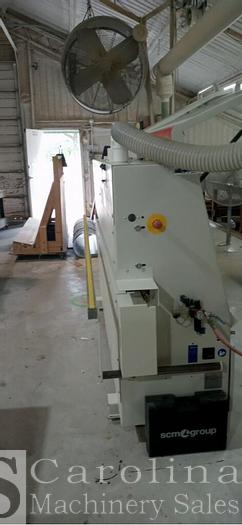

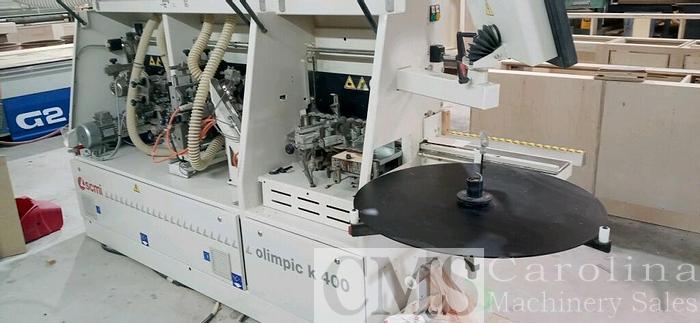

2013 SCMI Olimpic K400 Edgebander

SCMI Olimpic K400 Edgebander

.4 mm to 6 mm edgebanding thickness capacity

3 mm guillotine capacity

36 FPM feed speed

Panel height: 3/8" min to 2-1/8" max

Minimum panel length: 5-1/2"

Minimum panel width: 2-3/8"

Minimum distance between panels: 20"

Teflon coated glue pot with 8 to 10 minute warm up time

(1) powered and (2) idle pressure rollers

End trimming station with (2) 2.5 HP motors with auto tilt from the controller

Top and bottom trimming station with (2) .7 HP motors at 12,000 RPM and tilting to 25 degrees

Top and bottom unit also has pneumatic positioning with 2 presets
