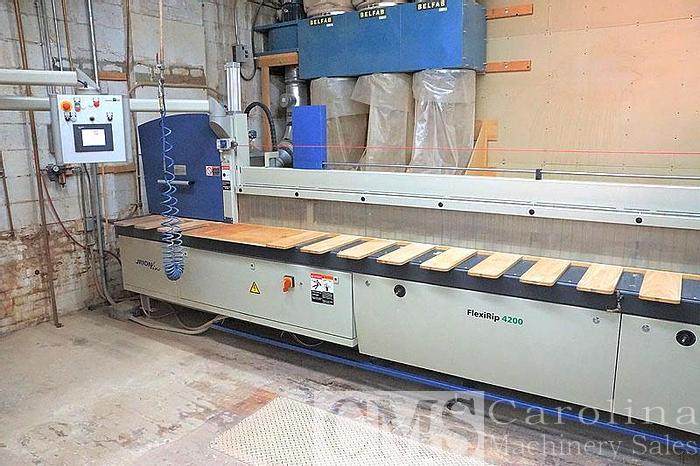

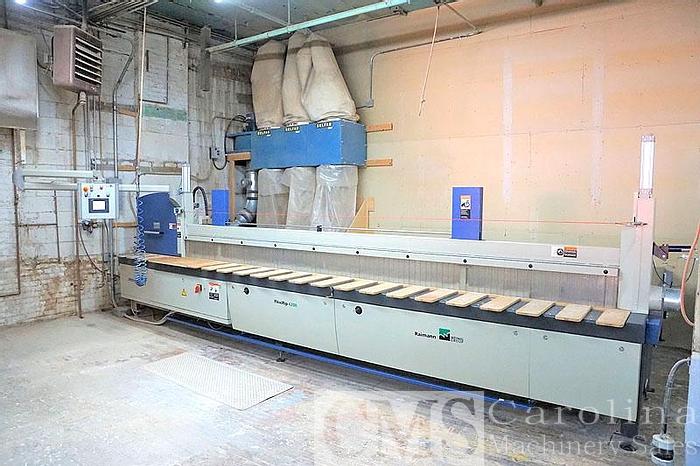

2004 Weinig Raimann FlexiRip 4200

Location

Northeast

orCall 704-288-1904

Specifications

ManufacturerWeinig Raimann
ModelFlexiRip 4200
Year2004
Stock Number009562

Description

Model FlexiRip 4200

Year 2004

230 Volt three phase, 60 hz, 54 amps

Machine weight 4035 Lbs

Max cutting width 4200 mm (165.3")

Cutting height (with 450 mm blade) 120 mm (4.72")

Cutting height (with 550 mm blade) 170 mm (6.69")

Max blade diameter 550 mm (21.6")

Saw arbor diameter 30 mm (1.18")

Saw arbor speed 2900 rpm

Cutting speed 3 to 262 ft/min

Rear fence adjustment 0 to 2100 mm (0 to 82.6")

Table work height 900 mm (35.4")

11 Kw (15 Hp), 230 volt three phase saw drive motor

Pneumatic pressure beam

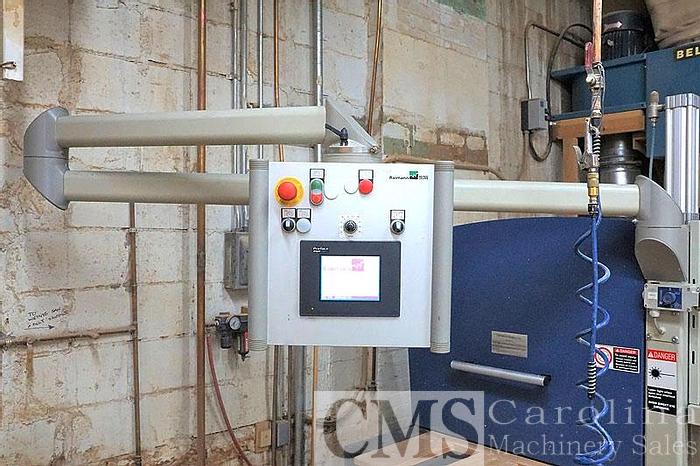

Swing arm left hand operator control station

Pro-Face electronic digital touch screen interface display

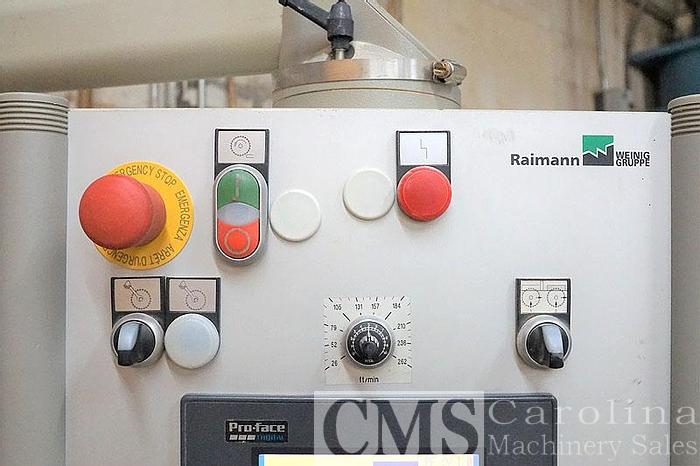

Push button master controls

Laser center guide light

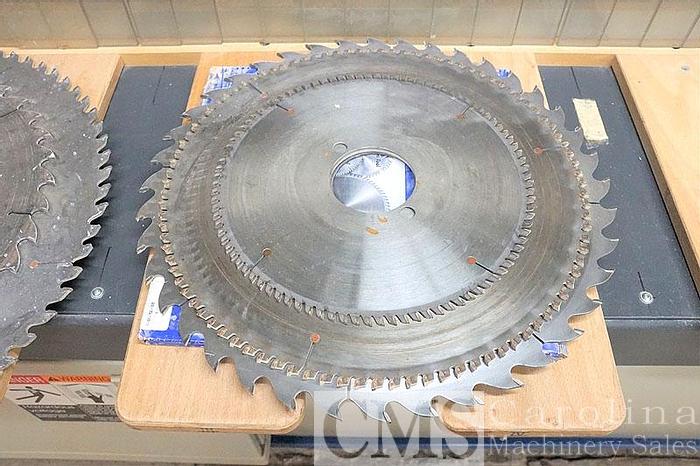

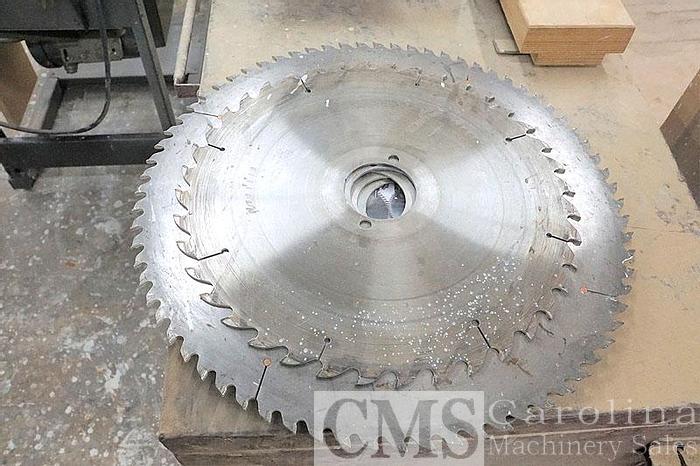

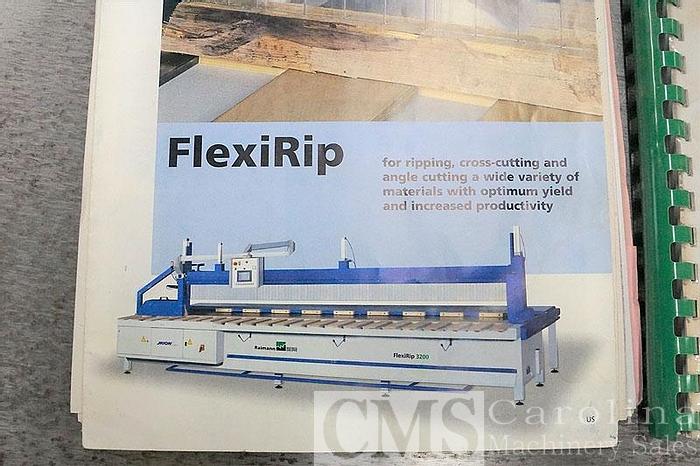

Includes the machine operator’s manuals and spare circular carbide tipped saw blades

S/N 04713
