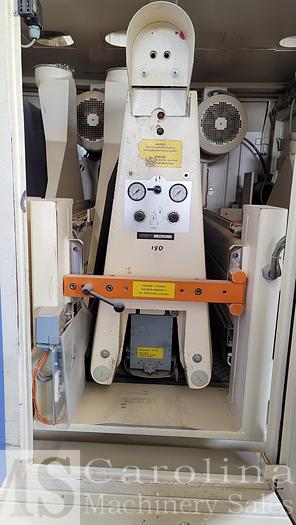

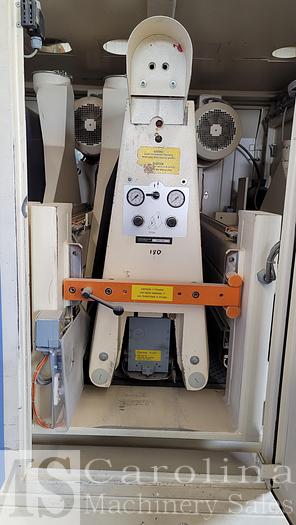

2001 Heesemann LSM 8

Location

Midwest

orCall 704-288-1904

Specifications

ManufacturerHeesemann
ModelLSM 8
Year2001
Stock Number009469

Description

·      1 CROSS SANDING -- BELT DIM 189” X 6”

1.    SANDING SPEEDS 12M &* 24M/MIN VIA two speed motor.

2.    DRIVE POWER 18/24 hp.



·      1 CROSS SANDING -- BELT DIM 189” X 6”

1.    SANDING SPEEDS 12M &* 24M/MIN VIA two speed motor.

2.    DRIVE POWER 18/24 hp.



·      1 LONGITUDINAL SANDING BELTS UNITS

1.    BELT DIM----- 103” X 54”

2.    SANDING SPEED 12M &* 24 m/s VIA two speed motor..

3.    DRIVE POWER 18/24 hp

4.    Reversible sanding direction



·      1 LONGITUDINAL SANDING BELTS UNITS

1.    BELT DIM----- 103” X 54”

2.    SANDING SPEED 12M &* 24 m/s VIA two speed motor..

3.    DRIVE POWER 18/24 hp

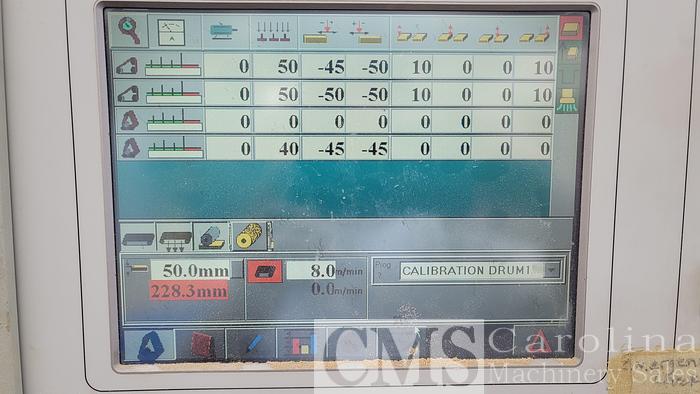

4 PRESSURE BEAM WITH COMPUTER CONTROLLED SELECTIVE PRESSURE REGULATION SYSTEM.



 WITH INFINITE PRESSURE MATCHING OF INDIVIDUAL PRESSURE ELEMENTS FOR OPTIONAL MULTI TRACK FEEDING. 16MM CONTROL ROLLER SPACING , WORK PIECE TOLERANCE COMPENSATION UP TO A MIN. OF 2MM.    THE CORRECT POINT IN TIME FOR THE DEPLOYMENT OF THE PRESSURE BARS IS DETERMINED AUTOMATICALLY BY AN ELECTRONIC LINE CONTROL IN DEPENDENCE OF THE FEED SPEED.



BRUSH ROLL UNIT



CENTRALY ADJUSTABLE IN HEIGHT INCLUDING EXHAUST HOOD AND PRESS ON ROLL.



  • DIAMETER----------------------------------------------- 220MM
  • DRIVE POWER---------------------------------------- 2 hp
  • BRISTLE TRIMMING -------------------------------- FIBRE
  • VOLTS---------------------------------------------------- 480V-- 60 C/S



WORK PIECE SUCTION DEVICE



 FOR SAFE TRANSPORT OF WORK PIECE SHORTER THAN 750MM IN FEED DIRECTION INCLUDING INTEGRATED VENTILATOR.
