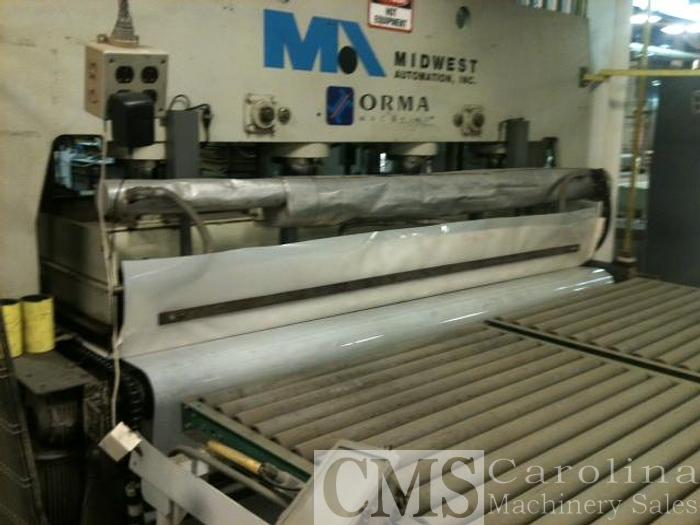

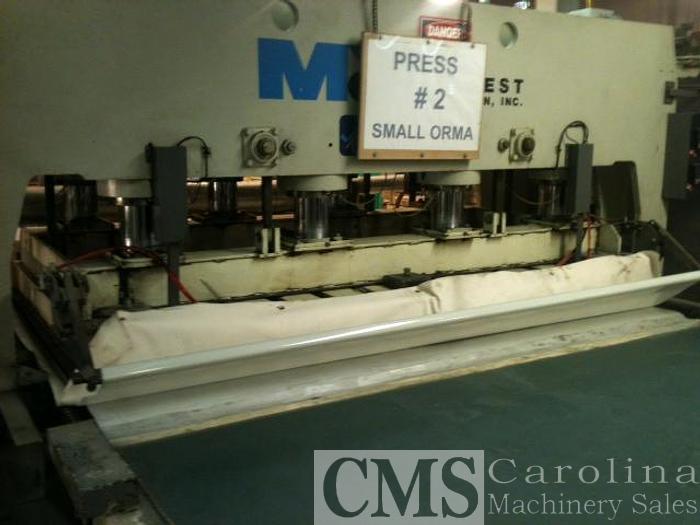

1999 Orma PCC 2500-1600 5 x 8 Side loading feedthrough

Location

Southeast

orCall 704-288-1904

Specifications

ManufacturerOrma
ModelPCC 2500-1600 5 x 8 Side loading feedthrough
Year1999
Stock Number009437

Description

Features

• 5 Ft x 8 Ft Platen

• Loading on the 8 Ft Dimension

• Feed Through Design with Layup Table & Outfeed Conveyors



Specifications & Configuration

• Platen size 2500mm x 1600mm (98.4 inch x 62.9 inch)

• Side load, feed through design

• (8) upstroke hydraulic cylinders approximately 150mm in diameter

• Self-contain hydraulic pump

• Approximately 100 PSI (to be verified)

• Steam to Hot oil heat exchanger (can be replaced by independent heater at additional cost)

• Layup infeed table for automatic feed

• Gravity outfeed conveyors
